CPU implementation of Layer Normalization using abstract TensorDataType API. More...

Inheritance diagram for Mila::Dnn::Compute::CpuLayerNormOp:

[legend]

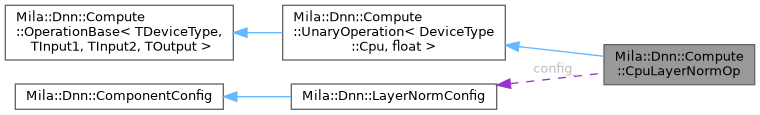

Collaboration diagram for Mila::Dnn::Compute::CpuLayerNormOp:

[legend]

Public Types
using	CpuExecutionContext = ExecutionContext<DeviceType::Cpu>
using	MR = CpuMemoryResource
using	TensorType = Tensor<TensorDataType::FP32, MR>
using	UnaryOperationBase = UnaryOperation<DeviceType::Cpu, TensorDataType::FP32>
Public Types inherited from Mila::Dnn::Compute::UnaryOperation< DeviceType::Cpu, TensorDataType::FP32 >
using	MR
using	TensorInputType
using	TensorOutputType
Public Types inherited from Mila::Dnn::Compute::Operation< TDeviceType, TInput >
using	DataTypeTraits

Public Member Functions
	CpuLayerNormOp (IExecutionContext *context, const LayerNormConfig &config)
void	backward (const ITensor &input, const ITensor &output_grad, ITensor &input_grad) const override
	Backward pass - compute gradients for input and parameters.
void	build (const BuildContext &config) override
	Build the operation for a concrete input shape.
void	forward (const ITensor &input, ITensor &output) const override
	Forward pass - normalize input and apply learned affine transform.
std::string	getName () const override
	Human-readable operation name.
OperationType	getOperationType () const override
	Operation type identifier.
void	setGradients (ITensor weight_grad, ITensor bias_grad) override
	Set parameter gradient tensor references for training.
void	setParameters (ITensor weight, ITensor bias) override
	Set parameter tensor references (module remains owner).
Public Member Functions inherited from Mila::Dnn::Compute::UnaryOperation< DeviceType::Cpu, TensorDataType::FP32 >
virtual	~UnaryOperation ()=default
Public Member Functions inherited from Mila::Dnn::Compute::Operation< TDeviceType, TInput >
virtual	~Operation ()=default
virtual void	clearGradients () noexcept
	Clear any cached gradient pointers held by the operation.
virtual TensorDataType	getDataType () const
	Tensor data type for this operation.
virtual DeviceType	getDeviceType () const
	Device type for this operation.
virtual std::size_t	getStateMemorySize () const
	Returns the number of bytes of state memory allocated by this operation.
virtual bool	isBuilt () const
	Whether build() completed successfully for a concrete input shape.
virtual bool	isEvalMode () const
	Query whether operation is configured for training.
virtual void	setTrainingMode (TrainingMode training_mode)
	Configure operation training-mode behavior.

Private Member Functions
void	allocateStatisticsTensors ()
	Allocate backend-owned statistics tensors (mean and reciprocal std dev).
void	computeAxisPartitioning (const shape_t &input_shape)
	Compute axis partitioning for statistics computation.
void	validateInputShape (const shape_t &input_shape) const
	Validate input shape matches configuration.
void	validateShapeConsistency (const shape_t &shape) const
	Validate input shape consistency with cached build-time dimensions.

Private Attributes
int64_t	axis_ { -1 }
float *	bias_ { nullptr }
float *	bias_grad_ { nullptr }
LayerNormConfig	config_
IExecutionContext *	context_ { nullptr }
int64_t	dim_size_ { 1 }
int64_t	expected_slices_ { 0 }
int64_t	inner_size_ { 1 }
std::shared_ptr< TensorType >	mean_ { nullptr }
int64_t	outer_size_ { 1 }
std::shared_ptr< TensorType >	rstd_ { nullptr }
float *	weight_ { nullptr }
float *	weight_grad_ { nullptr }

Additional Inherited Members
Static Public Attributes inherited from Mila::Dnn::Compute::Operation< TDeviceType, TInput >
static constexpr TensorDataType	data_type
static constexpr DeviceType	device_type
Static Protected Member Functions inherited from Mila::Dnn::Compute::UnaryOperation< DeviceType::Cpu, TensorDataType::FP32 >
static const TensorInputType &	asInputTensor (const ITensor &t)
static TensorOutputType &	asOutputTensor (ITensor &t)
Protected Attributes inherited from Mila::Dnn::Compute::Operation< TDeviceType, TInput >
bool	is_built_
TrainingMode	training_mode_

Detailed Description

CPU implementation of Layer Normalization using abstract TensorDataType API.

Uses proper Tensor instances for all internal state including statistics (mean/rstd), ensuring architectural consistency with the rest of the framework.

Member Typedef Documentation

◆ CpuExecutionContext

using Mila::Dnn::Compute::CpuLayerNormOp::CpuExecutionContext = ExecutionContext<DeviceType::Cpu>

◆ MR

using Mila::Dnn::Compute::CpuLayerNormOp::MR = CpuMemoryResource

◆ TensorType

using Mila::Dnn::Compute::CpuLayerNormOp::TensorType = Tensor<TensorDataType::FP32, MR>

◆ UnaryOperationBase

using Mila::Dnn::Compute::CpuLayerNormOp::UnaryOperationBase = UnaryOperation<DeviceType::Cpu, TensorDataType::FP32>

Constructor & Destructor Documentation

◆ CpuLayerNormOp()

Mila::Dnn::Compute::CpuLayerNormOp::CpuLayerNormOp	(	IExecutionContext *	context,
		const LayerNormConfig &	config )

inline

Member Function Documentation

◆ allocateStatisticsTensors()

void Mila::Dnn::Compute::CpuLayerNormOp::allocateStatisticsTensors ( )

inlineprivate

Allocate backend-owned statistics tensors (mean and reciprocal std dev).

Here is the caller graph for this function:

◆ backward()

void Mila::Dnn::Compute::CpuLayerNormOp::backward	(	const ITensor &	input,
		const ITensor &	output_grad,
		ITensor &	input_grad ) const

inlineoverridevirtual

Backward pass - compute gradients for input and parameters.

Parameter gradients are written directly to the pointers provided via setGradients() (weight_grad_, bias_grad_).

Implements Mila::Dnn::Compute::UnaryOperation< DeviceType::Cpu, TensorDataType::FP32 >.

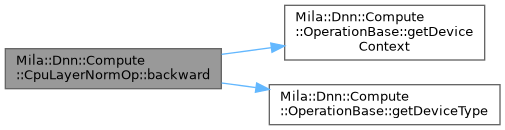

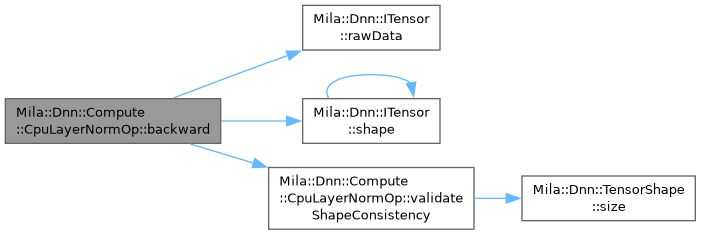

Here is the call graph for this function:

◆ build()

void Mila::Dnn::Compute::CpuLayerNormOp::build ( const BuildContext & config )

inlineoverridevirtual

Build the operation for a concrete input shape.

Requires:

setParameters() has already been called so weight/bias pointers are available
configuration (axis or normalized_shape) is final

Allocates backend-owned tensor storage for mean/rstd statistics sized to the outer grouping implied by the input shape and normalized axes.

Reimplemented from Mila::Dnn::Compute::Operation< TDeviceType, TInput >.

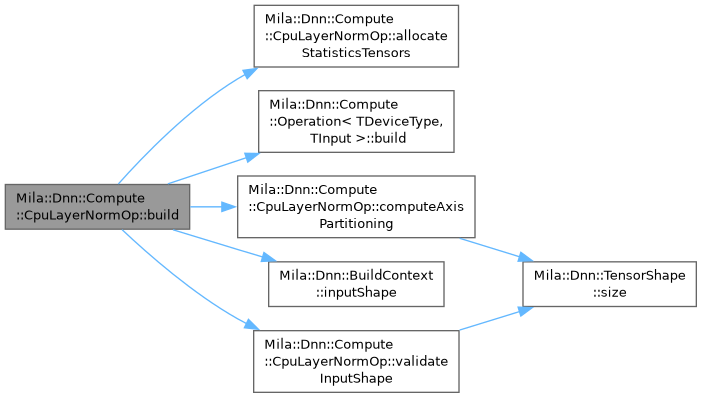

Here is the call graph for this function:

◆ computeAxisPartitioning()

void Mila::Dnn::Compute::CpuLayerNormOp::computeAxisPartitioning ( const shape_t & input_shape )

inlineprivate

Compute axis partitioning for statistics computation.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ forward()

void Mila::Dnn::Compute::CpuLayerNormOp::forward	(	const ITensor &	input,
		ITensor &	output ) const

inlineoverridevirtual

Forward pass - normalize input and apply learned affine transform.

Uses cached parameter raw pointers (weight_, bias_) and backend-owned mean/rstd tensor storage allocated during build().

Implements Mila::Dnn::Compute::UnaryOperation< DeviceType::Cpu, TensorDataType::FP32 >.

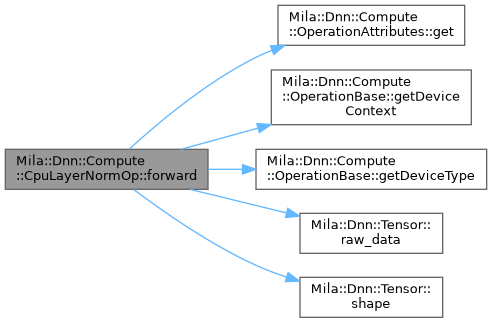

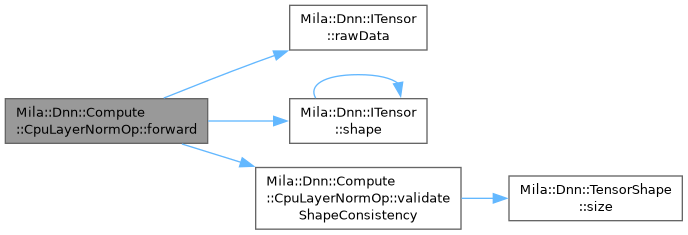

Here is the call graph for this function:

◆ getName()

std::string Mila::Dnn::Compute::CpuLayerNormOp::getName ( ) const

inlineoverridevirtual

Human-readable operation name.

Implements Mila::Dnn::Compute::Operation< TDeviceType, TInput >.

◆ getOperationType()

OperationType Mila::Dnn::Compute::CpuLayerNormOp::getOperationType ( ) const

inlineoverridevirtual

Operation type identifier.

Implements Mila::Dnn::Compute::Operation< TDeviceType, TInput >.

◆ setGradients()

void Mila::Dnn::Compute::CpuLayerNormOp::setGradients	(	ITensor *	weight_grad,
		ITensor *	bias_grad )

inlineoverridevirtual

Set parameter gradient tensor references for training.

The operation caches native gradient pointers for hot-path write access during backward(). Weight gradient is required; bias gradient is bound only when the LayerNorm config indicates a bias is present.

Parameters

weight_grad	Gradient tensor for weight parameter
bias_grad	Gradient tensor for bias parameter (optional based on config)

Exceptions

std::invalid_argument	If weight_grad is null
std::invalid_argument	If bias_grad is null when config requires bias

Reimplemented from Mila::Dnn::Compute::Operation< TDeviceType, TInput >.

Here is the call graph for this function:

◆ setParameters()

void Mila::Dnn::Compute::CpuLayerNormOp::setParameters	(	ITensor *	weight,
		ITensor *	bias )

inlineoverridevirtual

Set parameter tensor references (module remains owner).

The operation caches native data pointers for hot-path access. The weight tensor is required; bias is bound only when the LayerNorm config indicates a bias is present.

Note: build() requires parameters to be bound before it is called.

Reimplemented from Mila::Dnn::Compute::Operation< TDeviceType, TInput >.

Here is the call graph for this function:

◆ validateInputShape()

void Mila::Dnn::Compute::CpuLayerNormOp::validateInputShape ( const shape_t & input_shape ) const

inlineprivate

Validate input shape matches configuration.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ validateShapeConsistency()

void Mila::Dnn::Compute::CpuLayerNormOp::validateShapeConsistency ( const shape_t & shape ) const

inlineprivate

Validate input shape consistency with cached build-time dimensions.

Here is the call graph for this function:

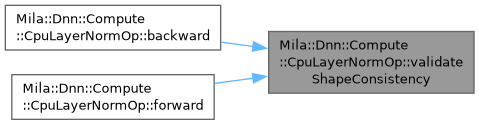

Here is the caller graph for this function:

Member Data Documentation

◆ axis_

int64_t Mila::Dnn::Compute::CpuLayerNormOp::axis_ { -1 }

private

◆ bias_

float* Mila::Dnn::Compute::CpuLayerNormOp::bias_ { nullptr }

private

◆ bias_grad_

float* Mila::Dnn::Compute::CpuLayerNormOp::bias_grad_ { nullptr }

private

◆ config_

LayerNormConfig Mila::Dnn::Compute::CpuLayerNormOp::config_

private

◆ context_

IExecutionContext* Mila::Dnn::Compute::CpuLayerNormOp::context_ { nullptr }

private

◆ dim_size_

int64_t Mila::Dnn::Compute::CpuLayerNormOp::dim_size_ { 1 }

private

◆ expected_slices_

int64_t Mila::Dnn::Compute::CpuLayerNormOp::expected_slices_ { 0 }

private

◆ inner_size_

int64_t Mila::Dnn::Compute::CpuLayerNormOp::inner_size_ { 1 }

private

◆ mean_

std::shared_ptr<TensorType> Mila::Dnn::Compute::CpuLayerNormOp::mean_ { nullptr }

private

◆ outer_size_

int64_t Mila::Dnn::Compute::CpuLayerNormOp::outer_size_ { 1 }

private

◆ rstd_

std::shared_ptr<TensorType> Mila::Dnn::Compute::CpuLayerNormOp::rstd_ { nullptr }

private

◆ weight_

float* Mila::Dnn::Compute::CpuLayerNormOp::weight_ { nullptr }

private

◆ weight_grad_

float* Mila::Dnn::Compute::CpuLayerNormOp::weight_grad_ { nullptr }

private

The documentation for this class was generated from the following file:

/__w/Mila/Mila/Mila/Src/Dnn/Compute/Devices/Cpu/Operations/CpuLayerNormOp.ixx
