CUDA implementation of Layer Normalization. More...

Inheritance diagram for Mila::Dnn::Compute::Cuda::LayerNorm::CudaLayerNormOp< TPrecision >:

[legend]

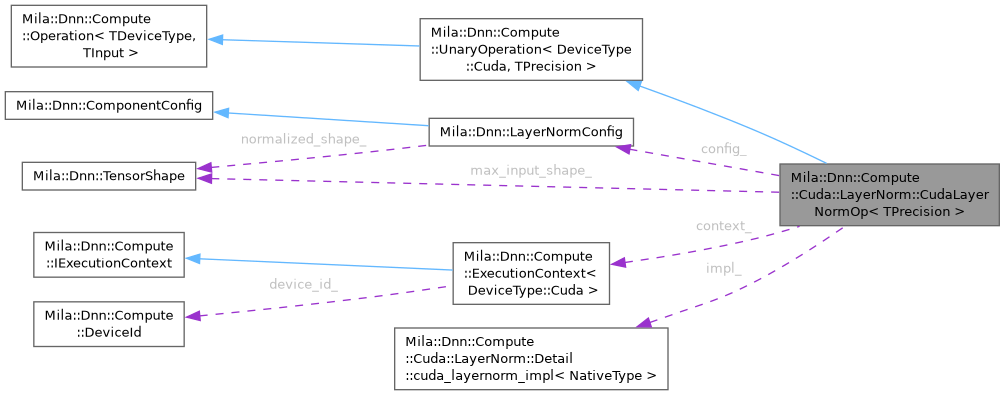

Collaboration diagram for Mila::Dnn::Compute::Cuda::LayerNorm::CudaLayerNormOp< TPrecision >:

[legend]

Public Types
using	CudaExecutionContext = ExecutionContext<DeviceType::Cuda>
using	MR = CudaDeviceMemoryResource
using	NativeType = typename Mila::Dnn::Compute::Cuda::TensorDataTypeMap<TPrecision>::device_type
using	TensorType = Tensor<TPrecision, MR>
using	UnaryOperationBase = UnaryOperation<DeviceType::Cuda, TPrecision>
Public Types inherited from Mila::Dnn::Compute::UnaryOperation< DeviceType::Cuda, TPrecision >
using	MR
using	TensorInputType
using	TensorOutputType
Public Types inherited from Mila::Dnn::Compute::Operation< TDeviceType, TInput >
using	DataTypeTraits

Public Member Functions
	CudaLayerNormOp (IExecutionContext *context, const LayerNormConfig &config)
void	backward (const ITensor &input, const ITensor &output_grad, ITensor &input_grad) const override
	Execute backward pass (hot path).
void	build (const BuildContext &config) override
	Prepare operation for execution with concrete input shape.
void	forward (const ITensor &input, ITensor &output) const override
	Execute forward pass (hot path).
const LayerNormConfig &	getConfig () const
std::string	getName () const override
	Human-readable operation name.
OperationType	getOperationType () const override
	Operation type identifier.
void	setGradients (ITensor weight_grad, ITensor bias_grad) override
	Bind component-owned parameter gradient tensors for training.
void	setParameters (ITensor weight, ITensor bias) override
	Bind component-owned parameter tensors.
Public Member Functions inherited from Mila::Dnn::Compute::UnaryOperation< DeviceType::Cuda, TPrecision >
virtual	~UnaryOperation ()=default
Public Member Functions inherited from Mila::Dnn::Compute::Operation< TDeviceType, TInput >
virtual	~Operation ()=default
virtual void	clearGradients () noexcept
	Clear any cached gradient pointers held by the operation.
virtual TensorDataType	getDataType () const
	Tensor data type for this operation.
virtual DeviceType	getDeviceType () const
	Device type for this operation.
virtual std::size_t	getStateMemorySize () const
	Returns the number of bytes of state memory allocated by this operation.
virtual bool	isBuilt () const
	Whether build() completed successfully for a concrete input shape.
virtual bool	isEvalMode () const
	Query whether operation is configured for training.
virtual void	setTrainingMode (TrainingMode training_mode)
	Configure operation training-mode behavior.

Private Member Functions
void	computeRuntimePartition_ (const shape_t &input_shape, int64_t &norm_axis, int &outer_size, int &inner_size, int &norm_dim, int64_t &num_slices, int64_t &normalized_features) const
void	validateNormalizedShape_ (const shape_t &input_shape) const

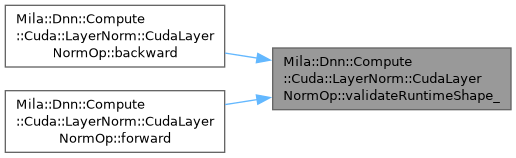

void	validateRuntimeShape_ (const shape_t &input_shape) const

Private Attributes
NativeType *	bias_ { nullptr }
NativeType *	bias_grad_ { nullptr }
LayerNormConfig	config_
CudaExecutionContext *	context_
Detail::cuda_layernorm_impl< NativeType >	impl_
int	max_inner_size_ { 0 }
shape_t	max_input_shape_
int	max_norm_dim_ { 0 }
dim_t	max_num_slices_ { 0 }
int	max_outer_size_ { 0 }
NativeType *	mean_ { nullptr }
std::shared_ptr< TensorType >	mean_tensor_
int64_t	norm_axis_ { -1 }
NativeType *	rstd_ { nullptr }
std::shared_ptr< TensorType >	rstd_tensor_
NativeType *	weight_ { nullptr }
NativeType *	weight_grad_ { nullptr }
int64_t	weight_size_ { 0 }

Additional Inherited Members
Static Public Attributes inherited from Mila::Dnn::Compute::Operation< TDeviceType, TInput >
static constexpr TensorDataType	data_type
static constexpr DeviceType	device_type
Static Protected Member Functions inherited from Mila::Dnn::Compute::UnaryOperation< DeviceType::Cuda, TPrecision >
static const TensorInputType &	asInputTensor (const ITensor &t)
static TensorOutputType &	asOutputTensor (ITensor &t)
Protected Attributes inherited from Mila::Dnn::Compute::Operation< TDeviceType, TInput >
bool	is_built_
TrainingMode	training_mode_

Detailed Description

template<TensorDataType TPrecision>
requires PrecisionSupportedOnDevice<TPrecision, DeviceType::Cuda>
class Mila::Dnn::Compute::Cuda::LayerNorm::CudaLayerNormOp< TPrecision >

CUDA implementation of Layer Normalization.

Normalizes activations along a specified axis by computing mean and variance, then applying an affine transformation with learnable weight and bias parameters.

Design philosophy:

Two-phase initialization: build() allocates resources, forward()/backward() dispatch to kernels
Component owns weight/bias parameters, operation caches device pointers
Operation owns ephemeral forward-pass statistics (mean/rstd) required for backward
All dimension computation happens once in build() for zero-overhead hot-path execution

Template Parameters

TPrecision Abstract tensor precision (FP32, FP16, etc.)

Member Typedef Documentation

◆ CudaExecutionContext

template<TensorDataType TPrecision>

using Mila::Dnn::Compute::Cuda::LayerNorm::CudaLayerNormOp< TPrecision >::CudaExecutionContext = ExecutionContext<DeviceType::Cuda>

◆ MR

template<TensorDataType TPrecision>

using Mila::Dnn::Compute::Cuda::LayerNorm::CudaLayerNormOp< TPrecision >::MR = CudaDeviceMemoryResource

◆ NativeType

template<TensorDataType TPrecision>

using Mila::Dnn::Compute::Cuda::LayerNorm::CudaLayerNormOp< TPrecision >::NativeType = typename Mila::Dnn::Compute::Cuda::TensorDataTypeMap<TPrecision>::device_type

◆ TensorType

template<TensorDataType TPrecision>

using Mila::Dnn::Compute::Cuda::LayerNorm::CudaLayerNormOp< TPrecision >::TensorType = Tensor<TPrecision, MR>

◆ UnaryOperationBase

template<TensorDataType TPrecision>

using Mila::Dnn::Compute::Cuda::LayerNorm::CudaLayerNormOp< TPrecision >::UnaryOperationBase = UnaryOperation<DeviceType::Cuda, TPrecision>

Constructor & Destructor Documentation

◆ CudaLayerNormOp()

template<TensorDataType TPrecision>

Mila::Dnn::Compute::Cuda::LayerNorm::CudaLayerNormOp< TPrecision >::CudaLayerNormOp	(	IExecutionContext *	context,
		const LayerNormConfig &	config )

inline

Here is the call graph for this function:

Member Function Documentation

◆ backward()

template<TensorDataType TPrecision>

void Mila::Dnn::Compute::Cuda::LayerNorm::CudaLayerNormOp< TPrecision >::backward	(	const ITensor &	input,
		const ITensor &	output_grad,
		ITensor &	input_grad ) const

inlineoverridevirtual

Execute backward pass (hot path).

Computes input gradient and accumulates parameter gradients using forward-pass statistics cached during forward().

Parameters

input	Original forward-pass input (required for gradient computation)
output_grad	Gradient of loss with respect to output
input_grad	Gradient of loss with respect to input (computed)

Implements Mila::Dnn::Compute::UnaryOperation< DeviceType::Cuda, TPrecision >.

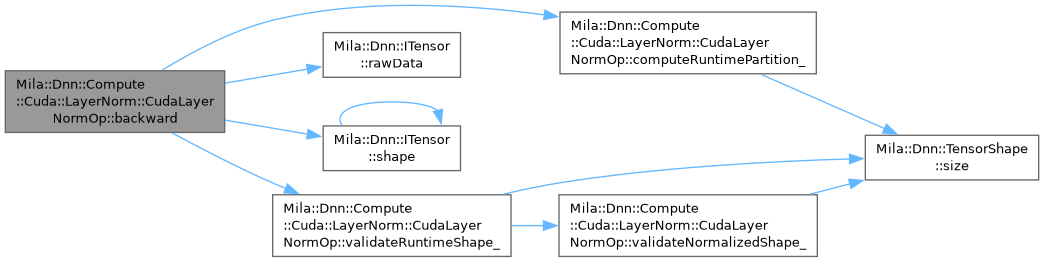

Here is the call graph for this function:

◆ build()

template<TensorDataType TPrecision>

void Mila::Dnn::Compute::Cuda::LayerNorm::CudaLayerNormOp< TPrecision >::build ( const BuildContext & config )

inlineoverridevirtual

Prepare operation for execution with concrete input shape.

Cold-path initialization: computes normalization axis, partitions tensor dimensions, and allocates forward-pass statistics storage.

Dimension partitioning:

norm_axis: The axis along which normalization is applied
outer_size: Product of all dimensions before norm_axis
inner_size: Product of all dimensions after norm_axis
norm_dim: Size of the dimension at norm_axis

Example: For shape [2, 3, 4, 5] with axis=2:

norm_axis = 2
outer_size = 2 * 3 = 6
inner_size = 5
norm_dim = 4

Forward-pass statistics (mean, rstd) are allocated with size outer_size * inner_size to store one mean/rstd value per normalized slice.

Parameters

input_shape Shape of input tensor to be normalized

Exceptions

std::runtime_error	If parameters not bound via setParameters()
std::invalid_argument	If input shape incompatible with configuration
std::invalid_argument	If computed normalization axis is out of range

Note: After build(), forward() and backward() become pure dispatch with zero overhead

Reimplemented from Mila::Dnn::Compute::Operation< TDeviceType, TInput >.

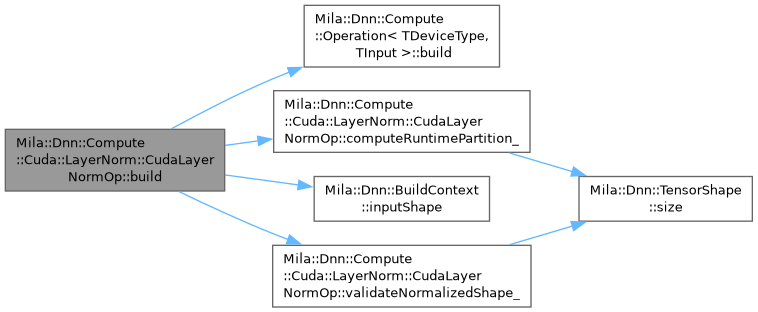

Here is the call graph for this function:

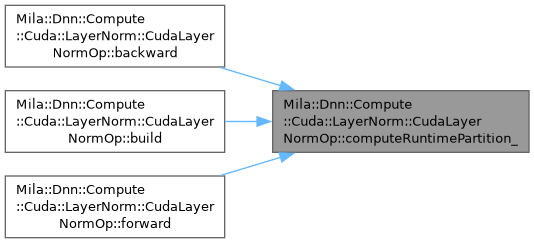

◆ computeRuntimePartition_()

template<TensorDataType TPrecision>

void Mila::Dnn::Compute::Cuda::LayerNorm::CudaLayerNormOp< TPrecision >::computeRuntimePartition_	(	const shape_t &	input_shape,
		int64_t &	norm_axis,
		int &	outer_size,
		int &	inner_size,
		int &	norm_dim,
		int64_t &	num_slices,
		int64_t &	normalized_features ) const
