CUDA implementation of the Lpe (token + positional embedding) operation. More...

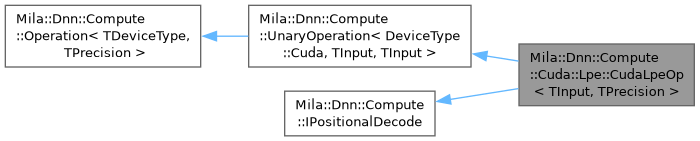

Inheritance diagram for Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >:

[legend]

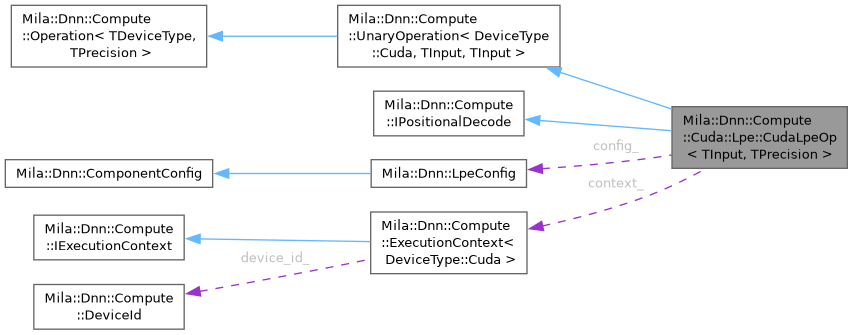

Collaboration diagram for Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >:

[legend]

Public Types
using	ConfigType = LpeConfig
using	CudaExecutionContext = ExecutionContext<DeviceType::Cuda>
using	MR = CudaDeviceMemoryResource
using	NativeType = typename Mila::Dnn::Compute::Cuda::TensorDataTypeMap<TPrecision>::device_type
using	TensorType = Tensor<TPrecision, MR>
using	UnaryOperationBase = UnaryOperation<DeviceType::Cuda, TInput, TPrecision>
Public Types inherited from Mila::Dnn::Compute::UnaryOperation< DeviceType::Cuda, TInput, TInput >
using	MR
using	TensorInputType
using	TensorOutputType
Public Types inherited from Mila::Dnn::Compute::Operation< TDeviceType, TPrecision >
using	DataTypeTraits

Public Member Functions
	CudaLpeOp (IExecutionContext *context, const LpeConfig &config)
void	backward (const ITensor &input, const ITensor &output_grad, ITensor &input_grad) const override
	Backward pass accumulating gradients into wte and wpe (hot path).
void	build (const BuildContext &config) override
	Prepare the operation for a concrete input shape (cold path).
void	decode (const ITensor &input, ITensor &output, int position) override
	Chunked prefill with explicit position offset.
void	forward (const ITensor &input, ITensor &output) const override
	Full-sequence forward pass (hot path).
std::string	getName () const override
	Human-readable operation name.
OperationType	getOperationType () const override
	Operation type identifier.
void	setGradients (ITensor wte_grad, ITensor wpe_grad) override
	Bind wte and wpe gradient tensors for training (module retains ownership).
void	setParameters (ITensor wte, ITensor wpe) override
	Bind wte and wpe parameter tensors (module retains ownership).
Public Member Functions inherited from Mila::Dnn::Compute::UnaryOperation< DeviceType::Cuda, TInput, TInput >
virtual	~UnaryOperation ()=default
Public Member Functions inherited from Mila::Dnn::Compute::Operation< TDeviceType, TPrecision >
virtual	~Operation ()=default
virtual void	clearGradients () noexcept
	Clear any cached gradient pointers held by the operation.
virtual TensorDataType	getDataType () const
	Tensor data type for this operation.
virtual DeviceType	getDeviceType () const
	Device type for this operation.
virtual std::size_t	getStateMemorySize () const
	Returns the number of bytes of state memory allocated by this operation.
virtual bool	isBuilt () const
	Whether build() completed successfully for a concrete input shape.
virtual bool	isEvalMode () const
	Query whether operation is configured for training.
virtual void	setTrainingMode (TrainingMode training_mode)
	Configure operation training-mode behavior.
Public Member Functions inherited from Mila::Dnn::Compute::IPositionalDecode
virtual	~IPositionalDecode ()=default

Private Member Functions
void	validateInputShape (const shape_t &input_shape) const

Private Attributes
int	batch_size_ { 0 }
LpeConfig	config_
CudaExecutionContext *	context_
int	embedding_dim_ { 0 }
int	seq_length_ { 0 }
NativeType *	wpe_ { nullptr }
int	wpe_embedding_dim_ { 0 }
NativeType *	wpe_grad_ { nullptr }
int	wpe_max_seq_len_ { 0 }
NativeType *	wte_ { nullptr }
int	wte_embedding_dim_ { 0 }
NativeType *	wte_grad_ { nullptr }
int	wte_vocab_size_ { 0 }

Additional Inherited Members
Static Public Attributes inherited from Mila::Dnn::Compute::Operation< TDeviceType, TPrecision >
static constexpr TensorDataType	data_type
static constexpr DeviceType	device_type
Static Protected Member Functions inherited from Mila::Dnn::Compute::UnaryOperation< DeviceType::Cuda, TInput, TInput >
static const TensorInputType &	asInputTensor (const ITensor &t)
static TensorOutputType &	asOutputTensor (ITensor &t)
Protected Attributes inherited from Mila::Dnn::Compute::Operation< TDeviceType, TPrecision >
bool	is_built_
TrainingMode	training_mode_

Detailed Description

template<TensorDataType TInput, TensorDataType TPrecision = TInput>
requires PrecisionSupportedOnDevice<TPrecision, DeviceType::Cuda>
class Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >

CUDA implementation of the Lpe (token + positional embedding) operation.

Combines a token embedding lookup (wte) with a positional embedding lookup (wpe) on CUDA devices, supporting FP32 and FP16 precision.

Design:

Two-phase initialization: build() performs all setup once; forward(), backward(), and decode() are pure hot-path dispatch with no per-call overhead.
Parameters (wte, wpe) are bound via setParameters() before build() and owned by the calling Lpe component.
Token indices (INT32) are non-differentiable; no input gradient is produced.
Implements IPositionalDecode so the owning Lpe component can call decode() with the correct absolute sequence position during KV-cache autoregressive generation, avoiding the wpe[0] bug that forward() with T=1 would produce.

Template Parameters

TInput	Data type of token index input (typically INT32).
TPrecision	Precision of embedding output (FP32 or FP16).

Member Typedef Documentation

◆ ConfigType

template<TensorDataType TInput, TensorDataType TPrecision = TInput>

using Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >::ConfigType = LpeConfig

◆ CudaExecutionContext

template<TensorDataType TInput, TensorDataType TPrecision = TInput>

using Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >::CudaExecutionContext = ExecutionContext<DeviceType::Cuda>

◆ MR

template<TensorDataType TInput, TensorDataType TPrecision = TInput>

using Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >::MR = CudaDeviceMemoryResource

◆ NativeType

template<TensorDataType TInput, TensorDataType TPrecision = TInput>

using Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >::NativeType = typename Mila::Dnn::Compute::Cuda::TensorDataTypeMap<TPrecision>::device_type

◆ TensorType

template<TensorDataType TInput, TensorDataType TPrecision = TInput>

using Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >::TensorType = Tensor<TPrecision, MR>

◆ UnaryOperationBase

template<TensorDataType TInput, TensorDataType TPrecision = TInput>

using Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >::UnaryOperationBase = UnaryOperation<DeviceType::Cuda, TInput, TPrecision>

Constructor & Destructor Documentation

◆ CudaLpeOp()

template<TensorDataType TInput, TensorDataType TPrecision = TInput>

Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >::CudaLpeOp	(	IExecutionContext *	context,
		const LpeConfig &	config )

inline

Member Function Documentation

◆ backward()

template<TensorDataType TInput, TensorDataType TPrecision = TInput>

void Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >::backward	(	const ITensor &	input,
		const ITensor &	output_grad,
		ITensor &	input_grad ) const

inlineoverridevirtual

Backward pass accumulating gradients into wte and wpe (hot path).

Token indices are non-differentiable; input_grad is unused.

Parameters

input	Token indices used in forward [B, T] (INT32).
output_grad	Upstream embedding gradient [B, T, C].
input_grad	Unused (non-differentiable input).

Implements Mila::Dnn::Compute::UnaryOperation< DeviceType::Cuda, TInput, TInput >.

◆ build()

template<TensorDataType TInput, TensorDataType TPrecision = TInput>

void Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >::build ( const BuildContext & config )

inlineoverridevirtual

Prepare the operation for a concrete input shape (cold path).

Validates parameters, caches B, T, and C for hot-path dispatch, and verifies that the sequence length fits within the positional embedding table. Must be called after setParameters() and before forward(), backward(), or decode().

Parameters

input_shape Token index input shape [B, T].

Exceptions

std::runtime_error	if parameters are not bound.
std::invalid_argument	if input shape is invalid or sequence length exceeds the positional embedding capacity.

Reimplemented from Mila::Dnn::Compute::Operation< TDeviceType, TPrecision >.

◆ decode()

template<TensorDataType TInput, TensorDataType TPrecision = TInput>

void Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >::decode	(	const ITensor &	input,
		ITensor &	output,
		int	position )

inlineoverridevirtual

Chunked prefill with explicit position offset.

Computes output[b,t,:] = wte[X[b,t],:] + wpe[position_offset + t,:] by shifting the wpe base pointer before calling the standard forward kernel. No dedicated prefill kernel is needed.

Parameters

input	Token indices [B, T] (INT32).
output	Pre-allocated embeddings [B, T, C].
position_offset	Absolute position of the first token in this chunk.

Single-token decode with an explicit sequence position (hot path).

Computes output[b,:] = wte[X[b,0],:] + wpe[position,:] for each batch element. The dispatch implementation shifts the wpe pointer to row position and calls the forward kernel with T=1, so no dedicated decode kernel is required.

Parameters

input	Single-token indices [B, 1] (INT32).
output	Pre-allocated output buffer [B, 1, C].
position	Zero-based absolute sequence position for the wpe lookup.

Implements Mila::Dnn::Compute::IPositionalDecode.

◆ forward()

template<TensorDataType TInput, TensorDataType TPrecision = TInput>

void Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >::forward	(	const ITensor &	input,
		ITensor &	output ) const

inlineoverridevirtual

Full-sequence forward pass (hot path).

For each (b, t): output[b,t,:] = wte[X[b,t],:] + wpe[t,:].

Parameters

input	Token indices [B, T] (INT32).
output	Pre-allocated embeddings [B, T, C].

Exceptions

std::runtime_error if the input shape exceeds the built maximum.

Implements Mila::Dnn::Compute::UnaryOperation< DeviceType::Cuda, TInput, TInput >.

◆ getName()

template<TensorDataType TInput, TensorDataType TPrecision = TInput>

std::string Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >::getName ( ) const

inlineoverridevirtual

Human-readable operation name.

Implements Mila::Dnn::Compute::Operation< TDeviceType, TPrecision >.

◆ getOperationType()

template<TensorDataType TInput, TensorDataType TPrecision = TInput>

OperationType Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >::getOperationType ( ) const

inlineoverridevirtual

Operation type identifier.

Implements Mila::Dnn::Compute::Operation< TDeviceType, TPrecision >.

◆ setGradients()

template<TensorDataType TInput, TensorDataType TPrecision = TInput>

void Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >::setGradients	(	ITensor *	wte_grad,
		ITensor *	wpe_grad )

inlineoverridevirtual

Bind wte and wpe gradient tensors for training (module retains ownership).

Parameters

wte_grad	Gradient buffer for wte — CUDA tensor of shape [vocab_size, C].
wpe_grad	Gradient buffer for wpe — CUDA tensor of shape [max_seq_len, C].

Exceptions

std::invalid_argument on null or non-CUDA tensors.

Reimplemented from Mila::Dnn::Compute::Operation< TDeviceType, TPrecision >.

◆ setParameters()

template<TensorDataType TInput, TensorDataType TPrecision = TInput>

void Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >::setParameters	(	ITensor *	wte,
		ITensor *	wpe )

inlineoverridevirtual

Bind wte and wpe parameter tensors (module retains ownership).

Caches native device pointers and validates tensor shapes against the configuration. Must be called before build().

Parameters

wte	Token embedding table — CUDA tensor of shape [vocab_size, C].
wpe	Positional embedding table — CUDA tensor of shape [max_seq_len, C].

Exceptions

std::invalid_argument on null, non-CUDA, or shape-mismatched tensors.

Reimplemented from Mila::Dnn::Compute::Operation< TDeviceType, TPrecision >.

◆ validateInputShape()

template<TensorDataType TInput, TensorDataType TPrecision = TInput>

void Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >::validateInputShape ( const shape_t & input_shape ) const

inlineprivate

Here is the caller graph for this function:

Member Data Documentation

◆ batch_size_

template<TensorDataType TInput, TensorDataType TPrecision = TInput>

int Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >::batch_size_ { 0 }

private

◆ config_

template<TensorDataType TInput, TensorDataType TPrecision = TInput>

LpeConfig Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >::config_

private

◆ context_

template<TensorDataType TInput, TensorDataType TPrecision = TInput>

CudaExecutionContext* Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >::context_

private

◆ embedding_dim_

template<TensorDataType TInput, TensorDataType TPrecision = TInput>

int Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >::embedding_dim_ { 0 }

private

◆ seq_length_

template<TensorDataType TInput, TensorDataType TPrecision = TInput>

int Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >::seq_length_ { 0 }

private

◆ wpe_

template<TensorDataType TInput, TensorDataType TPrecision = TInput>

NativeType* Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >::wpe_ { nullptr }

private

◆ wpe_embedding_dim_

template<TensorDataType TInput, TensorDataType TPrecision = TInput>

int Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >::wpe_embedding_dim_ { 0 }

private

◆ wpe_grad_

template<TensorDataType TInput, TensorDataType TPrecision = TInput>

NativeType* Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >::wpe_grad_ { nullptr }

private

◆ wpe_max_seq_len_

template<TensorDataType TInput, TensorDataType TPrecision = TInput>

int Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >::wpe_max_seq_len_ { 0 }

private

◆ wte_

template<TensorDataType TInput, TensorDataType TPrecision = TInput>

NativeType* Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >::wte_ { nullptr }

private

◆ wte_embedding_dim_

template<TensorDataType TInput, TensorDataType TPrecision = TInput>

int Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >::wte_embedding_dim_ { 0 }

private

◆ wte_grad_

template<TensorDataType TInput, TensorDataType TPrecision = TInput>

NativeType* Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >::wte_grad_ { nullptr }

private

◆ wte_vocab_size_

template<TensorDataType TInput, TensorDataType TPrecision = TInput>

int Mila::Dnn::Compute::Cuda::Lpe::CudaLpeOp< TInput, TPrecision >::wte_vocab_size_ { 0 }

private

The documentation for this class was generated from the following file:

/__w/Mila/Mila/Mila/Src/Dnn/Compute/Devices/Cuda/Operations/Encodings/Lpe/CudaLpeOp.ixx

Public Types

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ConfigType

◆ CudaExecutionContext

◆ MR

◆ NativeType

◆ TensorType

◆ UnaryOperationBase

Constructor & Destructor Documentation

◆ CudaLpeOp()

Member Function Documentation

◆ backward()

◆ build()

◆ decode()

◆ forward()

◆ getName()

◆ getOperationType()

◆ setGradients()

◆ setParameters()

◆ validateInputShape()

Member Data Documentation

◆ batch_size_

◆ config_

◆ context_

◆ embedding_dim_

◆ seq_length_

◆ wpe_

◆ wpe_embedding_dim_

◆ wpe_grad_

◆ wpe_max_seq_len_

◆ wte_

◆ wte_embedding_dim_

◆ wte_grad_

◆ wte_vocab_size_
