CUDA implementation of RMS Normalization. More...

Inheritance diagram for Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >:

[legend]

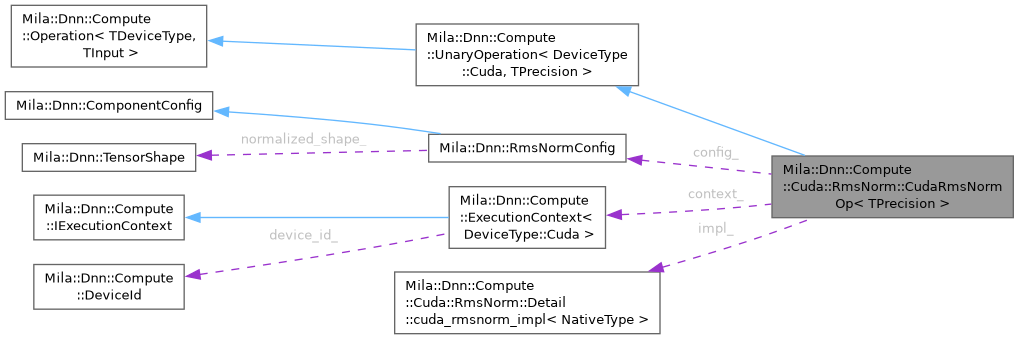

Collaboration diagram for Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >:

[legend]

Public Types
using	CudaExecutionContext = ExecutionContext<DeviceType::Cuda>
using	MR = CudaDeviceMemoryResource
using	NativeType = typename Mila::Dnn::Compute::Cuda::TensorDataTypeMap<TPrecision>::device_type
using	TensorType = Tensor<TPrecision, MR>
using	UnaryOperationBase = UnaryOperation<DeviceType::Cuda, TPrecision>
Public Types inherited from Mila::Dnn::Compute::UnaryOperation< DeviceType::Cuda, TPrecision >
using	MR
using	TensorInputType
using	TensorOutputType
Public Types inherited from Mila::Dnn::Compute::Operation< TDeviceType, TInput >
using	DataTypeTraits

Public Member Functions
	CudaRmsNormOp (IExecutionContext *context, const RmsNormConfig &config)
void	backward (const ITensor &input, const ITensor &output_grad, ITensor &input_grad) const override
	Execute backward pass (hot path).
void	build (const BuildContext &config) override
	Prepare operation for execution with concrete input shape.
void	forward (const ITensor &input, ITensor &output) const override
	Execute forward pass (hot path).
const RmsNormConfig &	getConfig () const
std::string	getName () const override
	Human-readable operation name.
OperationType	getOperationType () const override
	Operation type identifier.
void	setGradients (ITensor weight_grad, ITensor bias_grad) override
	Bind component-owned parameter gradient tensors for training.
void	setParameters (ITensor weight, ITensor bias) override
	Bind component-owned parameter tensors.
Public Member Functions inherited from Mila::Dnn::Compute::UnaryOperation< DeviceType::Cuda, TPrecision >
virtual	~UnaryOperation ()=default
Public Member Functions inherited from Mila::Dnn::Compute::Operation< TDeviceType, TInput >
virtual	~Operation ()=default
virtual void	clearGradients () noexcept
	Clear any cached gradient pointers held by the operation.
virtual TensorDataType	getDataType () const
	Tensor data type for this operation.
virtual DeviceType	getDeviceType () const
	Device type for this operation.
virtual std::size_t	getStateMemorySize () const
	Returns the number of bytes of state memory allocated by this operation.
virtual bool	isBuilt () const
	Whether build() completed successfully for a concrete input shape.
virtual bool	isEvalMode () const
	Query whether operation is configured for training.
virtual void	setTrainingMode (TrainingMode training_mode)
	Configure operation training-mode behavior.

Private Attributes
NativeType *	bias_ { nullptr }
NativeType *	bias_grad_ { nullptr }
RmsNormConfig	config_
CudaExecutionContext *	context_
Detail::cuda_rmsnorm_impl< NativeType >	impl_
int	inner_size_ { 0 }
int64_t	norm_axis_ { -1 }
int	norm_dim_ { 0 }
int	outer_size_ { 0 }
NativeType *	rstd_ { nullptr }
std::shared_ptr< TensorType >	rstd_tensor_
NativeType *	weight_ { nullptr }
NativeType *	weight_grad_ { nullptr }

Additional Inherited Members
Static Public Attributes inherited from Mila::Dnn::Compute::Operation< TDeviceType, TInput >
static constexpr TensorDataType	data_type
static constexpr DeviceType	device_type
Static Protected Member Functions inherited from Mila::Dnn::Compute::UnaryOperation< DeviceType::Cuda, TPrecision >
static const TensorInputType &	asInputTensor (const ITensor &t)
static TensorOutputType &	asOutputTensor (ITensor &t)
Protected Attributes inherited from Mila::Dnn::Compute::Operation< TDeviceType, TInput >
bool	is_built_
TrainingMode	training_mode_

Detailed Description

template<TensorDataType TPrecision>
requires PrecisionSupportedOnDevice<TPrecision, DeviceType::Cuda>
class Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >

CUDA implementation of RMS Normalization.

Normalizes activations using root-mean-square across a specified axis, then applies an optional affine transform with learnable weight and bias.

This class mirrors the LayerNorm op structure but calls RMS-specific kernels.

Template Parameters

TPrecision Abstract tensor precision (FP32, FP16, etc.)

Member Typedef Documentation

◆ CudaExecutionContext

template<TensorDataType TPrecision>

using Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >::CudaExecutionContext = ExecutionContext<DeviceType::Cuda>

◆ MR

template<TensorDataType TPrecision>

using Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >::MR = CudaDeviceMemoryResource

◆ NativeType

template<TensorDataType TPrecision>

using Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >::NativeType = typename Mila::Dnn::Compute::Cuda::TensorDataTypeMap<TPrecision>::device_type

◆ TensorType

template<TensorDataType TPrecision>

using Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >::TensorType = Tensor<TPrecision, MR>

◆ UnaryOperationBase

template<TensorDataType TPrecision>

using Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >::UnaryOperationBase = UnaryOperation<DeviceType::Cuda, TPrecision>

Constructor & Destructor Documentation

◆ CudaRmsNormOp()

template<TensorDataType TPrecision>

Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >::CudaRmsNormOp	(	IExecutionContext *	context,
		const RmsNormConfig &	config )

inline

Member Function Documentation

◆ backward()

template<TensorDataType TPrecision>

void Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >::backward	(	const ITensor &	input,
		const ITensor &	output_grad,
		ITensor &	input_grad ) const

inlineoverridevirtual

Execute backward pass (hot path).

Computes input gradient and accumulates parameter gradients using forward-pass statistics cached during forward().

Implements Mila::Dnn::Compute::UnaryOperation< DeviceType::Cuda, TPrecision >.

◆ build()

template<TensorDataType TPrecision>

void Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >::build ( const BuildContext & config )

inlineoverridevirtual

Prepare operation for execution with concrete input shape.

Computes normalization axis, partitions tensor dimensions, and allocates forward-pass statistics storage required by backward.

Reimplemented from Mila::Dnn::Compute::Operation< TDeviceType, TInput >.

◆ forward()

template<TensorDataType TPrecision>

void Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >::forward	(	const ITensor &	input,
		ITensor &	output ) const

inlineoverridevirtual

Execute forward pass (hot path).

Computes RMS-normalized output and caches forward-pass statistics required for backward().

Implements Mila::Dnn::Compute::UnaryOperation< DeviceType::Cuda, TPrecision >.

◆ getConfig()

template<TensorDataType TPrecision>

const RmsNormConfig & Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >::getConfig ( ) const

inline

◆ getName()

template<TensorDataType TPrecision>

std::string Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >::getName ( ) const

inlineoverridevirtual

Human-readable operation name.

Implements Mila::Dnn::Compute::Operation< TDeviceType, TInput >.

◆ getOperationType()

template<TensorDataType TPrecision>

OperationType Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >::getOperationType ( ) const

inlineoverridevirtual

Operation type identifier.

Implements Mila::Dnn::Compute::Operation< TDeviceType, TInput >.

◆ setGradients()

template<TensorDataType TPrecision>

void Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >::setGradients	(	ITensor *	weight_grad,
		ITensor *	bias_grad )

inlineoverridevirtual

Bind component-owned parameter gradient tensors for training.

Caches native device gradient pointers for backward pass writes.

Parameters

weight_grad	Gradient accumulator for weight parameter (required)
bias_grad	Gradient accumulator for bias parameter (optional)

Reimplemented from Mila::Dnn::Compute::Operation< TDeviceType, TInput >.

◆ setParameters()

template<TensorDataType TPrecision>

void Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >::setParameters	(	ITensor *	weight,
		ITensor *	bias )

inlineoverridevirtual

Bind component-owned parameter tensors.

Caches native device pointers for zero-overhead hot-path access. Weight is required; bias is optional based on configuration.

Parameters

weight	Scaling parameter applied after normalization (required)
bias	Shift parameter applied after normalization (optional)

Reimplemented from Mila::Dnn::Compute::Operation< TDeviceType, TInput >.

Member Data Documentation

◆ bias_

template<TensorDataType TPrecision>

NativeType* Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >::bias_ { nullptr }

private

◆ bias_grad_

template<TensorDataType TPrecision>

NativeType* Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >::bias_grad_ { nullptr }

private

◆ config_

template<TensorDataType TPrecision>

RmsNormConfig Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >::config_

private

◆ context_

template<TensorDataType TPrecision>

CudaExecutionContext* Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >::context_

private

◆ impl_

template<TensorDataType TPrecision>

Detail::cuda_rmsnorm_impl<NativeType> Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >::impl_

private

◆ inner_size_

template<TensorDataType TPrecision>

int Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >::inner_size_ { 0 }

private

◆ norm_axis_

template<TensorDataType TPrecision>

int64_t Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >::norm_axis_ { -1 }

private

◆ norm_dim_

template<TensorDataType TPrecision>

int Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >::norm_dim_ { 0 }

private

◆ outer_size_

template<TensorDataType TPrecision>

int Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >::outer_size_ { 0 }

private

◆ rstd_

template<TensorDataType TPrecision>

NativeType* Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >::rstd_ { nullptr }

private

◆ rstd_tensor_

template<TensorDataType TPrecision>

std::shared_ptr<TensorType> Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >::rstd_tensor_

private

◆ weight_

template<TensorDataType TPrecision>

NativeType* Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >::weight_ { nullptr }

private

◆ weight_grad_

template<TensorDataType TPrecision>

NativeType* Mila::Dnn::Compute::Cuda::RmsNorm::CudaRmsNormOp< TPrecision >::weight_grad_ { nullptr }

private

The documentation for this class was generated from the following file:

/__w/Mila/Mila/Mila/Src/Dnn/Compute/Devices/Cuda/Operations/Normalizations/RmsNorm/RmsNormOp.ixx
