Fused CUDA implementation of Softmax + CrossEntropy using abstract TensorDataType API. More...

Inheritance diagram for Mila::Dnn::Compute::Cuda::SoftmaxCrossEntropy::CudaSoftmaxCrossEntropyOp< TPrecision, TLogits, TTargets >:

[legend]

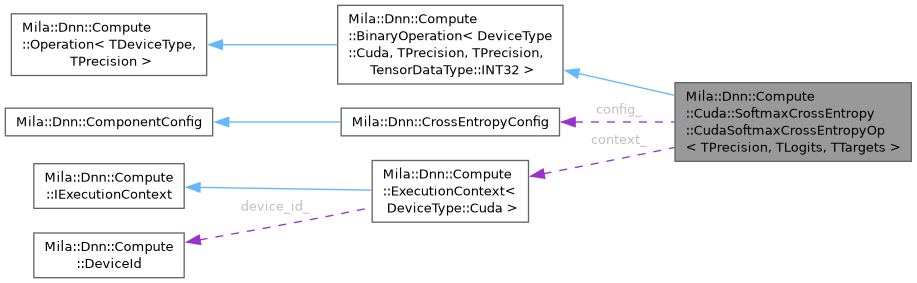

Collaboration diagram for Mila::Dnn::Compute::Cuda::SoftmaxCrossEntropy::CudaSoftmaxCrossEntropyOp< TPrecision, TLogits, TTargets >:

[legend]

Public Types
using	BinaryOperationBase = BinaryOperation<DeviceType::Cuda, TPrecision, TLogits, TTargets>
using	CudaExecutionContext = ExecutionContext<DeviceType::Cuda>
using	LogitsTensorType = Tensor<TLogits, MR>
using	MR = CudaDeviceMemoryResource
using	NativeType = typename Mila::Dnn::Compute::Cuda::TensorDataTypeMap<TLogits>::device_type
using	TargetsNativeType = typename Mila::Dnn::Compute::Cuda::TensorDataTypeMap<TTargets>::device_type
using	TargetsTensorType = Tensor<TTargets, MR>
Public Types inherited from Mila::Dnn::Compute::BinaryOperation< DeviceType::Cuda, TPrecision, TPrecision, TensorDataType::INT32 >
using	MR
using	ParameterGradTensor
using	ParameterTensor
using	TensorLeftType
using	TensorOutputType
using	TensorRightType
Public Types inherited from Mila::Dnn::Compute::Operation< TDeviceType, TPrecision >
using	DataTypeTraits

Public Member Functions
	CudaSoftmaxCrossEntropyOp (IExecutionContext *context, const CrossEntropyConfig &config)
	Construct fused Softmax+CrossEntropy operation with execution context.
void	backward (const ITensor &logits, const ITensor &targets, const ITensor &loss_grad, ITensor &logits_grad, ITensor &targets_grad) const override
	Backward pass - HOT PATH, computes fused gradient.
void	build (const BuildContext &config) override
	Build the operation for a concrete input shape.
void	forward (const ITensor &logits, const ITensor &targets, ITensor &output) const override
	Forward pass - HOT PATH, computes fused softmax+cross-entropy loss.
const CrossEntropyConfig &	getConfig () const
std::string	getName () const override
	Human-readable operation name.
OperationType	getOperationType () const override
	Operation type identifier.
void	setParameters (ITensor class_weights, ITensor bias) override
	Bind optional class weights parameter.
Public Member Functions inherited from Mila::Dnn::Compute::BinaryOperation< DeviceType::Cuda, TPrecision, TPrecision, TensorDataType::INT32 >
virtual	~BinaryOperation ()=default
Public Member Functions inherited from Mila::Dnn::Compute::Operation< TDeviceType, TPrecision >
virtual	~Operation ()=default
virtual void	clearGradients () noexcept
	Clear any cached gradient pointers held by the operation.
virtual TensorDataType	getDataType () const
	Tensor data type for this operation.
virtual DeviceType	getDeviceType () const
	Device type for this operation.
virtual std::size_t	getStateMemorySize () const
	Returns the number of bytes of state memory allocated by this operation.
virtual bool	isBuilt () const
	Whether build() completed successfully for a concrete input shape.
virtual bool	isEvalMode () const
	Query whether operation is configured for training.
virtual void	setGradients (ITensor weight_grad, ITensor bias_grad)
	Bind module-owned gradient tensors to the operation.
virtual void	setTrainingMode (TrainingMode training_mode)
	Configure operation training-mode behavior.

Private Attributes
int	cached_batch_size_ { 0 }
std::shared_ptr< LogitsTensorType >	cached_probs_
int	cached_seq_len_ { 0 }
cudaStream_t	cached_stream_ { nullptr }
int	cached_vocab_size_ { 0 }
const NativeType *	class_weights_ { nullptr }
CrossEntropyConfig	config_
CudaExecutionContext *	context_

Additional Inherited Members
Static Public Attributes inherited from Mila::Dnn::Compute::Operation< TDeviceType, TPrecision >
static constexpr TensorDataType	data_type
static constexpr DeviceType	device_type
Static Protected Member Functions inherited from Mila::Dnn::Compute::BinaryOperation< DeviceType::Cuda, TPrecision, TPrecision, TensorDataType::INT32 >
static const TensorLeftType &	asLeftTensor (const ITensor &t)
static TensorOutputType &	asOutputTensor (ITensor &t)
static const TensorRightType &	asRightTensor (const ITensor &t)
Protected Attributes inherited from Mila::Dnn::Compute::Operation< TDeviceType, TPrecision >
bool	is_built_
TrainingMode	training_mode_

Detailed Description

template<TensorDataType TPrecision, TensorDataType TLogits = TPrecision, TensorDataType TTargets = TensorDataType::INT32>
requires PrecisionSupportedOnDevice<TPrecision, DeviceType::Cuda> && PrecisionSupportedOnDevice<TLogits, DeviceType::Cuda>
class Mila::Dnn::Compute::Cuda::SoftmaxCrossEntropy::CudaSoftmaxCrossEntropyOp< TPrecision, TLogits, TTargets >

Fused CUDA implementation of Softmax + CrossEntropy using abstract TensorDataType API.

This operation combines softmax normalization and cross-entropy loss computation into a single numerically stable binary operation (logits + targets ? loss).

Key properties:

Numerical Stability: Uses log-sum-exp trick to avoid overflow/underflow
Performance: Single GPU kernel pass, no intermediate probability tensor in API
Simplified Gradient: dL/dlogits = softmax(logits) - one_hot(targets)
Memory Efficiency: Probabilities cached internally for backward pass

Design philosophy:

Two-phase initialization: build() does all setup, forward()/backward() are pure dispatch
Internal state management: Probabilities cached as mutable private member
Forward computes loss directly from logits
Backward uses cached probabilities from forward pass
All dimension computation happens once in build()

Template Parameters

TLogitsPrecision	Precision for logits/gradients (FP32, FP16)
TTargets	Target indices data type (typically INT32)

Member Typedef Documentation

◆ BinaryOperationBase

template<TensorDataType TPrecision, TensorDataType TLogits = TPrecision, TensorDataType TTargets = TensorDataType::INT32>

using Mila::Dnn::Compute::Cuda::SoftmaxCrossEntropy::CudaSoftmaxCrossEntropyOp< TPrecision, TLogits, TTargets >::BinaryOperationBase = BinaryOperation<DeviceType::Cuda, TPrecision, TLogits, TTargets>

◆ CudaExecutionContext

template<TensorDataType TPrecision, TensorDataType TLogits = TPrecision, TensorDataType TTargets = TensorDataType::INT32>

using Mila::Dnn::Compute::Cuda::SoftmaxCrossEntropy::CudaSoftmaxCrossEntropyOp< TPrecision, TLogits, TTargets >::CudaExecutionContext = ExecutionContext<DeviceType::Cuda>

◆ LogitsTensorType

template<TensorDataType TPrecision, TensorDataType TLogits = TPrecision, TensorDataType TTargets = TensorDataType::INT32>

using Mila::Dnn::Compute::Cuda::SoftmaxCrossEntropy::CudaSoftmaxCrossEntropyOp< TPrecision, TLogits, TTargets >::LogitsTensorType = Tensor<TLogits, MR>

◆ MR

template<TensorDataType TPrecision, TensorDataType TLogits = TPrecision, TensorDataType TTargets = TensorDataType::INT32>

using Mila::Dnn::Compute::Cuda::SoftmaxCrossEntropy::CudaSoftmaxCrossEntropyOp< TPrecision, TLogits, TTargets >::MR = CudaDeviceMemoryResource

◆ NativeType

template<TensorDataType TPrecision, TensorDataType TLogits = TPrecision, TensorDataType TTargets = TensorDataType::INT32>

using Mila::Dnn::Compute::Cuda::SoftmaxCrossEntropy::CudaSoftmaxCrossEntropyOp< TPrecision, TLogits, TTargets >::NativeType = typename Mila::Dnn::Compute::Cuda::TensorDataTypeMap<TLogits>::device_type

◆ TargetsNativeType

template<TensorDataType TPrecision, TensorDataType TLogits = TPrecision, TensorDataType TTargets = TensorDataType::INT32>

using Mila::Dnn::Compute::Cuda::SoftmaxCrossEntropy::CudaSoftmaxCrossEntropyOp< TPrecision, TLogits, TTargets >::TargetsNativeType = typename Mila::Dnn::Compute::Cuda::TensorDataTypeMap<TTargets>::device_type

◆ TargetsTensorType

template<TensorDataType TPrecision, TensorDataType TLogits = TPrecision, TensorDataType TTargets = TensorDataType::INT32>

using Mila::Dnn::Compute::Cuda::SoftmaxCrossEntropy::CudaSoftmaxCrossEntropyOp< TPrecision, TLogits, TTargets >::TargetsTensorType = Tensor<TTargets, MR>

Constructor & Destructor Documentation

◆ CudaSoftmaxCrossEntropyOp()

template<TensorDataType TPrecision, TensorDataType TLogits = TPrecision, TensorDataType TTargets = TensorDataType::INT32>

Mila::Dnn::Compute::Cuda::SoftmaxCrossEntropy::CudaSoftmaxCrossEntropyOp< TPrecision, TLogits, TTargets >::CudaSoftmaxCrossEntropyOp	(	IExecutionContext *	context,
		const CrossEntropyConfig &	config )

inline

Construct fused Softmax+CrossEntropy operation with execution context.

Parameters

context	CUDA execution context
config	CrossEntropy configuration (vocab_size required)

Member Function Documentation

◆ backward()

template<TensorDataType TPrecision, TensorDataType TLogits = TPrecision, TensorDataType TTargets = TensorDataType::INT32>

void Mila::Dnn::Compute::Cuda::SoftmaxCrossEntropy::CudaSoftmaxCrossEntropyOp< TPrecision, TLogits, TTargets >::backward	(	const ITensor &	logits,
		const ITensor &	targets,
		const ITensor &	loss_grad,
		ITensor &	logits_grad,
		ITensor &	targets_grad ) const

inlineoverridevirtual

Backward pass - HOT PATH, computes fused gradient.

Beautiful property of fused softmax+cross-entropy: dL/dlogits = softmax(logits) - one_hot(targets)

Algorithm: For each sample: dL/dlogits[i] = prob[i] - (i == target ? 1 : 0) Scale by output_gradient

Parameters

logits	Logits tensor from forward pass
targets	Targets tensor from forward pass
loss_grad	Gradient w.r.t. loss (per-sample gradients)
logits_grad	Output: gradient w.r.t. logits
targets_grad	Unused (targets are integers, not differentiable)

Implements Mila::Dnn::Compute::BinaryOperation< DeviceType::Cuda, TPrecision, TPrecision, TensorDataType::INT32 >.

◆ build()

template<TensorDataType TPrecision, TensorDataType TLogits = TPrecision, TensorDataType TTargets = TensorDataType::INT32>

void Mila::Dnn::Compute::Cuda::SoftmaxCrossEntropy::CudaSoftmaxCrossEntropyOp< TPrecision, TLogits, TTargets >::build ( const BuildContext & config )

inlineoverridevirtual

Build the operation for a concrete input shape.

This is the COLD PATH where all setup, validation, and computation happens ONCE.

Expected input shape: [batch_size, seq_length, vocab_size] or [batch_size, vocab_size] Target shape: [batch_size, seq_length] or [batch_size]

Responsibilities:

Validate input shape (rank >= 2, last dim = vocab_size)
Compute and cache dimension sizes (batch, seq, vocab)
Cache CUDA stream
Allocate internal probability cache for backward pass

Reimplemented from Mila::Dnn::Compute::Operation< TDeviceType, TPrecision >.

◆ forward()

template<TensorDataType TPrecision, TensorDataType TLogits = TPrecision, TensorDataType TTargets = TensorDataType::INT32>

void Mila::Dnn::Compute::Cuda::SoftmaxCrossEntropy::CudaSoftmaxCrossEntropyOp< TPrecision, TLogits, TTargets >::forward	(	const ITensor &	logits,
		const ITensor &	targets,
		ITensor &	output ) const

inlineoverridevirtual

Forward pass - HOT PATH, computes fused softmax+cross-entropy loss.

Computes: loss = -log(softmax(logits)[target])

Algorithm (numerically stable): For each sample:

max_logit = max(logits)
sum_exp = sum(exp(logits - max_logit))
loss = -(logits[target] - max_logit - log(sum_exp))

Parameters

inputA	Logits tensor [batch, seq, vocab]
inputB	Targets tensor [batch, seq] (integer class indices)
output	Loss tensor (per-sample losses [batch, seq])

Implements Mila::Dnn::Compute::BinaryOperation< DeviceType::Cuda, TPrecision, TPrecision, TensorDataType::INT32 >.

◆ getConfig()

template<TensorDataType TPrecision, TensorDataType TLogits = TPrecision, TensorDataType TTargets = TensorDataType::INT32>

const CrossEntropyConfig & Mila::Dnn::Compute::Cuda::SoftmaxCrossEntropy::CudaSoftmaxCrossEntropyOp< TPrecision, TLogits, TTargets >::getConfig ( ) const

inline

◆ getName()

template<TensorDataType TPrecision, TensorDataType TLogits = TPrecision, TensorDataType TTargets = TensorDataType::INT32>

std::string Mila::Dnn::Compute::Cuda::SoftmaxCrossEntropy::CudaSoftmaxCrossEntropyOp< TPrecision, TLogits, TTargets >::getName ( ) const

inlineoverridevirtual

Human-readable operation name.

Implements Mila::Dnn::Compute::Operation< TDeviceType, TPrecision >.

◆ getOperationType()

template<TensorDataType TPrecision, TensorDataType TLogits = TPrecision, TensorDataType TTargets = TensorDataType::INT32>

OperationType Mila::Dnn::Compute::Cuda::SoftmaxCrossEntropy::CudaSoftmaxCrossEntropyOp< TPrecision, TLogits, TTargets >::getOperationType ( ) const

inlineoverridevirtual

Operation type identifier.

Implements Mila::Dnn::Compute::Operation< TDeviceType, TPrecision >.

◆ setParameters()

template<TensorDataType TPrecision, TensorDataType TLogits = TPrecision, TensorDataType TTargets = TensorDataType::INT32>

void Mila::Dnn::Compute::Cuda::SoftmaxCrossEntropy::CudaSoftmaxCrossEntropyOp< TPrecision, TLogits, TTargets >::setParameters	(	ITensor *	class_weights,
		ITensor *	bias )

inlineoverridevirtual

Bind optional class weights parameter.

Parameters

class_weights	Optional class weights tensor (may be null)
bias	Unused (must be null)

Reimplemented from Mila::Dnn::Compute::Operation< TDeviceType, TPrecision >.

Member Data Documentation

◆ cached_batch_size_

template<TensorDataType TPrecision, TensorDataType TLogits = TPrecision, TensorDataType TTargets = TensorDataType::INT32>

int Mila::Dnn::Compute::Cuda::SoftmaxCrossEntropy::CudaSoftmaxCrossEntropyOp< TPrecision, TLogits, TTargets >::cached_batch_size_ { 0 }

private

◆ cached_probs_

template<TensorDataType TPrecision, TensorDataType TLogits = TPrecision, TensorDataType TTargets = TensorDataType::INT32>

std::shared_ptr<LogitsTensorType> Mila::Dnn::Compute::Cuda::SoftmaxCrossEntropy::CudaSoftmaxCrossEntropyOp< TPrecision, TLogits, TTargets >::cached_probs_

mutableprivate

◆ cached_seq_len_

template<TensorDataType TPrecision, TensorDataType TLogits = TPrecision, TensorDataType TTargets = TensorDataType::INT32>

int Mila::Dnn::Compute::Cuda::SoftmaxCrossEntropy::CudaSoftmaxCrossEntropyOp< TPrecision, TLogits, TTargets >::cached_seq_len_ { 0 }

private

◆ cached_stream_

template<TensorDataType TPrecision, TensorDataType TLogits = TPrecision, TensorDataType TTargets = TensorDataType::INT32>

cudaStream_t Mila::Dnn::Compute::Cuda::SoftmaxCrossEntropy::CudaSoftmaxCrossEntropyOp< TPrecision, TLogits, TTargets >::cached_stream_ { nullptr }

private

◆ cached_vocab_size_

template<TensorDataType TPrecision, TensorDataType TLogits = TPrecision, TensorDataType TTargets = TensorDataType::INT32>

int Mila::Dnn::Compute::Cuda::SoftmaxCrossEntropy::CudaSoftmaxCrossEntropyOp< TPrecision, TLogits, TTargets >::cached_vocab_size_ { 0 }

private

◆ class_weights_

template<TensorDataType TPrecision, TensorDataType TLogits = TPrecision, TensorDataType TTargets = TensorDataType::INT32>

const NativeType* Mila::Dnn::Compute::Cuda::SoftmaxCrossEntropy::CudaSoftmaxCrossEntropyOp< TPrecision, TLogits, TTargets >::class_weights_ { nullptr }

private

◆ config_

template<TensorDataType TPrecision, TensorDataType TLogits = TPrecision, TensorDataType TTargets = TensorDataType::INT32>

CrossEntropyConfig Mila::Dnn::Compute::Cuda::SoftmaxCrossEntropy::CudaSoftmaxCrossEntropyOp< TPrecision, TLogits, TTargets >::config_

private

◆ context_

template<TensorDataType TPrecision, TensorDataType TLogits = TPrecision, TensorDataType TTargets = TensorDataType::INT32>

CudaExecutionContext* Mila::Dnn::Compute::Cuda::SoftmaxCrossEntropy::CudaSoftmaxCrossEntropyOp< TPrecision, TLogits, TTargets >::context_

private

The documentation for this class was generated from the following file:

/__w/Mila/Mila/Mila/Src/Dnn/Compute/Devices/Cuda/Operations/Loss/CudaSoftmaxCrossEntropyOp.ixx

Public Types

Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ BinaryOperationBase

◆ CudaExecutionContext

◆ LogitsTensorType

◆ MR

◆ NativeType

◆ TargetsNativeType

◆ TargetsTensorType

Constructor & Destructor Documentation

◆ CudaSoftmaxCrossEntropyOp()

Member Function Documentation

◆ backward()

◆ build()

◆ forward()

◆ getConfig()

◆ getName()

◆ getOperationType()

◆ setParameters()

Member Data Documentation

◆ cached_batch_size_

◆ cached_probs_

◆ cached_seq_len_

◆ cached_stream_

◆ cached_vocab_size_

◆ class_weights_

◆ config_

◆ context_
