Configuration class for MultiHeadAttention module. More...

Inheritance diagram for Mila::Dnn::MultiHeadAttentionConfig:

Collaboration diagram for Mila::Dnn::MultiHeadAttentionConfig:

Public Member Functions
	MultiHeadAttentionConfig (size_t embedding_dim, size_t num_heads)
	Constructor with required parameters.

float	getDropout () const
	Get the dropout rate.

size_t	getEmbeddingDim () const
	Get the embedding dimension.

const std::vector< size_t > &	getInputShape () const
	Get the input shape.

size_t	getNumHeads () const
	Get the number of attention heads.

float	getScaleFactor () const
	Get the attention scaling factor.

bool	useCausalMask () const
	Check if causal masking is enabled.

bool	useSeparateProjections () const
	Check if using separate projection matrices.

void	validate () const
	Validate configuration parameters.

MultiHeadAttentionConfig &	withCausalMask (bool causal)
	Configure whether to use causal attention mask.

MultiHeadAttentionConfig &	withDropout (float dropout)
	Set the dropout rate for attention weights.

MultiHeadAttentionConfig &	withInputShape (const std::vector< size_t > &input_shape)
	Set the input shape for the attention module.

MultiHeadAttentionConfig &	withScaleFactor (float scale_factor)
	Set the scaling factor for attention logits.

MultiHeadAttentionConfig &	withSeparateProjections (bool separate_projections)
	Configure whether to use separate projection matrices for query, key, and value.

Public Member Functions inherited from Mila::Dnn::ComponentConfig
virtual	~ComponentConfig ()=default
	Virtual destructor to support proper polymorphic destruction.

const std::string &	getName () const
	Gets the configured component name.

ComputePrecision::Policy	getPrecision () const
	Gets the configured precision policy.

bool	isTraining () const
	Gets the configured training mode.

template<typename Self >
auto &	withName (this Self &&self, std::string name)
	Sets the name of the component with fluent interface.

template<typename Self >
auto &	withPrecision (this Self &&self, ComputePrecision::Policy policy)
	Sets the compute precision policy with fluent interface.

template<typename Self >
auto &	withTraining (this Self &&self, bool is_training)
	Sets the training mode with fluent interface.

Private Attributes
float	dropout_ = 0.0f

size_t	embedding_dim_

std::vector< size_t >	input_shape_

size_t	num_heads_

float	scale_factor_ = 1.0f

bool	separate_projections_ = true

bool	use_causal_mask_ = false

Additional Inherited Members
Protected Attributes inherited from Mila::Dnn::ComponentConfig
bool	is_training_ = false
	Training mode flag, defaults to false (inference mode)

std::string	name_ = "unnamed"
	Component name, defaults to "unnamed" if not explicitly set.

ComputePrecision::Policy	precision_ = ComputePrecision::Policy::Auto
	Precision policy for computation, defaults to Auto.

Detailed Description

Configuration class for MultiHeadAttention module.

Constructor & Destructor Documentation

◆ MultiHeadAttentionConfig()

Mila::Dnn::MultiHeadAttentionConfig::MultiHeadAttentionConfig	(	size_t	embedding_dim,
		size_t	num_heads
	)

inline

Constructor with required parameters.

Parameters

embedding_dim	The embedding dimension size
num_heads	The number of attention heads

Member Function Documentation

◆ getDropout()

float Mila::Dnn::MultiHeadAttentionConfig::getDropout ( ) const

inline

Get the dropout rate.

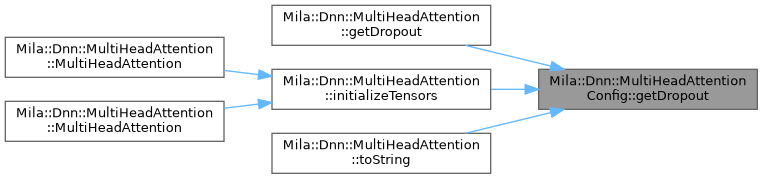

Here is the caller graph for this function:

◆ getEmbeddingDim()

size_t Mila::Dnn::MultiHeadAttentionConfig::getEmbeddingDim ( ) const

inline

Get the embedding dimension.

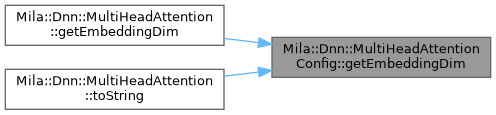

Here is the caller graph for this function:

◆ getInputShape()

const std::vector< size_t > & Mila::Dnn::MultiHeadAttentionConfig::getInputShape ( ) const

inline

Get the input shape.

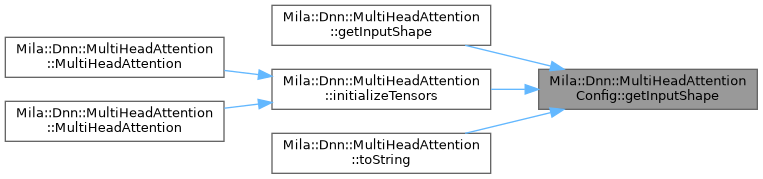

Here is the caller graph for this function:

◆ getNumHeads()

size_t Mila::Dnn::MultiHeadAttentionConfig::getNumHeads ( ) const

inline

Get the number of attention heads.

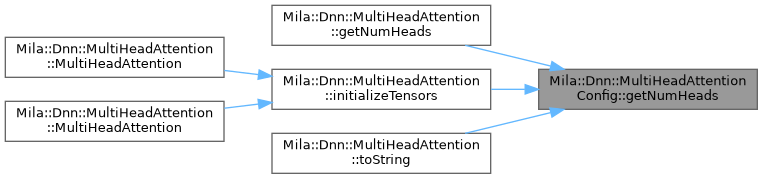

Here is the caller graph for this function:

◆ getScaleFactor()

float Mila::Dnn::MultiHeadAttentionConfig::getScaleFactor ( ) const

inline

Get the attention scaling factor.

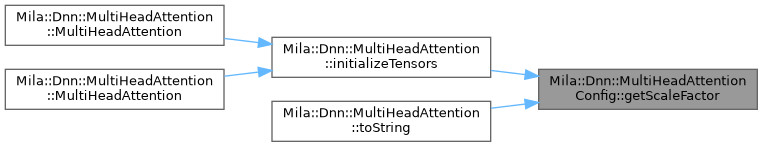

Here is the caller graph for this function:

◆ useCausalMask()

bool Mila::Dnn::MultiHeadAttentionConfig::useCausalMask ( ) const

inline

Check if causal masking is enabled.

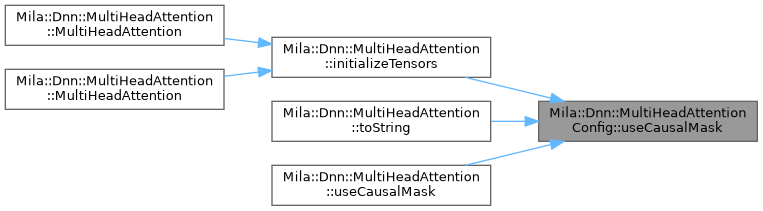

Here is the caller graph for this function:

◆ useSeparateProjections()

bool Mila::Dnn::MultiHeadAttentionConfig::useSeparateProjections ( ) const

inline

Check if using separate projection matrices.

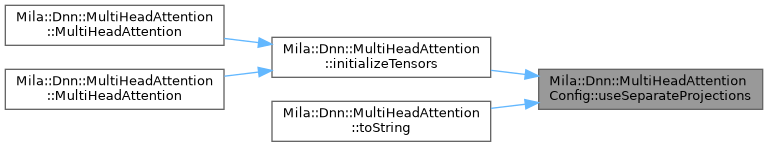

Here is the caller graph for this function:

◆ validate()

void Mila::Dnn::MultiHeadAttentionConfig::validate ( ) const

inlinevirtual

Validate configuration parameters.

Exceptions

std::invalid_argument If validation fails

Reimplemented from Mila::Dnn::ComponentConfig.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ withCausalMask()

MultiHeadAttentionConfig & Mila::Dnn::MultiHeadAttentionConfig::withCausalMask ( bool causal )

inline

Configure whether to use causal attention mask.

Parameters

causal True to use causal masking (for decoder/autoregressive models)

Returns: MultiHeadAttentionConfig& Reference to this for method chaining

◆ withDropout()

MultiHeadAttentionConfig & Mila::Dnn::MultiHeadAttentionConfig::withDropout ( float dropout )

inline

Set the dropout rate for attention weights.

Parameters

dropout Dropout probability (0.0 to 1.0)

Returns: MultiHeadAttentionConfig& Reference to this for method chaining

◆ withInputShape()

MultiHeadAttentionConfig & Mila::Dnn::MultiHeadAttentionConfig::withInputShape ( const std::vector< size_t > & input_shape )

inline

Set the input shape for the attention module.

Parameters

input_shape Vector containing input tensor dimensions [batch_size, seq_len, embedding_dim]

Returns: MultiHeadAttentionConfig& Reference to this for method chaining

◆ withScaleFactor()

MultiHeadAttentionConfig & Mila::Dnn::MultiHeadAttentionConfig::withScaleFactor ( float scale_factor )

inline

Set the scaling factor for attention logits.

Parameters

scale_factor Scaling factor (typically 1/sqrt(head_dim))

Returns: MultiHeadAttentionConfig& Reference to this for method chaining

◆ withSeparateProjections()

MultiHeadAttentionConfig & Mila::Dnn::MultiHeadAttentionConfig::withSeparateProjections ( bool separate_projections )

inline

Configure whether to use separate projection matrices for query, key, and value.

Parameters

separate_projections True to use separate projections, false to use a single matrix

Returns: MultiHeadAttentionConfig& Reference to this for method chaining

Member Data Documentation

◆ dropout_

float Mila::Dnn::MultiHeadAttentionConfig::dropout_ = 0.0f

private

◆ embedding_dim_

size_t Mila::Dnn::MultiHeadAttentionConfig::embedding_dim_

private

◆ input_shape_

std::vector<size_t> Mila::Dnn::MultiHeadAttentionConfig::input_shape_

private

◆ num_heads_

size_t Mila::Dnn::MultiHeadAttentionConfig::num_heads_

private

◆ scale_factor_

float Mila::Dnn::MultiHeadAttentionConfig::scale_factor_ = 1.0f

private

◆ separate_projections_

bool Mila::Dnn::MultiHeadAttentionConfig::separate_projections_ = true

private

◆ use_causal_mask_

bool Mila::Dnn::MultiHeadAttentionConfig::use_causal_mask_ = false

private

The documentation for this class was generated from the following file:

/home/runner/work/Mila/Mila/Mila/Src/Dnn/Modules/Layers/MultiHeadAttentionConfig.ixx
