CPU implementation of GELU activation operation using abstract TensorDataType. More...

Inheritance diagram for Mila::Dnn::Compute::CpuGeluOp:

[legend]

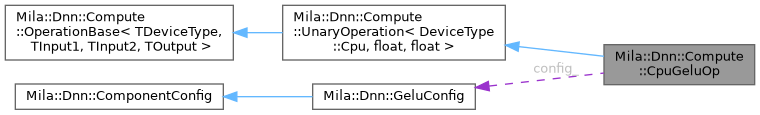

Collaboration diagram for Mila::Dnn::Compute::CpuGeluOp:

[legend]

Public Types
using	CpuExecutionContext = ExecutionContext<DeviceType::Cpu>
using	MR = CpuMemoryResource
using	TensorType = Tensor<TensorDataType::FP32, MR>
using	UnaryOperationBase = UnaryOperation<DeviceType::Cpu, TensorDataType::FP32>
Public Types inherited from Mila::Dnn::Compute::UnaryOperation< DeviceType::Cpu, TensorDataType::FP32 >
using	MR
using	TensorInputType
using	TensorOutputType
Public Types inherited from Mila::Dnn::Compute::Operation< TDeviceType, TInput >
using	DataTypeTraits

Public Member Functions
	CpuGeluOp (IExecutionContext *context, const GeluConfig &config)
	Constructs a new CpuGeluOp with a specific execution context.
void	backward (const ITensor &input, const ITensor &output_grad, ITensor &input_grad) const override
	Performs the backward pass of the GELU activation function.
void	build (const BuildContext &config) override
	Prepare the operation for a concrete input shape.
void	forward (const ITensor &input, ITensor &output) const override
	Performs the forward pass of the GELU activation function.
std::string	getName () const override
	Gets the name of this operation.
OperationType	getOperationType () const override
	Operation type identifier.
Public Member Functions inherited from Mila::Dnn::Compute::UnaryOperation< DeviceType::Cpu, TensorDataType::FP32 >
virtual	~UnaryOperation ()=default
Public Member Functions inherited from Mila::Dnn::Compute::Operation< TDeviceType, TInput >
virtual	~Operation ()=default
virtual void	clearGradients () noexcept
	Clear any cached gradient pointers held by the operation.
virtual TensorDataType	getDataType () const
	Tensor data type for this operation.
virtual DeviceType	getDeviceType () const
	Device type for this operation.
virtual std::size_t	getStateMemorySize () const
	Returns the number of bytes of state memory allocated by this operation.
virtual bool	isBuilt () const
	Whether build() completed successfully for a concrete input shape.
virtual bool	isEvalMode () const
	Query whether operation is configured for training.
virtual void	setGradients (ITensor weight_grad, ITensor bias_grad)
	Bind module-owned gradient tensors to the operation.
virtual void	setParameters (ITensor weight, ITensor bias)
	Bind module-owned parameter tensors to the operation.
virtual void	setTrainingMode (TrainingMode training_mode)
	Configure operation training-mode behavior.

Private Attributes
GeluConfig	config_
	Configuration for the GELU operation (approximation method, etc.).
IExecutionContext *	context_ { nullptr }

Additional Inherited Members
Static Public Attributes inherited from Mila::Dnn::Compute::Operation< TDeviceType, TInput >
static constexpr TensorDataType	data_type
static constexpr DeviceType	device_type
Static Protected Member Functions inherited from Mila::Dnn::Compute::UnaryOperation< DeviceType::Cpu, TensorDataType::FP32 >
static const TensorInputType &	asInputTensor (const ITensor &t)
static TensorOutputType &	asOutputTensor (ITensor &t)
Protected Attributes inherited from Mila::Dnn::Compute::Operation< TDeviceType, TInput >
bool	is_built_
TrainingMode	training_mode_

Detailed Description

CPU implementation of GELU activation operation using abstract TensorDataType.

Implements the Gaussian Error Linear Unit (GELU) activation function for CPU devices. Supports multiple approximation methods as configured via GeluConfig:

Exact: Uses error function (not yet implemented)
Tanh: Fast approximation using tanh (default, implemented)
Sigmoid: Fast approximation using sigmoid (not yet implemented)

Key features:

Uses abstract TensorDataType enumeration to represent compute precision
Supports scalar tensor operations (rank 0)
OpenMP parallelization for large tensors
Element-wise activation preserving tensor shape

Template Parameters

TPrecision Abstract compute precision (TensorDataType enum)

Note: Currently only FP32 (float) is fully supported; Other precisions will require template specialization

Member Typedef Documentation

◆ CpuExecutionContext

using Mila::Dnn::Compute::CpuGeluOp::CpuExecutionContext = ExecutionContext<DeviceType::Cpu>

◆ MR

using Mila::Dnn::Compute::CpuGeluOp::MR = CpuMemoryResource

◆ TensorType

using Mila::Dnn::Compute::CpuGeluOp::TensorType = Tensor<TensorDataType::FP32, MR>

◆ UnaryOperationBase

using Mila::Dnn::Compute::CpuGeluOp::UnaryOperationBase = UnaryOperation<DeviceType::Cpu, TensorDataType::FP32>

Constructor & Destructor Documentation

◆ CpuGeluOp()

Mila::Dnn::Compute::CpuGeluOp::CpuGeluOp	(	IExecutionContext *	context,
		const GeluConfig &	config )

inline

Constructs a new CpuGeluOp with a specific execution context.

Parameters

context	The execution context to use for this operation.
config	Configuration for GELU operation.

Exceptions

std::runtime_error If the context is not for a CPU device.

Member Function Documentation

◆ backward()

void Mila::Dnn::Compute::CpuGeluOp::backward	(	const ITensor &	input,
		const ITensor &	output_grad,
		ITensor &	input_grad ) const

inlineoverridevirtual

Performs the backward pass of the GELU activation function.

Computes the gradient of the GELU function with respect to its input.

Parameters

input	Original input tensor from forward pass (may be scalar).
output_grad	Gradient from next layer (dL/doutput, may be scalar).
parameters	Parameter tensors (not used in GELU).
parameter_grads	Parameter gradients (not used in GELU).
input_grad	Gradient to propagate to previous layer (dL/dinput, may be scalar).
output_state	Cached tensors from forward pass (not used currently).

Implements Mila::Dnn::Compute::UnaryOperation< DeviceType::Cpu, TensorDataType::FP32 >.

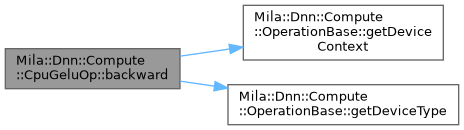

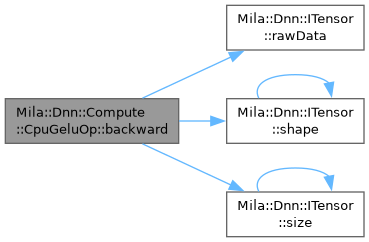

Here is the call graph for this function:

◆ build()

void Mila::Dnn::Compute::CpuGeluOp::build ( const BuildContext & build_context )

inlineoverridevirtual

Prepare the operation for a concrete input shape.

Default implementation is a no-op. Operations requiring shape-dependent setup should override this method.

Reimplemented from Mila::Dnn::Compute::Operation< TDeviceType, TInput >.

◆ forward()

void Mila::Dnn::Compute::CpuGeluOp::forward	(	const ITensor &	input,
		ITensor &	output ) const

inlineoverridevirtual

Performs the forward pass of the GELU activation function.

Implements the Gaussian Error Linear Unit (GELU) activation function using the tanh approximation: GELU(x) = 0.5 * x * (1 + tanh(sqrt(2/pi) * (x + 0.044715 * x^3)))

Tensor shape handling:

Scalar input (rank 0): Produces scalar output
Vector/matrix input: Produces output with same shape
Element-wise operation preserving input shape

Parameters

input	The input tensor (may be scalar, rank 0).
parameters	Parameter tensors (not used in GELU).
output	The output tensor (resized to match input shape).
output_state	Cache for intermediate results (not used in current implementation).

Implements Mila::Dnn::Compute::UnaryOperation< DeviceType::Cpu, TensorDataType::FP32 >.

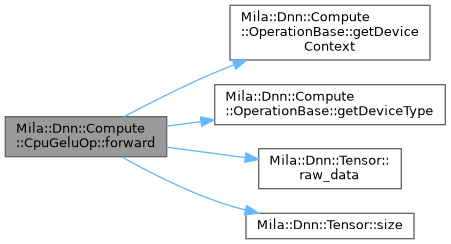

Here is the call graph for this function:

◆ getName()

std::string Mila::Dnn::Compute::CpuGeluOp::getName ( ) const

inlineoverridevirtual

Gets the name of this operation.

Returns: std::string The name of the operation ("Cpu::GeluOp").

Implements Mila::Dnn::Compute::Operation< TDeviceType, TInput >.

◆ getOperationType()

OperationType Mila::Dnn::Compute::CpuGeluOp::getOperationType ( ) const

inlineoverridevirtual

Operation type identifier.

Implements Mila::Dnn::Compute::Operation< TDeviceType, TInput >.

Member Data Documentation

◆ config_

GeluConfig Mila::Dnn::Compute::CpuGeluOp::config_

private

Configuration for the GELU operation (approximation method, etc.).

◆ context_

IExecutionContext* Mila::Dnn::Compute::CpuGeluOp::context_ { nullptr }

private

The documentation for this class was generated from the following file:

/__w/Mila/Mila/Mila/Src/Dnn/Compute/Devices/Cpu/Operations/CpuGeluOp.ixx
