CPU implementation of Linear operation using abstract TensorDataType API. More...

Inheritance diagram for Mila::Dnn::Compute::CpuLinearOp:

[legend]

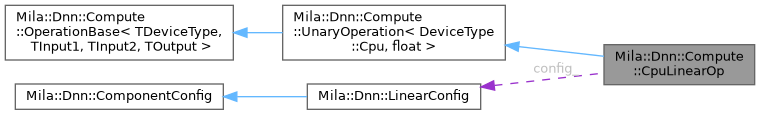

Collaboration diagram for Mila::Dnn::Compute::CpuLinearOp:

[legend]

Public Types
using	CpuExecutionContext = ExecutionContext<DeviceType::Cpu>
using	MR = CpuMemoryResource
using	TensorType = Tensor<TensorDataType::FP32, MR>
using	UnaryOperationBase = UnaryOperation<DeviceType::Cpu, TensorDataType::FP32>
Public Types inherited from Mila::Dnn::Compute::UnaryOperation< DeviceType::Cpu, TensorDataType::FP32 >
using	MR
using	TensorInputType
using	TensorOutputType
Public Types inherited from Mila::Dnn::Compute::Operation< TDeviceType, TInput >
using	DataTypeTraits

Public Member Functions
	CpuLinearOp (IExecutionContext *context, const LinearConfig &config)
void	backward (const ITensor &input, const ITensor &output_grad, ITensor &input_grad) const override
	Backward pass - HOT PATH, pure dispatch to CPU kernel.
void	build (const BuildContext &config) override
	Build the operation for a concrete input shape.
void	forward (const ITensor &input, ITensor &output) const override
	Forward pass - HOT PATH, pure dispatch to CPU kernel.
const LinearConfig &	getConfig () const
std::string	getName () const override
	Human-readable operation name.
OperationType	getOperationType () const override
	Operation type identifier.
void	setGradients (ITensor weight_grad, ITensor bias_grad) override
	Bind module-owned gradient tensors to the operation.
void	setParameters (ITensor weight, ITensor bias) override
	Set parameter tensor references (module remains owner).
Public Member Functions inherited from Mila::Dnn::Compute::UnaryOperation< DeviceType::Cpu, TensorDataType::FP32 >
virtual	~UnaryOperation ()=default
Public Member Functions inherited from Mila::Dnn::Compute::Operation< TDeviceType, TInput >
virtual	~Operation ()=default
virtual void	clearGradients () noexcept
	Clear any cached gradient pointers held by the operation.
virtual TensorDataType	getDataType () const
	Tensor data type for this operation.
virtual DeviceType	getDeviceType () const
	Device type for this operation.
virtual std::size_t	getStateMemorySize () const
	Returns the number of bytes of state memory allocated by this operation.
virtual bool	isBuilt () const
	Whether build() completed successfully for a concrete input shape.
virtual bool	isEvalMode () const
	Query whether operation is configured for training.
virtual void	setTrainingMode (TrainingMode training_mode)
	Configure operation training-mode behavior.

Private Member Functions
void	forwardNaive (const float X, float Y, const float W, const float B, int64_t batch_size, int64_t in_features, int64_t out_features) const
	Naive forward implementation without loop unrolling.
void	forwardUnrolled (const float X, float Y, const float W, const float B, int64_t batch_size, int64_t in_features, int64_t out_features) const
	Optimized forward implementation with loop unrolling.

Private Attributes
int64_t	batch_size_ { 0 }
const float *	bias_ { nullptr }
float *	bias_grad_ { nullptr }
LinearConfig	config_
IExecutionContext *	context_
bool	enable_omp_ { false }
int64_t	in_features_ { 0 }
int64_t	out_features_ { 0 }
bool	use_loop_unroll_ { false }
const float *	weight_ { nullptr }
float *	weight_grad_ { nullptr }
int64_t	weight_in_features_ { 0 }
int64_t	weight_out_features_ { 0 }

Static Private Attributes
static constexpr int	LOOP_UNROLL = 8

Additional Inherited Members
Static Public Attributes inherited from Mila::Dnn::Compute::Operation< TDeviceType, TInput >
static constexpr TensorDataType	data_type
static constexpr DeviceType	device_type
Static Protected Member Functions inherited from Mila::Dnn::Compute::UnaryOperation< DeviceType::Cpu, TensorDataType::FP32 >
static const TensorInputType &	asInputTensor (const ITensor &t)
static TensorOutputType &	asOutputTensor (ITensor &t)
Protected Attributes inherited from Mila::Dnn::Compute::Operation< TDeviceType, TInput >
bool	is_built_
TrainingMode	training_mode_

Detailed Description

CPU implementation of Linear operation using abstract TensorDataType API.

Template parameter TPrecision selects the abstract tensor precision (e.g. FP32). float is the corresponding CPU host representation for that precision.

Design philosophy:

Two-phase initialization: build() does all setup, forward()/backward() are pure dispatch
Module owns weight/bias parameters and binds them via setParameters()
All dimension computation happens once in build()
Forward/backward are hot-path methods with minimal overhead
Implements: y = x * W^T + b where W is (out_features, in_features)

Forward: Y = X * W^T + b Backward:

dX += dY * W
dW += dY^T * X
db += sum(dY)

Member Typedef Documentation

◆ CpuExecutionContext

using Mila::Dnn::Compute::CpuLinearOp::CpuExecutionContext = ExecutionContext<DeviceType::Cpu>

◆ MR

using Mila::Dnn::Compute::CpuLinearOp::MR = CpuMemoryResource

◆ TensorType

using Mila::Dnn::Compute::CpuLinearOp::TensorType = Tensor<TensorDataType::FP32, MR>

◆ UnaryOperationBase

using Mila::Dnn::Compute::CpuLinearOp::UnaryOperationBase = UnaryOperation<DeviceType::Cpu, TensorDataType::FP32>

Constructor & Destructor Documentation

◆ CpuLinearOp()

Mila::Dnn::Compute::CpuLinearOp::CpuLinearOp	(	IExecutionContext *	context,
		const LinearConfig &	config )

inline

Member Function Documentation

◆ backward()

void Mila::Dnn::Compute::CpuLinearOp::backward	(	const ITensor &	input,
		const ITensor &	output_grad,
		ITensor &	input_grad ) const

inlineoverridevirtual

Backward pass - HOT PATH, pure dispatch to CPU kernel.

Similar to forward(), this method does minimal work and dispatches directly to the backward kernel using cached dimensions from build().

Gradients are accumulated into the tensors provided via setParameterGradients().

Algorithm:

dX += dY * W
dW += dY^T * X
db += sum(dY)

Implements Mila::Dnn::Compute::UnaryOperation< DeviceType::Cpu, TensorDataType::FP32 >.

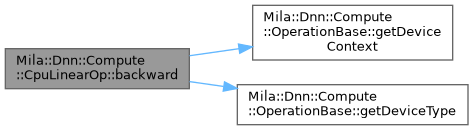

Here is the call graph for this function:

◆ build()

void Mila::Dnn::Compute::CpuLinearOp::build ( const BuildContext & config )

inlineoverridevirtual

Build the operation for a concrete input shape.

This is the COLD PATH where all setup, validation, and computation happens ONCE. After build() completes, forward() and backward() become pure dispatch methods.

Responsibilities:

Validate parameters were bound via setParameters()
Validate input shape compatibility with weight dimensions
Compute and cache batch size and feature dimensions
Determine optimal loop unrolling strategy
Cache OMP parallelization threshold

After build(), the operation is ready for zero-overhead forward/backward dispatch.

Reimplemented from Mila::Dnn::Compute::Operation< TDeviceType, TInput >.

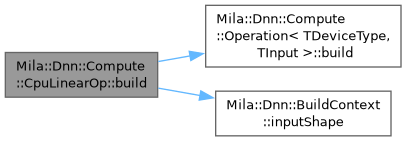

Here is the call graph for this function:

◆ forward()

void Mila::Dnn::Compute::CpuLinearOp::forward	(	const ITensor &	input,
		ITensor &	output ) const

inlineoverridevirtual

Forward pass - HOT PATH, pure dispatch to CPU kernel.

All setup, validation, and dimension computation was done in build(). This method extracts raw pointers and dispatches directly to the optimized matrix multiplication kernel using pre-computed cached dimensions.

Algorithm: Y = X * W^T + b Zero redundant work - maximum performance.

Implements Mila::Dnn::Compute::UnaryOperation< DeviceType::Cpu, TensorDataType::FP32 >.

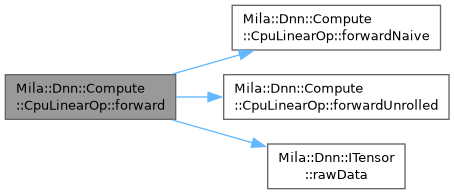

Here is the call graph for this function:

◆ forwardNaive()

void Mila::Dnn::Compute::CpuLinearOp::forwardNaive	(	const float *	X,
		float *	Y,
		const float *	W,
		const float *	B,
		int64_t	batch_size,
		int64_t	in_features,
		int64_t	out_features ) const

inlineprivate

Naive forward implementation without loop unrolling.

Used when batch size doesn't align with unroll factor.

Here is the caller graph for this function:

◆ forwardUnrolled()

void Mila::Dnn::Compute::CpuLinearOp::forwardUnrolled	(	const float *	X,
		float *	Y,
		const float *	W,
		const float *	B,
		int64_t	batch_size,
		int64_t	in_features,
		int64_t	out_features ) const

inlineprivate

Optimized forward implementation with loop unrolling.

Processes LOOP_UNROLL batch elements simultaneously for better cache utilization.

Here is the caller graph for this function:

◆ getConfig()

const LinearConfig & Mila::Dnn::Compute::CpuLinearOp::getConfig ( ) const

inline

◆ getName()

std::string Mila::Dnn::Compute::CpuLinearOp::getName ( ) const

inlineoverridevirtual

Human-readable operation name.

Implements Mila::Dnn::Compute::Operation< TDeviceType, TInput >.

◆ getOperationType()

OperationType Mila::Dnn::Compute::CpuLinearOp::getOperationType ( ) const

inlineoverridevirtual

Operation type identifier.

Implements Mila::Dnn::Compute::Operation< TDeviceType, TInput >.

◆ setGradients()

void Mila::Dnn::Compute::CpuLinearOp::setGradients	(	ITensor *	weight_grad,
		ITensor *	bias_grad )

inlineoverridevirtual

Bind module-owned gradient tensors to the operation.

New canonical API for binding gradient buffers. Mirrors semantics of setParameters() but for gradients used during backward().

The operation MUST NOT take ownership of the provided pointers. Implementations may cache rawData() pointers for hot-path writes.

Default: no-op for stateless operations.

Reimplemented from Mila::Dnn::Compute::Operation< TDeviceType, TInput >.

Here is the call graph for this function:

◆ setParameters()

void Mila::Dnn::Compute::CpuLinearOp::setParameters	(	ITensor *	weight,
		ITensor *	bias )

inlineoverridevirtual

Set parameter tensor references (module remains owner).

The operation caches native host pointers for hot-path access. The weight tensor is required; bias is bound only when the Linear config indicates a bias is present.

Note: build() requires parameters to be bound before it is called.

Reimplemented from Mila::Dnn::Compute::Operation< TDeviceType, TInput >.

Here is the call graph for this function:

Member Data Documentation

◆ batch_size_

int64_t Mila::Dnn::Compute::CpuLinearOp::batch_size_ { 0 }

private

◆ bias_

const float* Mila::Dnn::Compute::CpuLinearOp::bias_ { nullptr }

private

◆ bias_grad_

float* Mila::Dnn::Compute::CpuLinearOp::bias_grad_ { nullptr }

private

◆ config_

LinearConfig Mila::Dnn::Compute::CpuLinearOp::config_

private

◆ context_

IExecutionContext* Mila::Dnn::Compute::CpuLinearOp::context_

private

◆ enable_omp_

bool Mila::Dnn::Compute::CpuLinearOp::enable_omp_ { false }

private

◆ in_features_

int64_t Mila::Dnn::Compute::CpuLinearOp::in_features_ { 0 }

private

◆ LOOP_UNROLL

int Mila::Dnn::Compute::CpuLinearOp::LOOP_UNROLL = 8

staticconstexprprivate

◆ out_features_

int64_t Mila::Dnn::Compute::CpuLinearOp::out_features_ { 0 }

private

◆ use_loop_unroll_

bool Mila::Dnn::Compute::CpuLinearOp::use_loop_unroll_ { false }

private

◆ weight_

const float* Mila::Dnn::Compute::CpuLinearOp::weight_ { nullptr }

private

◆ weight_grad_

float* Mila::Dnn::Compute::CpuLinearOp::weight_grad_ { nullptr }

private

◆ weight_in_features_

int64_t Mila::Dnn::Compute::CpuLinearOp::weight_in_features_ { 0 }

private

◆ weight_out_features_

int64_t Mila::Dnn::Compute::CpuLinearOp::weight_out_features_ { 0 }

private

The documentation for this class was generated from the following file:

/__w/Mila/Mila/Mila/Src/Dnn/Compute/Devices/Cpu/Operations/CpuLinearOp.ixx
