CrossEntropy loss module for neural networks. More...

Inheritance diagram for Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >:

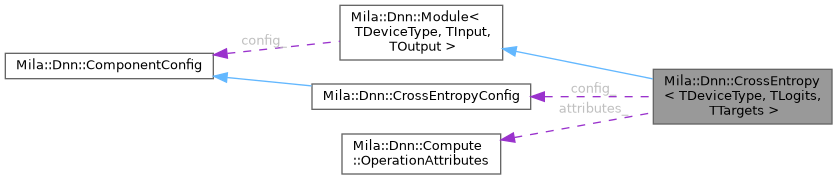

Collaboration diagram for Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >:

[legend]

Public Types
using	ModuleBase = Module< TDeviceType, TLogits, TTargets >
	Alias for base module type.

using	MR = std::conditional_t< TDeviceType==DeviceType::Cuda, CudaMemoryResource, CpuMemoryResource >
	Memory resource type used for tensors, selected based on device type.

Public Types inherited from Mila::Dnn::Module< TDeviceType, TInput, TOutput >
using	MR = std::conditional_t< TDeviceType==DeviceType::Cuda, CudaMemoryResource, CpuMemoryResource >

Public Member Functions
	CrossEntropy (const std::string &device_name, const CrossEntropyConfig &config)
	Constructs a new CrossEntropy module with a device name.

	CrossEntropy (std::shared_ptr< DeviceContext > device_context, const CrossEntropyConfig &config)
	Constructs a new CrossEntropy module with a provided device context.

void	backward (const Tensor< TLogits, MR > &input, const Tensor< TTargets, MR > &targets, const Tensor< TLogits, MR > &output_grad, Tensor< TLogits, MR > &input_grad)
	Calculates gradients for the backward pass.

void	forward (const Tensor< TLogits, MR > &input, const Tensor< TTargets, MR > &targets, Tensor< TLogits, MR > &output)
	Performs the forward pass of the cross entropy operation.

std::shared_ptr< Tensor< TLogits, MR > >	getClassWeights () const
	Gets the class weights tensor.

float	getLabelSmoothing () const
	Gets the label smoothing factor.

int64_t	getPaddingIndex () const
	Gets the padding index.

int64_t	getVocabSize () const
	Gets the vocabulary size.

bool	ignorePadding () const
	Checks if padding is ignored.

bool	isReduced () const
	Checks if loss is reduced.

void	load (ModelArchive &archive) override
	Deserializes the module state from a ZIP archive.

size_t	parameterCount () const override
	Gets the number of trainable parameters in this module.

void	save (ModelArchive &archive) const override
	Serializes the module state to a ZIP archive.

std::string	toString () const override
	Generates a string representation of this module's configuration.

Public Member Functions inherited from Mila::Dnn::Module< TDeviceType, TInput, TOutput >
	Module (const std::string &device_name, const ComponentConfig &config)
	Constructor with device name.

	Module (std::shared_ptr< DeviceContext > context, const ComponentConfig &config)
	Constructor with a specific device context.

virtual	~Module ()=default
	Virtual destructor for proper cleanup in derived classes.

std::shared_ptr< Compute::DeviceContext >	getDeviceContext () const
	Get the device context for this module.

Compute::DeviceType	getDeviceType () const
	Get the device type of the current device context.

std::string	getName () const
	Get the name of the module.

const auto &	getParameterTensors () const
	Get the parameter tensors of this module.

const ComputePrecision::Policy &	getPrecision () const

const auto &	getStateTensors () const
	Get the state tensors of this module.

bool	isTraining () const
	Check if the module is in training mode.

virtual void	setTraining (bool is_training)
	Set the training mode of this module.

Private Member Functions
void	createOperation ()
	Creates the appropriate cross entropy operation for the current device.

void	initializeClassWeights (const std::vector< float > &weights)
	Initializes the class weights tensor from a vector of weights.

Private Attributes
OperationAttributes	attributes_
	Operation attributes and configuration.

std::shared_ptr< Tensor< TLogits, MR > >	class_weights_ { nullptr }
	Optional tensor containing weights for each class.

CrossEntropyConfig	config_
	Configuration for the CrossEntropy module.

std::shared_ptr< UnaryOperation< TDeviceType, TLogits, TTargets > >	operation_ { nullptr }
	The operation that implements the cross entropy calculation.

std::vector< std::shared_ptr< Tensor< TLogits, MR > > >	output_state_
	Collection of output state tensors for caching.

std::vector< std::shared_ptr< Tensor< TLogits, MR > > >	parameters_
	Collection of parameters for this module.

Additional Inherited Members
Protected Member Functions inherited from Mila::Dnn::Module< TDeviceType, TInput, TOutput >
const std::string	parametersToString () const
	Helper method to convert parameters to string representation.

const std::string	stateToString () const
	Helper method to convert state tensors to string representation.

Protected Attributes inherited from Mila::Dnn::Module< TDeviceType, TInput, TOutput >
std::unordered_map< std::string, std::shared_ptr< Tensor< TOutput, MR > > >	parameter_map_ = {}
	Map of parameter names to parameter tensors.

std::unordered_map< std::string, std::shared_ptr< Tensor< TOutput, MR > > >	state_map_ = {}
	Map of state names to state tensors.

Detailed Description

template<DeviceType TDeviceType = DeviceType::Cuda, typename TLogits = float, typename TTargets = int>
requires ValidFloatTensorType<TLogits>
class Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >

CrossEntropy loss module for neural networks.

This class implements the cross entropy loss function, which is commonly used in classification tasks. It computes the negative log likelihood of the correct class given the predicted probabilities.

The cross entropy loss for a single example is calculated as: -log(p_i) where p_i is the predicted probability for the correct class i.

For multi-class problems with K classes, the formula is: L(y, ?) = -?(y_k * log(?_k)) for k=1 to K where y is the ground truth (one-hot) and ? is the predicted probability distribution.

Features supported by this implementation:

Class weighting for imbalanced datasets
Padding index ignoring for variable-length sequences
Label smoothing for regularization
Optional reduction (mean or none)

Template Parameters

TDeviceType	The device type (CPU or CUDA) on which to perform computations.
TLogits	The data type of the predicted probabilities (typically float).
TTargets	The data type of the target class indices (typically int).

Member Typedef Documentation

◆ ModuleBase

template<DeviceType TDeviceType = DeviceType::Cuda, typename TLogits = float, typename TTargets = int>

using Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >::ModuleBase = Module<TDeviceType, TLogits, TTargets>

export

Alias for base module type.

◆ MR

template<DeviceType TDeviceType = DeviceType::Cuda, typename TLogits = float, typename TTargets = int>

using Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >::MR = std::conditional_t<TDeviceType == DeviceType::Cuda, CudaMemoryResource, CpuMemoryResource>

export

Memory resource type used for tensors, selected based on device type.

Constructor & Destructor Documentation

◆ CrossEntropy() [1/2]

template<DeviceType TDeviceType = DeviceType::Cuda, typename TLogits = float, typename TTargets = int>

Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >::CrossEntropy	(	const std::string &	device_name,
		const CrossEntropyConfig &	config
	)

inlineexplicitexport

Constructs a new CrossEntropy module with a device name.

Creates a new DeviceContext internally using the provided device name. This constructor is useful for creating standalone modules without pre-existing device contexts.

Parameters

device_name	The name of the device to use (e.g., "CPU", "CUDA:0").
config	Configuration parameters for the CrossEntropy module.

Exceptions

std::invalid_argument	If the device name is invalid or the configuration is invalid
std::runtime_error	If device type doesn't match template parameter TDeviceType

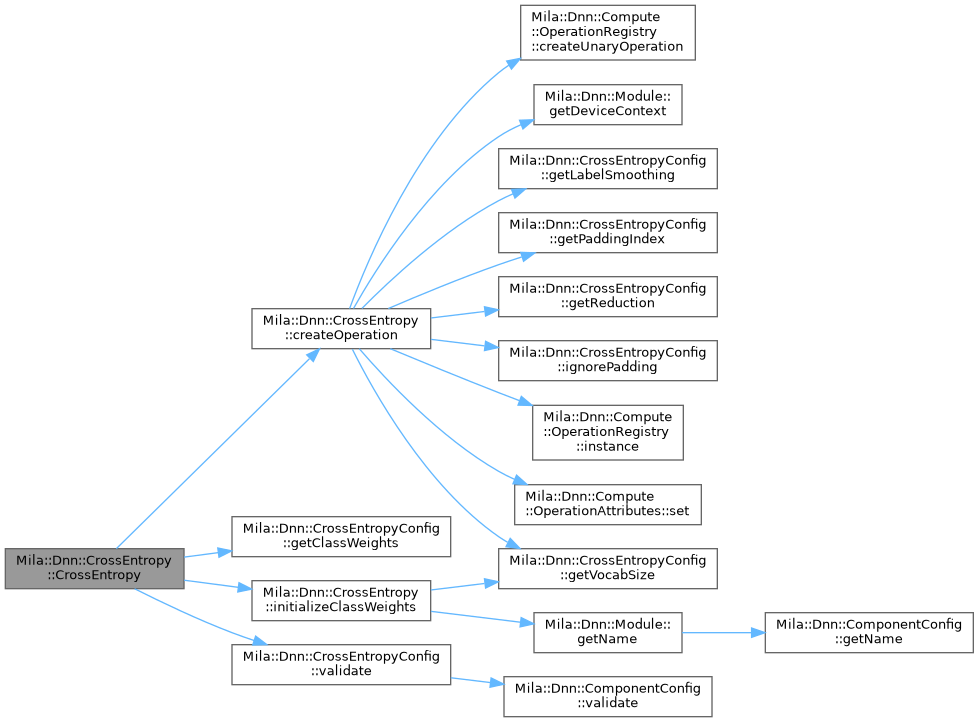

Here is the call graph for this function:

◆ CrossEntropy() [2/2]

template<DeviceType TDeviceType = DeviceType::Cuda, typename TLogits = float, typename TTargets = int>

Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >::CrossEntropy	(	std::shared_ptr< DeviceContext >	device_context,
		const CrossEntropyConfig &	config
	)

inlineexplicitexport

Constructs a new CrossEntropy module with a provided device context.

Uses a pre-existing DeviceContext instance. This constructor is useful when integrating the module into a larger network that shares device contexts across modules.

Parameters

device_context	The device context to use for this module.
config	Configuration parameters for the CrossEntropy module.

Exceptions

std::invalid_argument	If device_context is null or configuration is invalid
std::runtime_error	If device context type doesn't match template parameter TDeviceType

Here is the call graph for this function:

Member Function Documentation

◆ backward()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TLogits = float, typename TTargets = int>

void Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >::backward	(	const Tensor< TLogits, MR > &	input,
		const Tensor< TTargets, MR > &	targets,
		const Tensor< TLogits, MR > &	output_grad,
		Tensor< TLogits, MR > &	input_grad
	)

inlineexport

Calculates gradients for the backward pass.

Computes the gradient of the cross entropy loss with respect to the input logits. This gradient is used during backpropagation to update network weights.

Parameters

input	The input tensor from the forward pass (logits).
targets	The target tensor containing class indices.
output_grad	The gradient of loss with respect to the output.
input_grad	The tensor to store gradients with respect to input.

◆ createOperation()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TLogits = float, typename TTargets = int>

void Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >::createOperation ( )

inlineexportprivate

Creates the appropriate cross entropy operation for the current device.

Instantiates either a CPU or CUDA cross entropy operation based on the device type. Sets operation attributes from the configuration object.

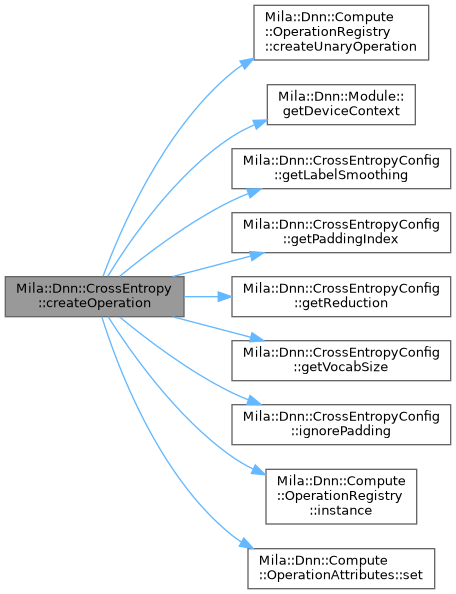

Here is the call graph for this function:

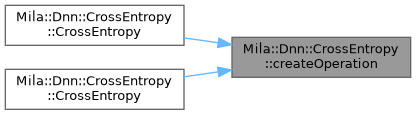

Here is the caller graph for this function:

◆ forward()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TLogits = float, typename TTargets = int>

void Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >::forward	(	const Tensor< TLogits, MR > &	input,
		const Tensor< TTargets, MR > &	targets,
		Tensor< TLogits, MR > &	output
	)

inlineexport

Performs the forward pass of the cross entropy operation.

Computes the cross entropy loss between the predicted logits and target indices. The operation applies any configured options such as class weighting, padding index ignoring, and label smoothing.

Parameters

input	The input tensor containing predicted logits.
targets	The target tensor containing class indices.
output	The output tensor that will contain the loss value(s).

◆ getClassWeights()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TLogits = float, typename TTargets = int>

std::shared_ptr< Tensor< TLogits, MR > > Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >::getClassWeights ( ) const

inlineexport

Gets the class weights tensor.

Returns: std::shared_ptr<Tensor<TLogits, MR>> The class weights tensor or nullptr if not used.

◆ getLabelSmoothing()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TLogits = float, typename TTargets = int>

float Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >::getLabelSmoothing ( ) const

inlineexport

Gets the label smoothing factor.

Returns: float The label smoothing factor (between 0 and 1).

Here is the call graph for this function:

◆ getPaddingIndex()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TLogits = float, typename TTargets = int>

int64_t Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >::getPaddingIndex ( ) const

inlineexport

Gets the padding index.

Returns: int64_t The index value that represents padding.

Here is the call graph for this function:

◆ getVocabSize()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TLogits = float, typename TTargets = int>

int64_t Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >::getVocabSize ( ) const

inlineexport

Gets the vocabulary size.

Returns: int64_t The number of possible classes.

Here is the call graph for this function:

◆ ignorePadding()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TLogits = float, typename TTargets = int>

bool Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >::ignorePadding ( ) const

inlineexport

Checks if padding is ignored.

Returns: bool True if padding indices are ignored, false otherwise.

Here is the call graph for this function:

◆ initializeClassWeights()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TLogits = float, typename TTargets = int>

void Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >::initializeClassWeights ( const std::vector< float > & weights )

inlineexportprivate

Initializes the class weights tensor from a vector of weights.

Creates and populates a tensor with class weights for weighted cross entropy loss. This is useful for handling imbalanced datasets where some classes are underrepresented.

Parameters

weights Vector of weight values, one per class

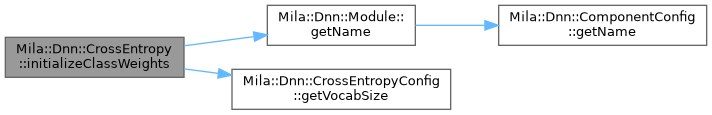

Here is the call graph for this function:

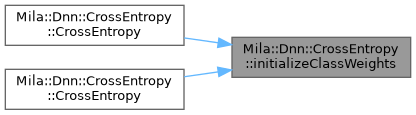

Here is the caller graph for this function:

◆ isReduced()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TLogits = float, typename TTargets = int>

bool Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >::isReduced ( ) const

inlineexport

Checks if loss is reduced.

Returns: bool True if loss is reduced (mean), false if per-sample losses are returned.

Here is the call graph for this function:

◆ load()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TLogits = float, typename TTargets = int>

void Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >::load ( ModelArchive & archive )

inlineoverrideexportvirtual

Deserializes the module state from a ZIP archive.

Loads the class weights tensor (if expected) from the provided ZIP archive.

Parameters

zip	The ZIP archive to load the module state from.

Implements Mila::Dnn::Module< TDeviceType, TInput, TOutput >.

◆ parameterCount()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TLogits = float, typename TTargets = int>

size_t Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >::parameterCount ( ) const

inlineoverrideexportvirtual

Gets the number of trainable parameters in this module.

Returns the number of elements in the class weights tensor if present, otherwise returns 0 since CrossEntropy doesn't have trainable parameters.

Returns: size_t The total number of parameters.

Implements Mila::Dnn::Module< TDeviceType, TInput, TOutput >.

◆ save()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TLogits = float, typename TTargets = int>

void Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >::save ( ModelArchive & archive ) const

inlineoverrideexportvirtual

Serializes the module state to a ZIP archive.

Saves the class weights tensor (if present) to the provided ZIP archive.

Parameters

zip	The ZIP archive to save the module state to.

Implements Mila::Dnn::Module< TDeviceType, TInput, TOutput >.

◆ toString()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TLogits = float, typename TTargets = int>

std::string Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >::toString ( ) const

inlineoverrideexportvirtual

Generates a string representation of this module's configuration.

Returns: std::string A formatted string with module information

Implements Mila::Dnn::Module< TDeviceType, TInput, TOutput >.

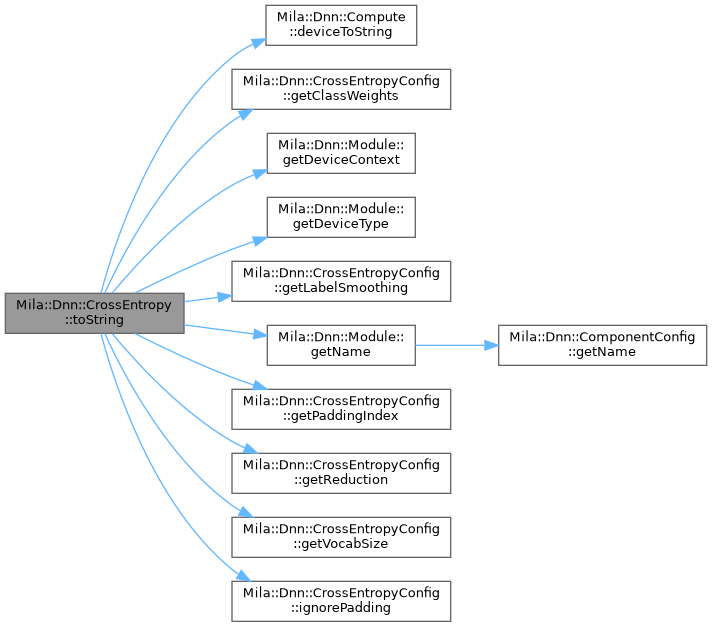

Here is the call graph for this function:

Member Data Documentation

◆ attributes_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TLogits = float, typename TTargets = int>

OperationAttributes Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >::attributes_

exportprivate

Operation attributes and configuration.

Contains settings for the CrossEntropy operation like padding index, reduction mode, etc.

◆ class_weights_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TLogits = float, typename TTargets = int>

std::shared_ptr<Tensor<TLogits, MR> > Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >::class_weights_ { nullptr }

exportprivate

Optional tensor containing weights for each class.

Used to address class imbalance by giving different importance to different classes.

◆ config_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TLogits = float, typename TTargets = int>

CrossEntropyConfig Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >::config_

exportprivate

Configuration for the CrossEntropy module.

◆ operation_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TLogits = float, typename TTargets = int>

std::shared_ptr<UnaryOperation<TDeviceType, TLogits, TTargets> > Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >::operation_ { nullptr }

exportprivate

The operation that implements the cross entropy calculation.

◆ output_state_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TLogits = float, typename TTargets = int>

std::vector<std::shared_ptr<Tensor<TLogits, MR> > > Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >::output_state_

exportprivate

Collection of output state tensors for caching.

Stores intermediate results from forward pass needed for backward pass.

◆ parameters_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TLogits = float, typename TTargets = int>

std::vector<std::shared_ptr<Tensor<TLogits, MR> > > Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >::parameters_

exportprivate

Collection of parameters for this module.

Only contains class_weights_ if present, otherwise empty.

The documentation for this class was generated from the following file:

/home/runner/work/Mila/Mila/Mila/Src/Dnn/Modules/Losses/CrossEntropy.ixx

Public Types

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ModuleBase

◆ MR

Constructor & Destructor Documentation

◆ CrossEntropy() [1/2]

◆ CrossEntropy() [2/2]

Member Function Documentation

◆ backward()

◆ createOperation()

◆ forward()

◆ getClassWeights()

◆ getLabelSmoothing()

◆ getPaddingIndex()

◆ getVocabSize()

◆ ignorePadding()

◆ initializeClassWeights()

◆ isReduced()

◆ load()

◆ parameterCount()

◆ save()

◆ toString()

Member Data Documentation

◆ attributes_

◆ class_weights_

◆ config_

◆ operation_

◆ output_state_

◆ parameters_
