Abstract base class for all modules in the Mila DNN framework. More...

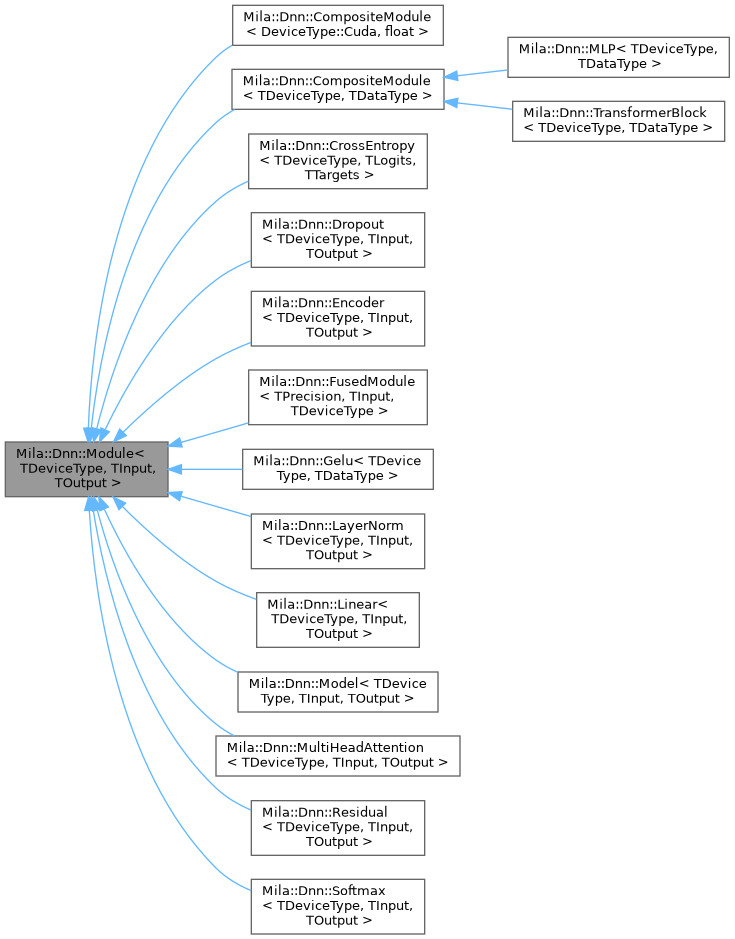

Inheritance diagram for Mila::Dnn::Module< TDeviceType, TInput, TOutput >:

[legend]

Collaboration diagram for Mila::Dnn::Module< TDeviceType, TInput, TOutput >:

Public Types
using	MR = std::conditional_t< TDeviceType==DeviceType::Cuda, CudaMemoryResource, CpuMemoryResource >

Public Member Functions
	Module (const std::string &device_name, const ComponentConfig &config)
	Constructor with device name.

	Module (std::shared_ptr< DeviceContext > context, const ComponentConfig &config)
	Constructor with a specific device context.

virtual	~Module ()=default
	Virtual destructor for proper cleanup in derived classes.

std::shared_ptr< Compute::DeviceContext >	getDeviceContext () const
	Get the device context for this module.

Compute::DeviceType	getDeviceType () const
	Get the device type of the current device context.

std::string	getName () const
	Get the name of the module.

const auto &	getParameterTensors () const
	Get the parameter tensors of this module.

const ComputePrecision::Policy &	getPrecision () const

const auto &	getStateTensors () const
	Get the state tensors of this module.

bool	isTraining () const
	Check if the module is in training mode.

virtual void	load (ModelArchive &archive)=0
	Load the module state from a zip archive.

virtual size_t	parameterCount () const =0
	Get the number of trainable parameters in the module.

virtual void	save (ModelArchive &archive) const =0
	Save the module state to a zip archive.

virtual void	setTraining (bool is_training)
	Set the training mode of this module.

virtual std::string	toString () const =0
	Convert the module to a string representation.

Protected Member Functions
const std::string	parametersToString () const
	Helper method to convert parameters to string representation.

const std::string	stateToString () const
	Helper method to convert state tensors to string representation.

Protected Attributes
std::unordered_map< std::string, std::shared_ptr< Tensor< TOutput, MR > > >	parameter_map_ = {}
	Map of parameter names to parameter tensors.

std::unordered_map< std::string, std::shared_ptr< Tensor< TOutput, MR > > >	state_map_ = {}
	Map of state names to state tensors.

Static Private Member Functions
static std::shared_ptr< Compute::DeviceContext >	createContext (const std::string &device_name)
	Helper method to create a DeviceContext from a device name.

Private Attributes
ComponentConfig	config_

std::shared_ptr< Compute::DeviceContext >	device_context_
	The device context used for this module's computations.

bool	training_mode_ { false }
	Whether the module is in training mode.

Friends
std::ostream &	operator<< (std::ostream &os, const Module &module)
	Overload the << operator to print the module information.

Detailed Description

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>
requires ValidTensorType<TInput> && ValidFloatTensorType<TOutput>
class Mila::Dnn::Module< TDeviceType, TInput, TOutput >

Abstract base class for all modules in the Mila DNN framework.

The Module class provides a common interface for all neural network layers and components, enabling consistent handling of parameters, state, and device context. For container functionality that supports child modules, use the Block class.

Template Parameters

TDeviceType	The device type (CPU or CUDA) on which the module will operate.
TInput	Data type of the input tensor elements.
TOutput	Data type of the output tensor elements, defaults to TInput.

Member Typedef Documentation

◆ MR

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

using Mila::Dnn::Module< TDeviceType, TInput, TOutput >::MR = std::conditional_t<TDeviceType == DeviceType::Cuda, CudaMemoryResource, CpuMemoryResource>

Constructor & Destructor Documentation

◆ Module() [1/2]

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

Mila::Dnn::Module< TDeviceType, TInput, TOutput >::Module	(	const std::string &	device_name,
		const ComponentConfig &	config
	)

inlineexplicit

Constructor with device name.

Creates a module with a device context for the specified device name. This allows modules to be created with a simple string identifier rather than requiring manual construction of a DeviceContext.

Parameters

device_name	The name of the device to use (e.g., "CPU", "CUDA:0"). Must be one of the names returned by DeviceRegistry::list_devices().
policy	The compute precision policy to use (default is Auto).

Exceptions

std::runtime_error If the specified device name is invalid or doesn't match TDeviceType.

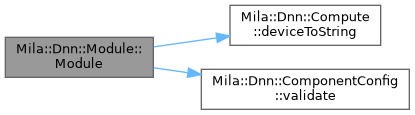

Here is the call graph for this function:

◆ Module() [2/2]

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

Mila::Dnn::Module< TDeviceType, TInput, TOutput >::Module	(	std::shared_ptr< DeviceContext >	context,
		const ComponentConfig &	config
	)

inlineexplicit

Constructor with a specific device context.

Parameters

context	The device context to use for this module.
policy	The compute precision policy to use (default is Auto).

Exceptions

std::invalid_argument	If the provided context is nullptr.
std::runtime_error	If the context device type doesn't match TDeviceType.

Here is the call graph for this function:

◆ ~Module()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

virtual Mila::Dnn::Module< TDeviceType, TInput, TOutput >::~Module ( )

virtualdefault

Virtual destructor for proper cleanup in derived classes.

Member Function Documentation

◆ createContext()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

static std::shared_ptr< Compute::DeviceContext > Mila::Dnn::Module< TDeviceType, TInput, TOutput >::createContext ( const std::string & device_name )

inlinestaticprivate

Helper method to create a DeviceContext from a device name.

Parameters

device_name Name of the device to create a context for.

Returns: std::shared_ptr<DeviceContext> The created device context.

Exceptions

std::runtime_error If the device name is invalid.

◆ getDeviceContext()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

std::shared_ptr< Compute::DeviceContext > Mila::Dnn::Module< TDeviceType, TInput, TOutput >::getDeviceContext ( ) const

inline

Get the device context for this module.

Returns a shared pointer to the device context that this module is currently using.

Returns: std::shared_ptr<Compute::DeviceContext> The device context.

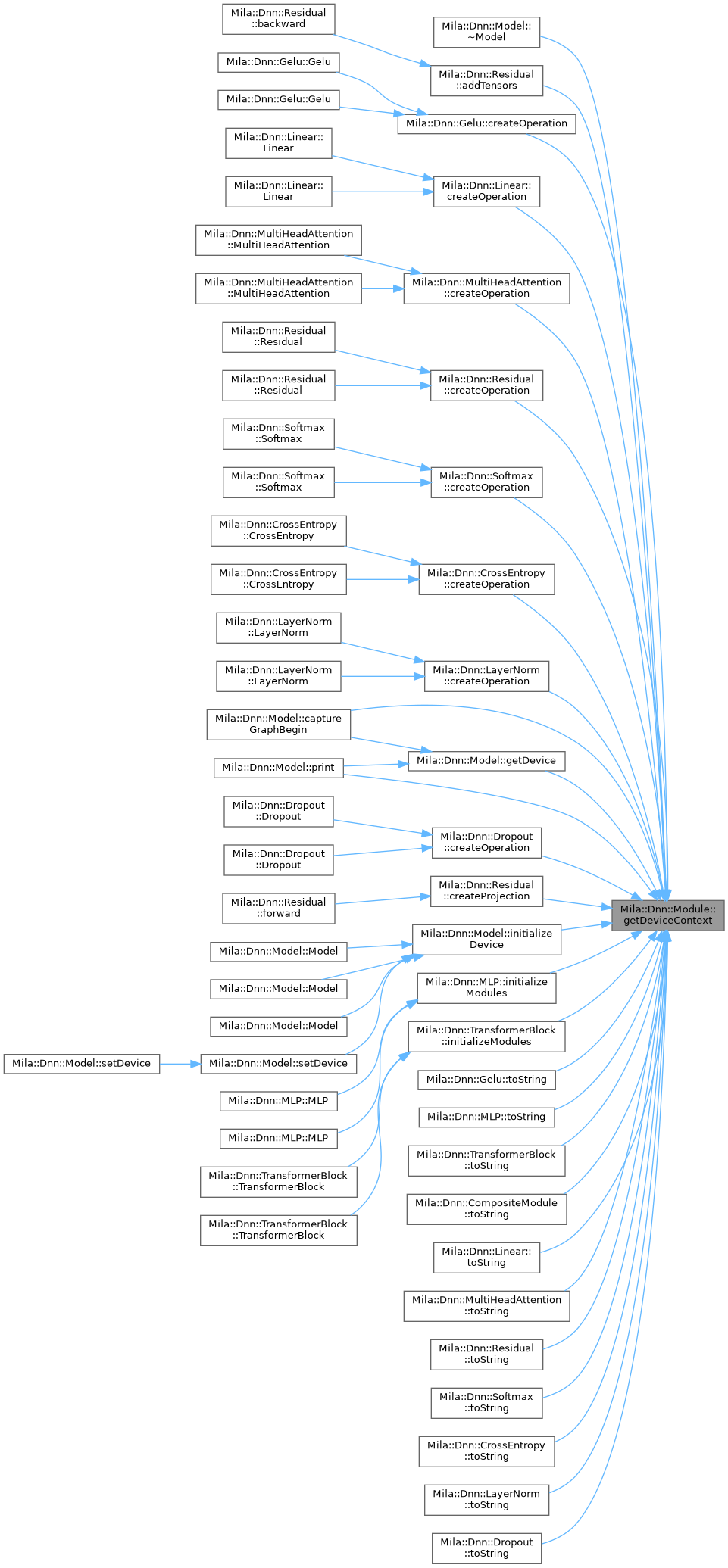

Here is the caller graph for this function:

◆ getDeviceType()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

Compute::DeviceType Mila::Dnn::Module< TDeviceType, TInput, TOutput >::getDeviceType ( ) const

inline

Get the device type of the current device context.

Returns: Compute::DeviceType The device type (CPU or CUDA).

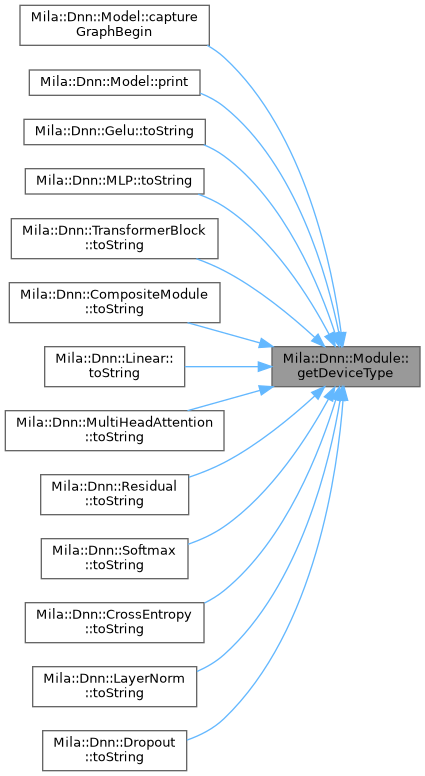

Here is the caller graph for this function:

◆ getName()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

std::string Mila::Dnn::Module< TDeviceType, TInput, TOutput >::getName ( ) const

inline

Get the name of the module.

Returns: std::string Name of the module.

Here is the call graph for this function:

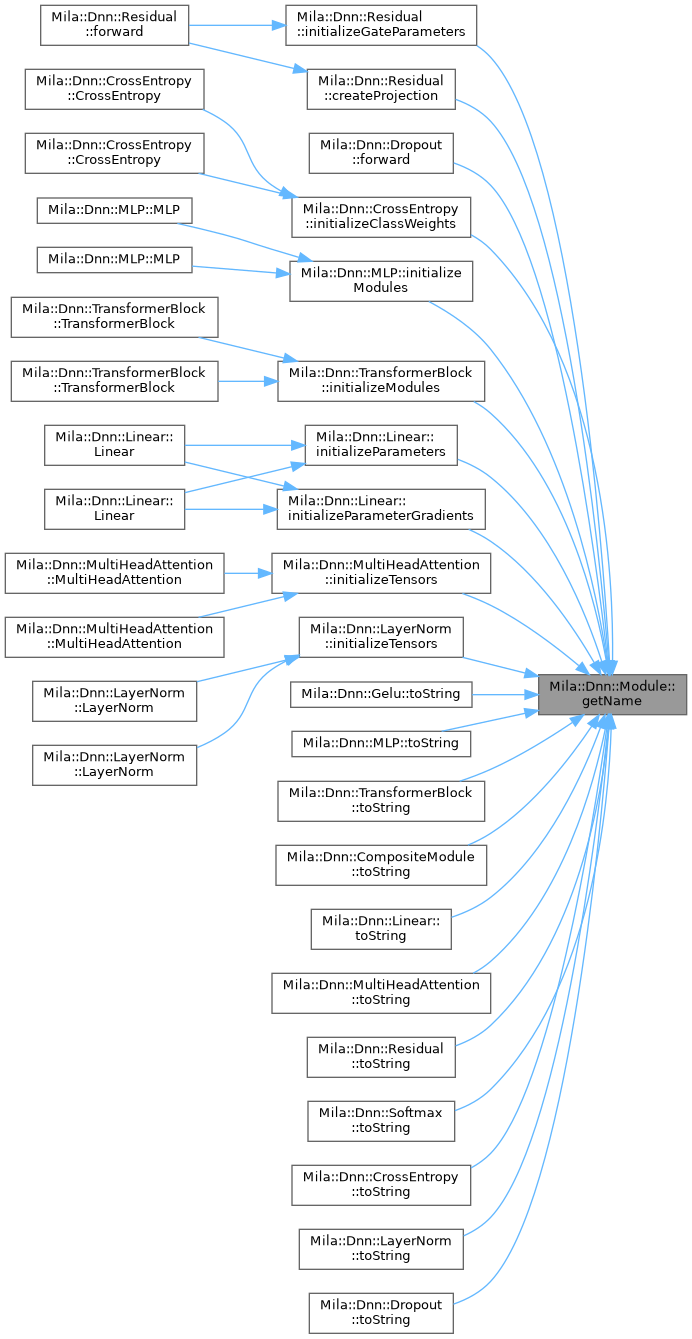

Here is the caller graph for this function:

◆ getParameterTensors()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

const auto & Mila::Dnn::Module< TDeviceType, TInput, TOutput >::getParameterTensors ( ) const

inline

Get the parameter tensors of this module.

Parameter tensors represent learnable weights that are updated during training via gradient descent or other optimization algorithms.

Returns: const std::unordered_map<std::string, std::shared_ptr<Tensor<TDataType, MR>>>& Map of parameter names to tensor pointers.

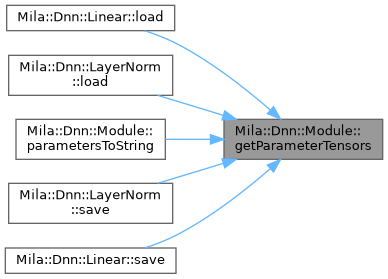

Here is the caller graph for this function:

◆ getPrecision()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

const ComputePrecision::Policy & Mila::Dnn::Module< TDeviceType, TInput, TOutput >::getPrecision ( ) const

inline

Here is the call graph for this function:

◆ getStateTensors()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

const auto & Mila::Dnn::Module< TDeviceType, TInput, TOutput >::getStateTensors ( ) const

inline

Get the state tensors of this module.

State tensors represent non-trainable tensors that may be updated during forward/backward passes (e.g., running mean and variance in batch normalization).

Template Parameters

TMR	Memory resource type (defaults to the module's MR type).

Returns: const std::unordered_map<std::string, std::shared_ptr<Tensor<TDataType, MR>>>& Map of state names to tensor pointers.

Here is the caller graph for this function:

◆ isTraining()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

bool Mila::Dnn::Module< TDeviceType, TInput, TOutput >::isTraining ( ) const

inline

Check if the module is in training mode.

Returns: true If the module is in training mode.; false If the module is in inference mode.

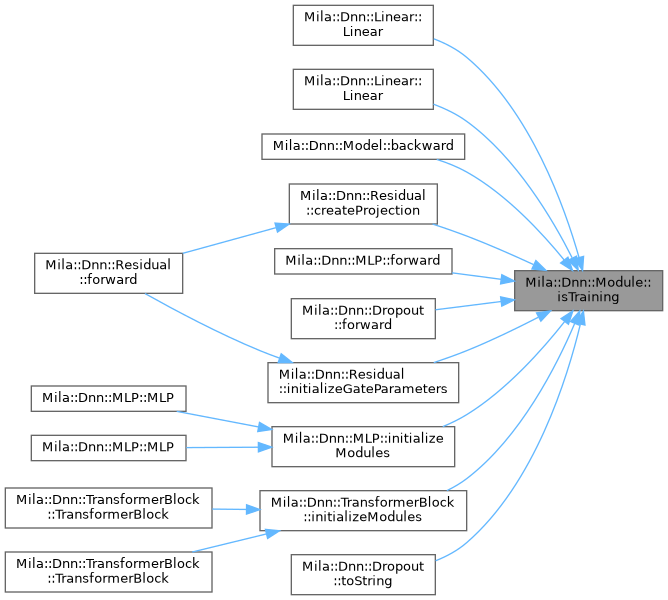

Here is the caller graph for this function:

◆ load()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

virtual void Mila::Dnn::Module< TDeviceType, TInput, TOutput >::load ( ModelArchive & archive )

pure virtual

Load the module state from a zip archive.

Deserializes the module's parameters and state from the provided zip archive. This enables loading pre-trained models for inference or continued training.

Parameters

zip	The zip archive to load the state from.

Implemented in Mila::Dnn::Gelu< TDeviceType, TDataType >, Mila::Dnn::MLP< TDeviceType, TDataType >, Mila::Dnn::TransformerBlock< TDeviceType, TDataType >, Mila::Dnn::CompositeModule< TDeviceType, TDataType >, Mila::Dnn::CompositeModule< DeviceType::Cuda, float >, Mila::Dnn::Encoder< TDeviceType, TInput, TOutput >, Mila::Dnn::Linear< TDeviceType, TInput, TOutput >, Mila::Dnn::MultiHeadAttention< TDeviceType, TInput, TOutput >, Mila::Dnn::Residual< TDeviceType, TInput, TOutput >, Mila::Dnn::Softmax< TDeviceType, TInput, TOutput >, Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >, Mila::Dnn::LayerNorm< TDeviceType, TInput, TOutput >, and Mila::Dnn::Dropout< TDeviceType, TInput, TOutput >.

◆ parameterCount()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

virtual size_t Mila::Dnn::Module< TDeviceType, TInput, TOutput >::parameterCount ( ) const

pure virtual

Get the number of trainable parameters in the module.

This should count only the parameters in this specific module.

Returns: size_t Total number of parameters.

Implemented in Mila::Dnn::Gelu< TDeviceType, TDataType >, Mila::Dnn::MLP< TDeviceType, TDataType >, Mila::Dnn::TransformerBlock< TDeviceType, TDataType >, Mila::Dnn::CompositeModule< TDeviceType, TDataType >, Mila::Dnn::CompositeModule< DeviceType::Cuda, float >, Mila::Dnn::Encoder< TDeviceType, TInput, TOutput >, Mila::Dnn::Linear< TDeviceType, TInput, TOutput >, Mila::Dnn::MultiHeadAttention< TDeviceType, TInput, TOutput >, Mila::Dnn::Residual< TDeviceType, TInput, TOutput >, Mila::Dnn::Softmax< TDeviceType, TInput, TOutput >, Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >, Mila::Dnn::LayerNorm< TDeviceType, TInput, TOutput >, and Mila::Dnn::Dropout< TDeviceType, TInput, TOutput >.

Here is the caller graph for this function:

◆ parametersToString()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

const std::string Mila::Dnn::Module< TDeviceType, TInput, TOutput >::parametersToString ( ) const

inlineprotected

Helper method to convert parameters to string representation.

Returns: std::string String representation of all parameters.

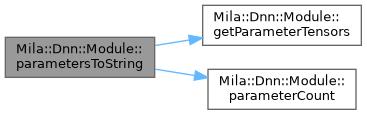

Here is the call graph for this function:

◆ save()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

virtual void Mila::Dnn::Module< TDeviceType, TInput, TOutput >::save ( ModelArchive & archive ) const

pure virtual

Save the module state to a zip archive.

Serializes the module's parameters and state to the provided zip archive. This enables model persistence for later reuse.

Parameters

archive The archive to save the state to.

Implemented in Mila::Dnn::MLP< TDeviceType, TDataType >, Mila::Dnn::TransformerBlock< TDeviceType, TDataType >, Mila::Dnn::CompositeModule< TDeviceType, TDataType >, Mila::Dnn::CompositeModule< DeviceType::Cuda, float >, Mila::Dnn::Encoder< TDeviceType, TInput, TOutput >, Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >, Mila::Dnn::LayerNorm< TDeviceType, TInput, TOutput >, Mila::Dnn::Dropout< TDeviceType, TInput, TOutput >, Mila::Dnn::Gelu< TDeviceType, TDataType >, Mila::Dnn::Linear< TDeviceType, TInput, TOutput >, Mila::Dnn::MultiHeadAttention< TDeviceType, TInput, TOutput >, Mila::Dnn::Residual< TDeviceType, TInput, TOutput >, and Mila::Dnn::Softmax< TDeviceType, TInput, TOutput >.

◆ setTraining()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

virtual void Mila::Dnn::Module< TDeviceType, TInput, TOutput >::setTraining ( bool is_training )

inlinevirtual

Set the training mode of this module.

Parameters

is_training True if the module is in training mode, false for inference.

Reimplemented in Mila::Dnn::CompositeModule< TDeviceType, TDataType >, and Mila::Dnn::CompositeModule< DeviceType::Cuda, float >.

Here is the caller graph for this function:

◆ stateToString()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

const std::string Mila::Dnn::Module< TDeviceType, TInput, TOutput >::stateToString ( ) const

inlineprotected

Helper method to convert state tensors to string representation.

Returns: std::string String representation of all state tensors.

Here is the call graph for this function:

◆ toString()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

virtual std::string Mila::Dnn::Module< TDeviceType, TInput, TOutput >::toString ( ) const

pure virtual

Convert the module to a string representation.

This should include relevant information about the module structure, parameters, and configuration for debugging and logging purposes.

Returns: std::string String representation of the module.

Implemented in Mila::Dnn::Gelu< TDeviceType, TDataType >, Mila::Dnn::MLP< TDeviceType, TDataType >, Mila::Dnn::TransformerBlock< TDeviceType, TDataType >, Mila::Dnn::CompositeModule< TDeviceType, TDataType >, Mila::Dnn::CompositeModule< DeviceType::Cuda, float >, Mila::Dnn::Encoder< TDeviceType, TInput, TOutput >, Mila::Dnn::Linear< TDeviceType, TInput, TOutput >, Mila::Dnn::MultiHeadAttention< TDeviceType, TInput, TOutput >, Mila::Dnn::Residual< TDeviceType, TInput, TOutput >, Mila::Dnn::Softmax< TDeviceType, TInput, TOutput >, Mila::Dnn::CrossEntropy< TDeviceType, TLogits, TTargets >, Mila::Dnn::LayerNorm< TDeviceType, TInput, TOutput >, and Mila::Dnn::Dropout< TDeviceType, TInput, TOutput >.

Friends And Related Symbol Documentation

◆ operator<<

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

std::ostream & operator<<	(	std::ostream &	os,
		const Module< TDeviceType, TInput, TOutput > &	module
	)

friend

Overload the << operator to print the module information.

Parameters

os	Output stream.
module	Module to print.

Returns: std::ostream& Reference to the output stream.

Member Data Documentation

◆ config_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

ComponentConfig Mila::Dnn::Module< TDeviceType, TInput, TOutput >::config_

private

◆ device_context_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

std::shared_ptr<Compute::DeviceContext> Mila::Dnn::Module< TDeviceType, TInput, TOutput >::device_context_

private

The device context used for this module's computations.

◆ parameter_map_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

std::unordered_map<std::string, std::shared_ptr<Tensor<TOutput, MR> > > Mila::Dnn::Module< TDeviceType, TInput, TOutput >::parameter_map_ = {}

protected

Map of parameter names to parameter tensors.

◆ state_map_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

std::unordered_map<std::string, std::shared_ptr<Tensor<TOutput, MR> > > Mila::Dnn::Module< TDeviceType, TInput, TOutput >::state_map_ = {}

protected

Map of state names to state tensors.

◆ training_mode_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

bool Mila::Dnn::Module< TDeviceType, TInput, TOutput >::training_mode_ { false }

private

Whether the module is in training mode.

Default is false

The documentation for this class was generated from the following file:

/home/runner/work/Mila/Mila/Mila/Src/Dnn/Modules/Module.ixx

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Static Private Member Functions

Private Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ MR

Constructor & Destructor Documentation

◆ Module() [1/2]

◆ Module() [2/2]

◆ ~Module()

Member Function Documentation

◆ createContext()

◆ getDeviceContext()

◆ getDeviceType()

◆ getName()

◆ getParameterTensors()

◆ getPrecision()

◆ getStateTensors()

◆ isTraining()

◆ load()

◆ parameterCount()

◆ parametersToString()

◆ save()

◆ setTraining()

◆ stateToString()

◆ toString()

Friends And Related Symbol Documentation

◆ operator<<

Member Data Documentation

◆ config_

◆ device_context_

◆ parameter_map_

◆ state_map_

◆ training_mode_
