An encoder module that provides token and positional embeddings. More...

Inheritance diagram for Mila::Dnn::Encoder< TDeviceType, TInput, TOutput >:

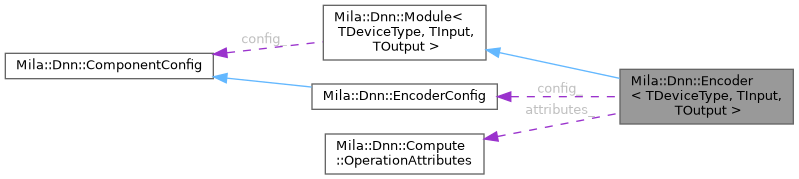

Collaboration diagram for Mila::Dnn::Encoder< TDeviceType, TInput, TOutput >:

[legend]

Public Types
using	ModuleBase = Module< TDeviceType, TInput, TOutput >
	Alias for base module type.

using	MR = std::conditional_t< TDeviceType==DeviceType::Cuda, CudaMemoryResource, CpuMemoryResource >
	Memory resource type determined based on device type.

Public Types inherited from Mila::Dnn::Module< TDeviceType, TInput, TOutput >
using	MR = std::conditional_t< TDeviceType==DeviceType::Cuda, CudaMemoryResource, CpuMemoryResource >

Public Member Functions
	Encoder (const std::string &device_name, const EncoderConfig &config)
	Constructs a new Encoder module with a device name.

	Encoder (std::shared_ptr< DeviceContext > device_context, const EncoderConfig &config)
	Constructs a new Encoder module with a provided device context.

void	forward (const Tensor< TInput, MR > &input, Tensor< TOutput, MR > &output)
	Performs the forward pass of the encoder.

size_t	getChannels () const
	Gets the number of channels (embedding dimension).

size_t	getMaxSequenceLength () const
	Gets the maximum sequence length.

size_t	getVocabularyLength () const
	Gets the vocabulary length.

void	load (ModelArchive &archive) override
	Loads the encoder parameters from a zip archive.

size_t	parameterCount () const override
	Gets the number of parameters in the module.

void	save (ModelArchive &archive) const override
	Saves the encoder parameters to a zip archive.

std::string	toString () const override
	Gets the module information as a string.

Public Member Functions inherited from Mila::Dnn::Module< TDeviceType, TInput, TOutput >
	Module (const std::string &device_name, const ComponentConfig &config)
	Constructor with device name.

	Module (std::shared_ptr< DeviceContext > context, const ComponentConfig &config)
	Constructor with a specific device context.

virtual	~Module ()=default
	Virtual destructor for proper cleanup in derived classes.

std::shared_ptr< Compute::DeviceContext >	getDeviceContext () const
	Get the device context for this module.

Compute::DeviceType	getDeviceType () const
	Get the device type of the current device context.

std::string	getName () const
	Get the name of the module.

const auto &	getParameterTensors () const
	Get the parameter tensors of this module.

const ComputePrecision::Policy &	getPrecision () const

const auto &	getStateTensors () const
	Get the state tensors of this module.

bool	isTraining () const
	Check if the module is in training mode.

virtual void	setTraining (bool is_training)
	Set the training mode of this module.

Private Member Functions
void	createOperation ()
	Creates the computational operation based on current device context.

void	initializeTensors ()
	Initializes the token and positional embedding tensors.

Private Attributes
OperationAttributes	attributes_
	Operation-specific attributes and configuration.

EncoderConfig	config_
	Configuration for the Encoder module.

std::shared_ptr< UnaryOperation< TDeviceType, TInput, TOutput > >	operation_ { nullptr }
	The computational operation that implements the encoder logic.

std::vector< std::shared_ptr< Tensor< TOutput, MR > > >	output_state_
	Output state tensors used for intermediate values.

std::vector< std::shared_ptr< Tensor< TOutput, MR > > >	parameters_
	Vector of parameter tensors that will be used during forward/backward passes.

std::shared_ptr< Tensor< TOutput, MR > >	wpe_ { nullptr }
	Position embedding table with shape (maxT,C), encodes token position information.

std::shared_ptr< Tensor< TOutput, MR > >	wte_ { nullptr }
	Token embedding table with shape (V,C), maps token IDs to vector representations.

Additional Inherited Members
Protected Member Functions inherited from Mila::Dnn::Module< TDeviceType, TInput, TOutput >
const std::string	parametersToString () const
	Helper method to convert parameters to string representation.

const std::string	stateToString () const
	Helper method to convert state tensors to string representation.

Protected Attributes inherited from Mila::Dnn::Module< TDeviceType, TInput, TOutput >
std::unordered_map< std::string, std::shared_ptr< Tensor< TOutput, MR > > >	parameter_map_ = {}
	Map of parameter names to parameter tensors.

std::unordered_map< std::string, std::shared_ptr< Tensor< TOutput, MR > > >	state_map_ = {}
	Map of state names to state tensors.

Detailed Description

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = int, typename TOutput = float>
requires ValidTensorType<TInput>&& ValidFloatTensorType<TOutput>
class Mila::Dnn::Encoder< TDeviceType, TInput, TOutput >

An encoder module that provides token and positional embeddings.

The Encoder transforms input token IDs into continuous vector representations by:

Looking up token embeddings from a vocabulary table (wte)
Adding positional embeddings (wpe) based on sequence position

This implementation supports both CPU and CUDA execution depending on the device context. The encoder is a fundamental component in transformer architectures, providing the initial representation of tokens that subsequent layers will process.

Template Parameters

TDeviceType	The device type (CPU or CUDA) on which to perform computations.
TInput	The data type of the input token IDs (typically int).
TOutput	The data type of the output embeddings (typically float).

Member Typedef Documentation

◆ ModuleBase

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = int, typename TOutput = float>

using Mila::Dnn::Encoder< TDeviceType, TInput, TOutput >::ModuleBase = Module<TDeviceType, TInput, TOutput>

export

Alias for base module type.

◆ MR

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = int, typename TOutput = float>

using Mila::Dnn::Encoder< TDeviceType, TInput, TOutput >::MR = std::conditional_t<TDeviceType == DeviceType::Cuda, CudaMemoryResource, CpuMemoryResource>

export

Memory resource type determined based on device type.

Constructor & Destructor Documentation

◆ Encoder() [1/2]

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = int, typename TOutput = float>

Mila::Dnn::Encoder< TDeviceType, TInput, TOutput >::Encoder	(	const std::string &	device_name,
		const EncoderConfig &	config
	)

inlineexplicitexport

Constructs a new Encoder module with a device name.

Parameters

device_name	The name of the device to use (e.g., "CPU", "CUDA:0").
config	Configuration parameters for the Encoder module.

Exceptions

std::invalid_argument	If the device name is invalid or the configuration is invalid
std::runtime_error	If device type doesn't match template parameter TDeviceType

◆ Encoder() [2/2]

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = int, typename TOutput = float>

Mila::Dnn::Encoder< TDeviceType, TInput, TOutput >::Encoder	(	std::shared_ptr< DeviceContext >	device_context,
		const EncoderConfig &	config
	)

inlineexplicitexport

Constructs a new Encoder module with a provided device context.

Parameters

device_context	The device context to use for this module.
config	Configuration parameters for the Encoder module.

Exceptions

std::invalid_argument	If device_context is null or configuration is invalid
std::runtime_error	If device context type doesn't match template parameter TDeviceType

Member Function Documentation

◆ createOperation()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = int, typename TOutput = float>

void Mila::Dnn::Encoder< TDeviceType, TInput, TOutput >::createOperation ( )

inlineexportprivate

Creates the computational operation based on current device context.

Instantiates either a CPU or CUDA encoder operation based on the current device context. The operation implements the actual embedding lookup and addition logic during forward pass.

◆ forward()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = int, typename TOutput = float>

void Mila::Dnn::Encoder< TDeviceType, TInput, TOutput >::forward	(	const Tensor< TInput, MR > &	input,
		Tensor< TOutput, MR > &	output
	)

inlineexport

Performs the forward pass of the encoder.

Transforms input token IDs into continuous embeddings by:

Looking up token embeddings from the embedding table (wte)
Adding positional embeddings (wpe) based on token position

Parameters

input	The input tensor containing token IDs with shape (B,T).
output	The output tensor that will contain embeddings with shape (B,T,C).

◆ getChannels()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = int, typename TOutput = float>

size_t Mila::Dnn::Encoder< TDeviceType, TInput, TOutput >::getChannels ( ) const

inlineexport

Gets the number of channels (embedding dimension).

Returns: size_t The number of channels (C).

◆ getMaxSequenceLength()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = int, typename TOutput = float>

size_t Mila::Dnn::Encoder< TDeviceType, TInput, TOutput >::getMaxSequenceLength ( ) const

inlineexport

Gets the maximum sequence length.

Returns: size_t The maximum sequence length (maxT).

◆ getVocabularyLength()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = int, typename TOutput = float>

size_t Mila::Dnn::Encoder< TDeviceType, TInput, TOutput >::getVocabularyLength ( ) const

inlineexport

Gets the vocabulary length.

Returns: size_t The vocabulary length (V).

◆ initializeTensors()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = int, typename TOutput = float>

void Mila::Dnn::Encoder< TDeviceType, TInput, TOutput >::initializeTensors ( )

inlineexportprivate

Initializes the token and positional embedding tensors.

Creates and initializes:

wte (word token embeddings) tensor of shape (vocab_len_, channels_)
wpe (word position embeddings) tensor of shape (max_seq_len_, channels_)

Both tensors are initialized using Xavier initialization to ensure proper gradient flow during training. The tensors are registered as parameters in the module's parameter map for training and serialization.

◆ load()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = int, typename TOutput = float>

void Mila::Dnn::Encoder< TDeviceType, TInput, TOutput >::load ( ModelArchive & archive )

inlineoverrideexportvirtual

Loads the encoder parameters from a zip archive.

Deserializes all parameter tensors (wte and wpe) from the specified zip archive. This enables loading pretrained models for inference or continued training.

Parameters

zip	The zip archive to load the parameters from.

Implements Mila::Dnn::Module< TDeviceType, TInput, TOutput >.

◆ parameterCount()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = int, typename TOutput = float>

size_t Mila::Dnn::Encoder< TDeviceType, TInput, TOutput >::parameterCount ( ) const

inlineoverrideexportvirtual

Gets the number of parameters in the module.

Counts all learnable parameters in the encoder, which includes all elements in the token embedding table (wte) and position embedding table (wpe).

Returns: size_t The total number of parameters.

Implements Mila::Dnn::Module< TDeviceType, TInput, TOutput >.

◆ save()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = int, typename TOutput = float>

void Mila::Dnn::Encoder< TDeviceType, TInput, TOutput >::save ( ModelArchive & archive ) const

inlineoverrideexportvirtual

Saves the encoder parameters to a zip archive.

Serializes all parameter tensors (wte and wpe) to the specified zip archive. This enables model persistence for later reuse or distribution.

Parameters

zip	The zip archive to save the parameters to.

Implements Mila::Dnn::Module< TDeviceType, TInput, TOutput >.

◆ toString()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = int, typename TOutput = float>

std::string Mila::Dnn::Encoder< TDeviceType, TInput, TOutput >::toString ( ) const

inlineoverrideexportvirtual

Gets the module information as a string.

Provides a human-readable description of the encoder configuration, including dimensions, parameter counts, and tensor information.

Returns: std::string The module information.

Implements Mila::Dnn::Module< TDeviceType, TInput, TOutput >.

Member Data Documentation

◆ attributes_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = int, typename TOutput = float>

OperationAttributes Mila::Dnn::Encoder< TDeviceType, TInput, TOutput >::attributes_

exportprivate

Operation-specific attributes and configuration.

◆ config_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = int, typename TOutput = float>

EncoderConfig Mila::Dnn::Encoder< TDeviceType, TInput, TOutput >::config_

exportprivate

Configuration for the Encoder module.

◆ operation_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = int, typename TOutput = float>

std::shared_ptr<UnaryOperation<TDeviceType, TInput, TOutput> > Mila::Dnn::Encoder< TDeviceType, TInput, TOutput >::operation_ { nullptr }

exportprivate

The computational operation that implements the encoder logic.

◆ output_state_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = int, typename TOutput = float>

std::vector<std::shared_ptr<Tensor<TOutput, MR> > > Mila::Dnn::Encoder< TDeviceType, TInput, TOutput >::output_state_

exportprivate

Output state tensors used for intermediate values.

Not used in this module.

◆ parameters_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = int, typename TOutput = float>

std::vector<std::shared_ptr<Tensor<TOutput, MR> > > Mila::Dnn::Encoder< TDeviceType, TInput, TOutput >::parameters_

exportprivate

Vector of parameter tensors that will be used during forward/backward passes.

Contains both the token embeddings (wte) and position embeddings (wpe).

◆ wpe_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = int, typename TOutput = float>

std::shared_ptr<Tensor<TOutput, MR> > Mila::Dnn::Encoder< TDeviceType, TInput, TOutput >::wpe_ { nullptr }

exportprivate

Position embedding table with shape (maxT,C), encodes token position information.

maxT is the maximum sequence length and C is the embedding dimension.

◆ wte_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = int, typename TOutput = float>

std::shared_ptr<Tensor<TOutput, MR> > Mila::Dnn::Encoder< TDeviceType, TInput, TOutput >::wte_ { nullptr }

exportprivate

Token embedding table with shape (V,C), maps token IDs to vector representations.

V is the vocabulary size and C is the embedding dimension.

The documentation for this class was generated from the following file:

/home/runner/work/Mila/Mila/Mila/Src/Dnn/Modules/Layers/Encoder.ixx

Public Types

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ModuleBase

◆ MR

Constructor & Destructor Documentation

◆ Encoder() [1/2]

◆ Encoder() [2/2]

Member Function Documentation

◆ createOperation()

◆ forward()

◆ getChannels()

◆ getMaxSequenceLength()

◆ getVocabularyLength()

◆ initializeTensors()

◆ load()

◆ parameterCount()

◆ save()

◆ toString()

Member Data Documentation

◆ attributes_

◆ config_

◆ operation_

◆ output_state_

◆ parameters_

◆ wpe_

◆ wte_
