Grouped-Query Attention module that accepts concatenated QKV input. More...

Inheritance diagram for Mila::Dnn::GroupedQueryAttention< TDeviceType, TComputePrecision, TKvPolicy >:

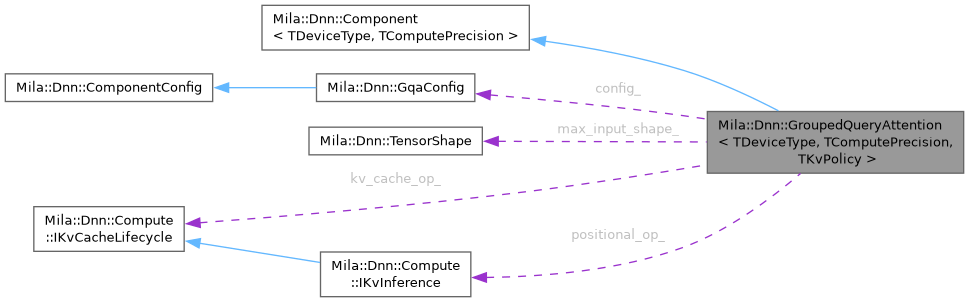

Collaboration diagram for Mila::Dnn::GroupedQueryAttention< TDeviceType, TComputePrecision, TKvPolicy >:

[legend]

Public Types
using	ComponentBase = Component<TDeviceType, TComputePrecision>
using	KvCacheTensorType = Tensor<kCacheDtype, MR>
using	MR = typename DeviceTypeTraits<TDeviceType>::memory_resource
using	OpType = typename Compute::OperationTraits<Compute::OperationType::GroupedQueryAttentionOp, TDeviceType, TComputePrecision, TKvPolicy>::type
using	TensorType = Tensor<TComputePrecision, MR>

Public Member Functions
	GroupedQueryAttention (const std::string &name, const GqaConfig &config, std::optional< DeviceId > device_id=std::nullopt)
	Construct a GroupedQueryAttention component.
	~GroupedQueryAttention () override=default
TensorType &	backward (const TensorType &input, const TensorType &output_grad)
	Run backward pass and return the component-owned input-gradient tensor.
TensorType &	decode (const TensorType &q, const TensorType &k, const TensorType &v, int position_offset)
	Inference-only single-token decode pass.
TensorType &	forward (const TensorType &input)
	Standard forward pass.
const GqaConfig &	getConfig () const noexcept
DeviceId	getDeviceId () const override
	Get the compute device id associated with this component.
std::vector< ITensor * >	getGradients () const override
	Return non-owning pointers to parameter gradient tensors.
MemoryStats	getMemoryStats () const override
	Return the current memory allocation breakdown for this component.
int64_t	getModelDim () const noexcept
int64_t	getNumHeads () const noexcept
int64_t	getNumKvHeads () const noexcept
std::vector< ITensor * >	getParameters () const override
	Return non-owning pointers to parameter tensors.
const ComponentType	getType () const override
	Get the component type identifier.
size_t	parameterCount () const override
	Return number of trainable parameters.
TensorType &	prefill (const TensorType &q, const TensorType &k, const TensorType &v, int position_offset)
	Chunked prefill pass with explicit position offset.
void	save_ (ModelArchive &archive, SerializationMode mode) const override
void	setState (const GqaState &state)
	Forward the shared transient workspace to the underlying operation.
bool	supportsKVCache () const noexcept
	Returns true when the underlying operation implements both IPositionalUnaryOp and IKVCacheLifecycle.
void	synchronize () override
	Wait for outstanding device work submitted by this component.
std::string	toString () const override
	Produce a short, human-readable description of the component.
Public Member Functions inherited from Mila::Dnn::Component< TDeviceType, TComputePrecision >
	Component (const std::string &name)
	Construct component with required name identifier.
virtual	~Component ()=default
virtual void	build (const BuildContext &context) final
	Build the component with the provided BuildContext (canonical overload).
const std::string	getName () const
	Get the component's name identifier.
virtual std::vector< std::string >	getParameterNames () const
	List all available parameter names for this component.
RuntimeMode	getRuntimeMode () const noexcept
	Convenience accessor — true if currently in Eval mode.
TrainingMode	getTrainingMode () const noexcept
	The current runtime behavioral mode of this Component.
virtual bool	isBuilt () const final
	Returns true if build() has completed successfully.
bool	isInferenceMode () const noexcept
bool	isTrainingMode () const noexcept
virtual void	loadParameter (const std::string &name, const Serialization::ITensorBlob &blob)
	Load a parameter from serialized tensor data.
void	setTrainingMode (TrainingMode mode)
	Set the runtime behavioral mode for this Component.
virtual void	zeroGradients ()
	Clear all model-owned gradients for this component.

Static Public Attributes
static constexpr TensorDataType	kCacheDtype
static constexpr bool	kKvCompressed = TKvPolicy::kIsActive

Protected Member Functions
void	onBuilding (const BuildContext &context) override
	Hook invoked by build() to allocate component buffers.
void	onExecutionContextSet () override
	Lifecycle hook: Called immediately after ExecutionContext is set.
void	onTrainingModeChanging (TrainingMode training_mode) override
	Hook called before TrainingMode transitions.
Protected Member Functions inherited from Mila::Dnn::Component< TDeviceType, TComputePrecision >
IExecutionContext *	getExecutionContext () const
	Get the shared execution context.
bool	hasExecutionContext () const noexcept
	Check if execution context has been set.
void	loadParameterFromBlob (const std::string &param_name, const Serialization::ITensorBlob &blob, Tensor< TParameterPrecision, TMemoryResource > &target, const shape_t &expected_shape)
	Load a tensor blob into a parameter tensor with validation.
void	setExecutionContext (IExecutionContext *context)
	Set the execution context for this component.

Private Member Functions
void	createOperation ()
void	validateConcatenatedQKVShape (const shape_t &shape) const
	Validate that the input tensor has the expected GQA-packed QKV shape.

Private Attributes
bool	cache_initialized_ { false }
GqaConfig	config_
std::unique_ptr< IExecutionContext >	context_ { nullptr }
bool	decode_active_ { false }
std::unique_ptr< TensorType >	decode_output_ { nullptr }
std::unique_ptr< TensorType >	input_grad_ { nullptr }
IKvCacheLifecycle *	kv_cache_op_ { nullptr }
shape_t	max_input_shape_
std::shared_ptr< OpType >	operation_ { nullptr }
std::unique_ptr< TensorType >	output_ { nullptr }
std::optional< TensorType >	output_view_
IKvInference *	positional_op_ { nullptr }

Additional Inherited Members
Static Public Member Functions inherited from Mila::Dnn::Component< TDeviceType, TComputePrecision >
static constexpr DeviceType	getDeviceType ()
	Compile-time device type for this component instance.
static constexpr TensorDataType	getPrecision () noexcept
	Compile-time tensor precision for this component instance.
Protected Attributes inherited from Mila::Dnn::Component< TDeviceType, TComputePrecision >
BuildContext	build_context_
	The BuildContext stored at build time.

Detailed Description

template<DeviceType TDeviceType, TensorDataType TComputePrecision, KvCachePolicy TKvPolicy = NoKvCompression>
requires PrecisionSupportedOnDevice<TComputePrecision, TDeviceType>
class Mila::Dnn::GroupedQueryAttention< TDeviceType, TComputePrecision, TKvPolicy >

Grouped-Query Attention module that accepts concatenated QKV input.

GQA generalises MHA by allowing num_kv_heads < num_heads. Each K/V head is shared by a group of (num_heads / num_kv_heads) Q heads, reducing KV cache memory and bandwidth during inference.

The module requires a single input tensor in model-layout containing concatenated Q, K and V along the feature axis:

input shape == [B, T, (num_heads + 2 * num_kv_heads) * head_dim] output shape == [B, T, model_dim] (model_dim = num_heads * head_dim)

The backend compute implementation (registered as "GroupedQueryAttentionOp") must accept this layout and produce the output above.

KV-cache inference is an optional backend capability. After build(), supportsKVCache() indicates whether the underlying operation implements both IPositionalUnaryOp (prefill/decode dispatch) and IKVCacheLifecycle (cache init/reset). Both pointers are resolved once at build time.

The KV cache lifecycle (initializeKVCache / resetKVCache) is intended to be driven exclusively by the owning transformer's generate() method.

REVIEW: initializeKVCache() and resetKVCache() are currently public. When TransformerBase<> is introduced as the common base for GptTransformer, LlamaTransformer, MistralTransformer etc., revisit whether these should become private with 'friend class TransformerBase<TDeviceType, TPrecision>' to enforce that only the generate() orchestration path may manage the KV cache lifecycle.

Constructor & Destructor Documentation

◆ GroupedQueryAttention()

template<DeviceType TDeviceType, TensorDataType TComputePrecision, KvCachePolicy TKvPolicy = NoKvCompression>

Mila::Dnn::GroupedQueryAttention< TDeviceType, TComputePrecision, TKvPolicy >::GroupedQueryAttention	(	const std::string &	name,
		const GqaConfig &	config,
		std::optional< DeviceId >	device_id = std::nullopt )

inlineexplicitexport

Construct a GroupedQueryAttention component.

Parameters

name	Component name identifier (mandatory).
config	GQA configuration (model_dim, num_heads, num_kv_heads).
device_id	Optional DeviceId to create an owned ExecutionContext (standalone / unit-test mode).

◆ ~GroupedQueryAttention()

template<DeviceType TDeviceType, TensorDataType TComputePrecision, KvCachePolicy TKvPolicy = NoKvCompression>

Mila::Dnn::GroupedQueryAttention< TDeviceType, TComputePrecision, TKvPolicy >::~GroupedQueryAttention ( )

overrideexportdefault

Member Function Documentation

◆ backward()

template<DeviceType TDeviceType, TensorDataType TComputePrecision, KvCachePolicy TKvPolicy = NoKvCompression>

TensorType & Mila::Dnn::GroupedQueryAttention< TDeviceType, TComputePrecision, TKvPolicy >::backward	(	const TensorType &	input,
		const TensorType &	output_grad )

inlineexport

Run backward pass and return the component-owned input-gradient tensor.

Parameters

input	Concatenated QKV input tensor used in forward.
output_grad	Gradient w.r.t. the module output.

Returns: Reference to component-owned TensorType containing the input gradient.

◆ createOperation()

template<DeviceType TDeviceType, TensorDataType TComputePrecision, KvCachePolicy TKvPolicy = NoKvCompression>

void Mila::Dnn::GroupedQueryAttention< TDeviceType, TComputePrecision, TKvPolicy >::createOperation ( )

inlineexportprivate

◆ decode()

template<DeviceType TDeviceType, TensorDataType TComputePrecision, KvCachePolicy TKvPolicy = NoKvCompression>

TensorType & Mila::Dnn::GroupedQueryAttention< TDeviceType, TComputePrecision, TKvPolicy >::decode	(	const TensorType &	q,
		const TensorType &	k,
		const TensorType &	v,
		int	position_offset )

inlineexport

Inference-only single-token decode pass.

When the backend implements IPositionalUnaryOp and the cache has been populated by a prior forward() call, uses the fast O(n) KV cache path. When the backend does not support positional dispatch, falls back to forward(). The caller never needs to know which path was taken.

Precondition: forward() must have been called at least once to populate the KV cache before decode() is called.

Parameters

input	Single-token QKV input [B, 1, (Q + 2KV) head_dim].
position	Current sequence position (0-based).

Returns: Reference to component-owned single-token output tensor.

◆ forward()

template<DeviceType TDeviceType, TensorDataType TComputePrecision, KvCachePolicy TKvPolicy = NoKvCompression>

TensorType & Mila::Dnn::GroupedQueryAttention< TDeviceType, TComputePrecision, TKvPolicy >::forward ( const TensorType & input )

inlineexport

Standard forward pass.

Always available regardless of backend. When the backend supports KV caching, the first forward() call initialises and populates the cache (prefill with position_offset=0). When called again after decode() steps, it automatically resets the cache and begins a new prefill session — no explicit session management required by callers.

Parameters

input Concatenated QKV input [B, T, (Q + 2*KV) * head_dim].

Returns: Reference to component-owned output tensor [B, T, model_dim].

◆ getConfig()

template<DeviceType TDeviceType, TensorDataType TComputePrecision, KvCachePolicy TKvPolicy = NoKvCompression>

const GqaConfig & Mila::Dnn::GroupedQueryAttention< TDeviceType, TComputePrecision, TKvPolicy >::getConfig ( ) const

inlineexportnoexcept

◆ getDeviceId()

template<DeviceType TDeviceType, TensorDataType TComputePrecision, KvCachePolicy TKvPolicy = NoKvCompression>

DeviceId Mila::Dnn::GroupedQueryAttention< TDeviceType, TComputePrecision, TKvPolicy >::getDeviceId ( ) const

inlineoverrideexportvirtual

Get the compute device id associated with this component.

Must return the device on which parameters and operations execute.

Implements Mila::Dnn::Component< TDeviceType, TComputePrecision >.

◆ getGradients()

template<DeviceType TDeviceType, TensorDataType TComputePrecision, KvCachePolicy TKvPolicy = NoKvCompression>

std::vector< ITensor * > Mila::Dnn::GroupedQueryAttention< TDeviceType, TComputePrecision, TKvPolicy >::getGradients ( ) const

inlineoverrideexportvirtual

Return non-owning pointers to parameter gradient tensors.

Only valid when isTraining() is true.

Exceptions

std::runtime_error if called when not in training mode or before the component has been built.

Implements Mila::Dnn::Component< TDeviceType, TComputePrecision >.

◆ getMemoryStats()

template<DeviceType TDeviceType, TensorDataType TComputePrecision, KvCachePolicy TKvPolicy = NoKvCompression>

MemoryStats Mila::Dnn::GroupedQueryAttention< TDeviceType, TComputePrecision, TKvPolicy >::getMemoryStats ( ) const

inlineoverrideexportvirtual

Return the current memory allocation breakdown for this component.

Reflects allocations at the moment of the call. The returned stats naturally track the component lifecycle:

After construction — parameters only After build( Inference ) — parameters + T=1 state buffers After build( Training ) — parameters + T=full state buffers After setEvaluation( false ) — parameters + state + gradients

For CompositeComponent and Network, the returned stats are the recursive aggregate of all child components.

May be called at any time — no lifecycle preconditions.

Returns: MemoryStats reflecting current allocations.

Implements Mila::Dnn::Component< TDeviceType, TComputePrecision >.

◆ getModelDim()

template<DeviceType TDeviceType, TensorDataType TComputePrecision, KvCachePolicy TKvPolicy = NoKvCompression>

int64_t Mila::Dnn::GroupedQueryAttention< TDeviceType, TComputePrecision, TKvPolicy >::getModelDim ( ) const

inlineexportnoexcept

◆ getNumHeads()

template<DeviceType TDeviceType, TensorDataType TComputePrecision, KvCachePolicy TKvPolicy = NoKvCompression>

int64_t Mila::Dnn::GroupedQueryAttention< TDeviceType, TComputePrecision, TKvPolicy >::getNumHeads ( ) const

inlineexportnoexcept

◆ getNumKvHeads()

template<DeviceType TDeviceType, TensorDataType TComputePrecision, KvCachePolicy TKvPolicy = NoKvCompression>

int64_t Mila::Dnn::GroupedQueryAttention< TDeviceType, TComputePrecision, TKvPolicy >::getNumKvHeads ( ) const

inlineexportnoexcept

◆ getParameters()

template<DeviceType TDeviceType, TensorDataType TComputePrecision, KvCachePolicy TKvPolicy = NoKvCompression>

std::vector< ITensor * > Mila::Dnn::GroupedQueryAttention< TDeviceType, TComputePrecision, TKvPolicy >::getParameters ( ) const

inlineoverrideexportvirtual

Return non-owning pointers to parameter tensors.

The returned tensor pointers remain valid for the lifetime of the component. Order should be canonical (weights before biases).

Implements Mila::Dnn::Component< TDeviceType, TComputePrecision >.

◆ getType()

template<DeviceType TDeviceType, TensorDataType TComputePrecision, KvCachePolicy TKvPolicy = NoKvCompression>

const ComponentType Mila::Dnn::GroupedQueryAttention< TDeviceType, TComputePrecision, TKvPolicy >::getType ( ) const

inlineoverrideexportvirtual

Get the component type identifier.

Used for serialization and runtime type identification.

Returns: Component type enum value.

Implements Mila::Dnn::Component< TDeviceType, TComputePrecision >.

◆ onBuilding()

template<DeviceType TDeviceType, TensorDataType TComputePrecision, KvCachePolicy TKvPolicy = NoKvCompression>

void Mila::Dnn::GroupedQueryAttention< TDeviceType, TComputePrecision, TKvPolicy >::onBuilding ( const BuildContext & config )

inlineoverrideexportprotectedvirtual

Hook invoked by build() to allocate component buffers.

Receives the stored BuildContext. Implementations must use config.allocationSeqLen() when sizing output buffers — this is the single call that makes Inference and Training allocate the correct buffer sizes automatically without per-component logic.

// Example — Linear component:
shape_t out_shape =
{
    config.batchSize(),
    config.allocationSeqLen(),   // 1 for Inference, T for Training
    config_.getOutputFeatures()
};
output_ = std::make_unique<TensorType>( device, out_shape,
    this->getName() + ".output" );

The default implementation forwards to the legacy onBuilding( const shape_t& ) overload for backwards compatibility. New components should override this overload directly.

Note: Do not call build() or onBuilding() from within this hook.; Implementations should either succeed fully or leave no partial state, as a failed build() may be retried.

Parameters

config Build-time configuration. Use config.allocationSeqLen() to obtain the correct output buffer sequence dimension.

Reimplemented from Mila::Dnn::Component< TDeviceType, TComputePrecision >.

◆ onExecutionContextSet()

template<DeviceType TDeviceType, TensorDataType TComputePrecision, KvCachePolicy TKvPolicy = NoKvCompression>

void Mila::Dnn::GroupedQueryAttention< TDeviceType, TComputePrecision, TKvPolicy >::onExecutionContextSet ( )

inlineoverrideexportprotectedvirtual

Lifecycle hook: Called immediately after ExecutionContext is set.

Override this to perform initialization that requires a valid ExecutionContext. At the time this is called, getExecutionContext() is guaranteed to return a valid context.

Common uses:

Composite components: Create and configure child components.
Device resource allocation: Query device capabilities.

Default implementation does nothing.

Exceptions

Any	exception thrown will cause setExecutionContext() to fail and restore the component to a "context not set" state.

Reimplemented from Mila::Dnn::Component< TDeviceType, TComputePrecision >.

◆ onTrainingModeChanging()

template<DeviceType TDeviceType, TensorDataType TComputePrecision, KvCachePolicy TKvPolicy = NoKvCompression>

void Mila::Dnn::GroupedQueryAttention< TDeviceType, TComputePrecision, TKvPolicy >::onTrainingModeChanging ( TrainingMode mode )

inlineoverrideexportprotectedvirtual

Hook called before TrainingMode transitions.

Called by setTrainingMode() after validation and lock acquisition, before the internal state is updated. Derived classes override to respond to the transition — e.g. zeroing gradient buffers on transition to Eval, or re-enabling dropout on transition to Training.

The default implementation is a no-op.

Parameters

mode	The incoming TrainingMode.

Reimplemented from Mila::Dnn::Component< TDeviceType, TComputePrecision >.

◆ parameterCount()

template<DeviceType TDeviceType, TensorDataType TComputePrecision, KvCachePolicy TKvPolicy = NoKvCompression>

size_t Mila::Dnn::GroupedQueryAttention< TDeviceType, TComputePrecision, TKvPolicy >::parameterCount ( ) const

inlineoverrideexportvirtual

Return number of trainable parameters.

For leaf components this is the element count of owned parameter tensors. CompositeComponent and Network implementations should return the recursive aggregate across all children.

Implements Mila::Dnn::Component< TDeviceType, TComputePrecision >.

◆ prefill()

template<DeviceType TDeviceType, TensorDataType TComputePrecision, KvCachePolicy TKvPolicy = NoKvCompression>

TensorType & Mila::Dnn::GroupedQueryAttention< TDeviceType, TComputePrecision, TKvPolicy >::prefill	(	const TensorType &	q,
		const TensorType &	k,
		const TensorType &	v,
		int	position_offset )

inlineexport

Chunked prefill pass with explicit position offset.

Called by the transformer block during chunked prefill. The KV cache must already be initialized (via onBuilding or forward()).

Parameters

input	Concatenated QKV input [B, T_chunk, (Q + 2KV) head_dim].
position_offset	Absolute position of the first token in this chunk.

Returns: Reference to component-owned output tensor.

◆ save_()

template<DeviceType TDeviceType, TensorDataType TComputePrecision, KvCachePolicy TKvPolicy = NoKvCompression>

void Mila::Dnn::GroupedQueryAttention< TDeviceType, TComputePrecision, TKvPolicy >::save_	(	ModelArchive &	archive,
		SerializationMode	mode ) const

inlineoverrideexportvirtual

Implements Mila::Dnn::Component< TDeviceType, TComputePrecision >.

◆ setState()

template<DeviceType TDeviceType, TensorDataType TComputePrecision, KvCachePolicy TKvPolicy = NoKvCompression>

void Mila::Dnn::GroupedQueryAttention< TDeviceType, TComputePrecision, TKvPolicy >::setState ( const GqaState & state )

inlineexport

Forward the shared transient workspace to the underlying operation.

Must be called after build() and before prefill() or decode(). A no-op on backends that do not implement setState (e.g. CPU stub).

Parameters

state Non-owning pointers to the shared GQA scratch tensors.

◆ supportsKVCache()

template<DeviceType TDeviceType, TensorDataType TComputePrecision, KvCachePolicy TKvPolicy = NoKvCompression>

bool Mila::Dnn::GroupedQueryAttention< TDeviceType, TComputePrecision, TKvPolicy >::supportsKVCache ( ) const

inlineexportnoexcept

Returns true when the underlying operation implements both IPositionalUnaryOp and IKVCacheLifecycle.

Resolved once at build time. CPU backends return false; CUDA backends return true when CudaGroupedQueryAttentionOp is in use.

◆ synchronize()

template<DeviceType TDeviceType, TensorDataType TComputePrecision, KvCachePolicy TKvPolicy = NoKvCompression>

void Mila::Dnn::GroupedQueryAttention< TDeviceType, TComputePrecision, TKvPolicy >::synchronize ( )

inlineoverrideexportvirtual

Wait for outstanding device work submitted by this component.

On CPU this may be a no-op. Use to ensure results are visible to the host or to measure synchronous timings.

Implements Mila::Dnn::Component< TDeviceType, TComputePrecision >.

◆ toString()

template<DeviceType TDeviceType, TensorDataType TComputePrecision, KvCachePolicy TKvPolicy = NoKvCompression>

std::string Mila::Dnn::GroupedQueryAttention< TDeviceType, TComputePrecision, TKvPolicy >::toString ( ) const

inlineoverrideexportvirtual

Produce a short, human-readable description of the component.

Implementations should keep output concise and avoid throwing.

Implements Mila::Dnn::Component< TDeviceType, TComputePrecision >.

◆ validateConcatenatedQKVShape()

template<DeviceType TDeviceType, TensorDataType TComputePrecision, KvCachePolicy TKvPolicy = NoKvCompression>

void Mila::Dnn::GroupedQueryAttention< TDeviceType, TComputePrecision, TKvPolicy >::validateConcatenatedQKVShape ( const shape_t & shape ) const

inlineexportprivate

Validate that the input tensor has the expected GQA-packed QKV shape.

Expected trailing dimension: (num_heads + 2 * num_kv_heads) * head_dim

The documentation for this class was generated from the following file:

/__w/Mila/Mila/Mila/Src/Dnn/Components/Attention/GQA/GroupedQueryAttention.ixx

Public Types

Public Member Functions

Static Public Attributes

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ GroupedQueryAttention()

◆ ~GroupedQueryAttention()

Member Function Documentation

◆ backward()

◆ createOperation()

◆ decode()

◆ forward()

◆ getConfig()

◆ getDeviceId()

◆ getGradients()

◆ getMemoryStats()

◆ getModelDim()

◆ getNumHeads()

◆ getNumKvHeads()

◆ getParameters()

◆ getType()

◆ onBuilding()

◆ onExecutionContextSet()

◆ onTrainingModeChanging()

◆ parameterCount()

◆ prefill()

◆ save_()

◆ setState()

◆ supportsKVCache()

◆ synchronize()

◆ toString()

◆ validateConcatenatedQKVShape()
