A component that contains and manages child components. More...

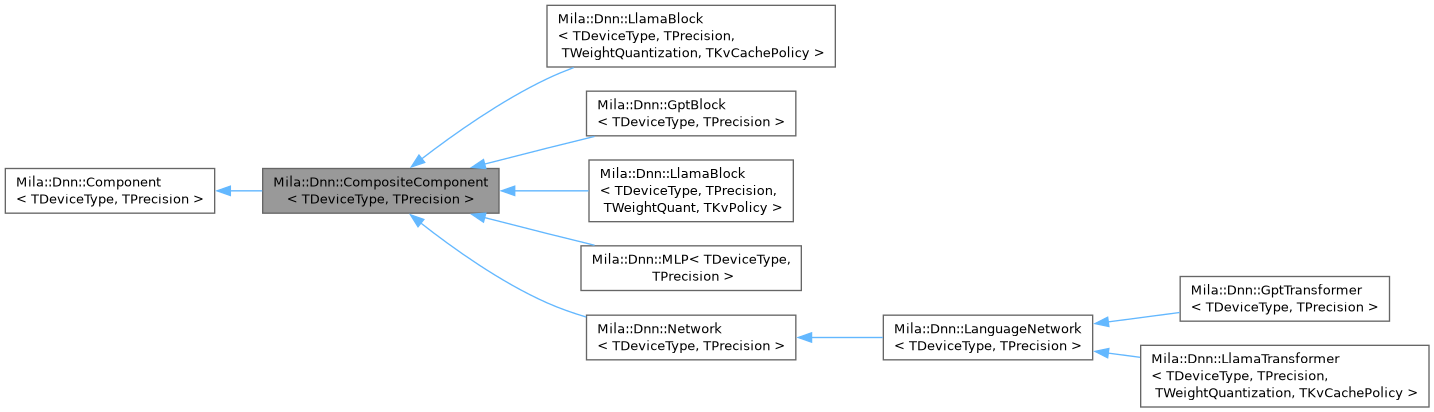

Inheritance diagram for Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >:

[legend]

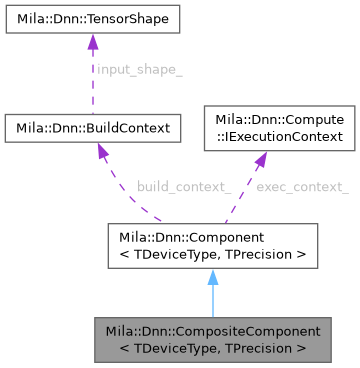

Collaboration diagram for Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >:

[legend]

Public Types
using	ComponentBase = Component<TDeviceType, TPrecision>
using	ComponentPtr = std::shared_ptr<Component<TDeviceType, TPrecision>>

Public Member Functions
	CompositeComponent (CompositeComponent &&) noexcept=default
	CompositeComponent (const CompositeComponent &)=delete
	CompositeComponent (const std::string &name)
	Construct composite component with name.
virtual	~CompositeComponent ()=default
CompositeComponent &	addComponent (ComponentPtr component)
	Add a pre-constructed child component (chainable).
size_t	childCount () const noexcept
	Get the number of direct children.
void	clearComponents ()
	Clear all child components.
ComponentPtr	findComponent (const std::string &path) const
	Resolve a dot-separated component path within this composite.
ComponentPtr	getComponent (const std::string &name) const
	Retrieve a direct child component by name.
const std::vector< ComponentPtr > &	getComponents () const
	Get all child components in insertion order.

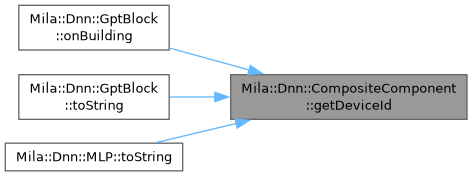

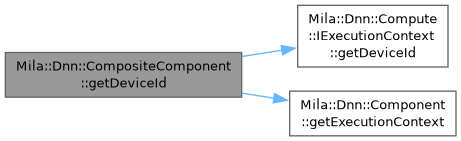

DeviceId	getDeviceId () const override
	Get the compute device for this composite.
std::vector< ITensor * >	getGradients () const override
	Get all parameter gradients from all children.
std::vector< ITensor * >	getParameters () const override
	Get all parameters from all children.
bool	hasChildren () const noexcept
	Check if this composite has any children.
bool	hasComponent (const std::string &name) const
	Check if a named child component exists.
CompositeComponent &	operator= (CompositeComponent &&) noexcept=default
CompositeComponent &	operator= (const CompositeComponent &)=delete

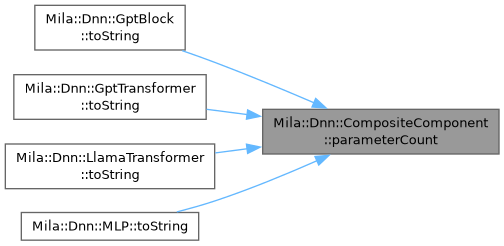

size_t	parameterCount () const override
	Count parameters across all children.
bool	removeComponent (const std::string &name)
	Get the named child components map.

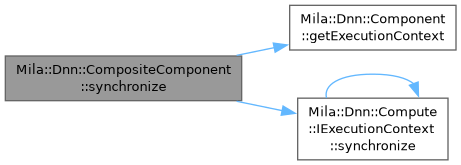

void	synchronize () override
	Synchronize all child components.
std::string	toString () const override
	Generate a human-readable description.
ComponentPtr	tryFindComponent (const std::string &path) const
	Try to resolve a dot-separated component path within this composite.
Public Member Functions inherited from Mila::Dnn::Component< TDeviceType, TPrecision >
	Component (const std::string &name)
	Construct component with required name identifier.
virtual	~Component ()=default
virtual void	build (const BuildContext &context) final
	Build the component with the provided BuildContext (canonical overload).
virtual MemoryStats	getMemoryStats () const =0
	Return the current memory allocation breakdown for this component.
const std::string	getName () const
	Get the component's name identifier.
virtual std::vector< std::string >	getParameterNames () const
	List all available parameter names for this component.
RuntimeMode	getRuntimeMode () const noexcept
	Convenience accessor — true if currently in Eval mode.
TrainingMode	getTrainingMode () const noexcept
	The current runtime behavioral mode of this Component.
virtual const ComponentType	getType () const =0
	Get the component type identifier.
virtual bool	isBuilt () const final
	Returns true if build() has completed successfully.
bool	isInferenceMode () const noexcept
bool	isTrainingMode () const noexcept
virtual void	loadParameter (const std::string &name, const Serialization::ITensorBlob &blob)
	Load a parameter from serialized tensor data.
void	setTrainingMode (TrainingMode mode)
	Set the runtime behavioral mode for this Component.
virtual void	zeroGradients ()
	Clear all model-owned gradients for this component.

Protected Member Functions
template<typename TComponent>
std::shared_ptr< TComponent >	getComponentAs (const std::string &name) const
	Retrieve a typed child component by name.

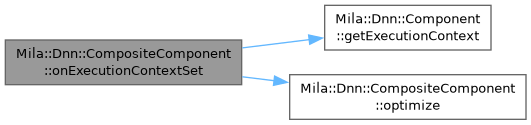

void	onExecutionContextSet () override
	Hook invoked after ExecutionContext is set.
void	onTrainingModeChanging (TrainingMode training_mode) override
	Hook invoked when training mode is about to change.
virtual void	optimize ()
	Virtual hook for graph optimization after construction.

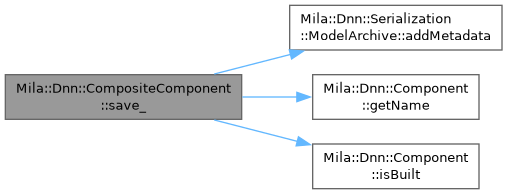

void	save_ (ModelArchive &archive, SerializationMode mode) const override
	Save all child components recursively.
Protected Member Functions inherited from Mila::Dnn::Component< TDeviceType, TPrecision >
IExecutionContext *	getExecutionContext () const
	Get the shared execution context.
bool	hasExecutionContext () const noexcept
	Check if execution context has been set.
template<TensorDataType TParameterPrecision, typename TMemoryResource>
void	loadParameterFromBlob (const std::string &param_name, const Serialization::ITensorBlob &blob, Tensor< TParameterPrecision, TMemoryResource > &target, const shape_t &expected_shape)
	Load a tensor blob into a parameter tensor with validation.
virtual void	onBuilding (const BuildContext &config)
	Hook invoked by build() to allocate component buffers.
void	setExecutionContext (IExecutionContext *context)
	Set the execution context for this component.

Private Attributes
std::unordered_map< std::string, ComponentPtr, std::hash< std::string_view >, std::equal_to<> >	child_component_map_
	Lookup map from child name to component pointer.
std::vector< ComponentPtr >	child_components_
	Child components in insertion order.

Friends
class	ComponentFactory

Additional Inherited Members
Static Public Member Functions inherited from Mila::Dnn::Component< TDeviceType, TPrecision >
static constexpr DeviceType	getDeviceType ()
	Compile-time device type for this component instance.
static constexpr TensorDataType	getPrecision () noexcept
	Compile-time tensor precision for this component instance.
Protected Attributes inherited from Mila::Dnn::Component< TDeviceType, TPrecision >
BuildContext	build_context_ { shape_t{ 1 }, RuntimeMode::Training }
	The BuildContext stored at build time.

Detailed Description

template<DeviceType TDeviceType, TensorDataType TPrecision>
class Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >

A component that contains and manages child components.

CompositeComponent is a device-parameterized abstract container that manages child component lifecycle, aggregates operations (parameters, gradients, training mode), and provides context propagation. Derived types implement execution semantics (forward/backward) and architecture definition (createGraph()).

Architecture Philosophy:

Context-independent graph creation: Architecture defined without device knowledge
Three-phase lifecycle: Graph creation -> Context binding -> Shape binding
Automatic context propagation: Base class propagates context to all children
Component-owns-name: Children manage their own identity via getName()

NOTE:

getComponent() performs direct child lookup only.
For path-based / full-graph resolution use findComponent() or tryFindComponent() on the Network (root) or call findComponent() on a composite to resolve dot-separated paths (e.g. "encoder.mlp.fc1").

Member Typedef Documentation

◆ ComponentBase

template<DeviceType TDeviceType, TensorDataType TPrecision>

using Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::ComponentBase = Component<TDeviceType, TPrecision>

◆ ComponentPtr

template<DeviceType TDeviceType, TensorDataType TPrecision>

using Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::ComponentPtr = std::shared_ptr<Component<TDeviceType, TPrecision>>

Constructor & Destructor Documentation

◆ CompositeComponent() [1/3]

template<DeviceType TDeviceType, TensorDataType TPrecision>

Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::CompositeComponent ( const std::string & name )

inlineexplicit

Construct composite component with name.

The composite component is named for identification in hierarchical structures. Derived classes should call createGraph() from their constructor to define the architecture graph (context-independent).

All child components added via addComponent() will receive ExecutionContext automatically when the composite receives its context (via onExecutionContextSet).

Parameters

name	Component name identifier (mandatory)

Exceptions

std::invalid_argument if name is not a valid identifier

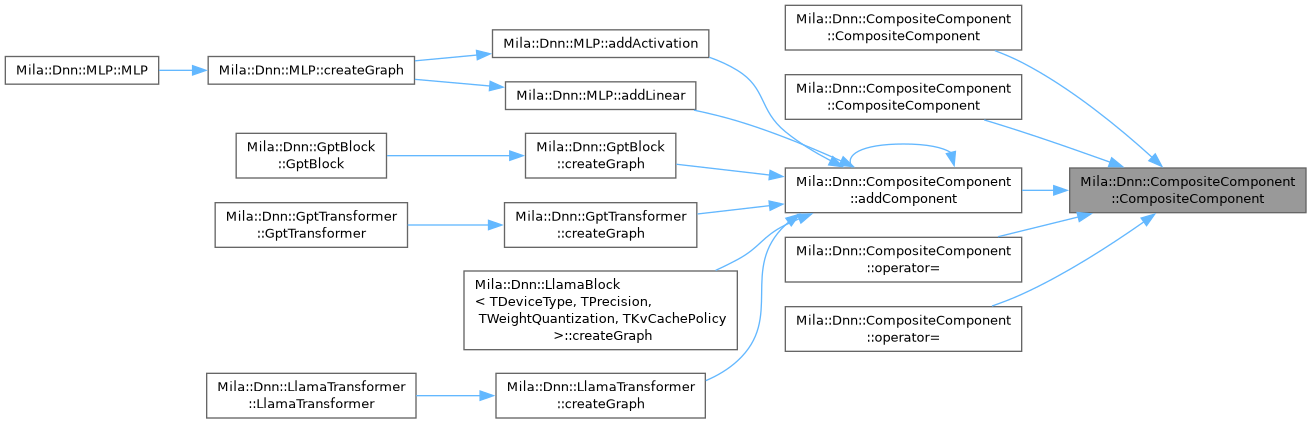

Here is the caller graph for this function:

◆ ~CompositeComponent()

template<DeviceType TDeviceType, TensorDataType TPrecision>

virtual Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::~CompositeComponent ( )

virtualdefault

◆ CompositeComponent() [2/3]

template<DeviceType TDeviceType, TensorDataType TPrecision>

Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::CompositeComponent ( const CompositeComponent< TDeviceType, TPrecision > & )

delete

Here is the call graph for this function:

◆ CompositeComponent() [3/3]

template<DeviceType TDeviceType, TensorDataType TPrecision>

Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::CompositeComponent ( CompositeComponent< TDeviceType, TPrecision > && )

defaultnoexcept

Here is the call graph for this function:

Member Function Documentation

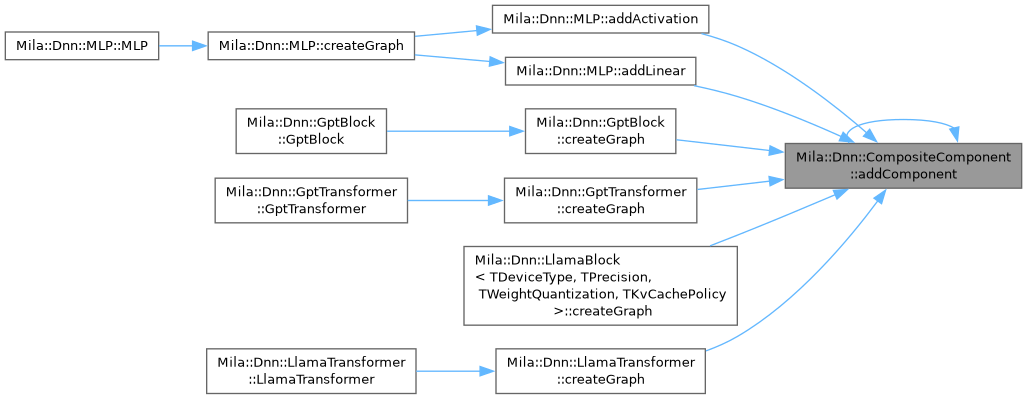

◆ addComponent()

template<DeviceType TDeviceType, TensorDataType TPrecision>

CompositeComponent & Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::addComponent ( ComponentPtr component )

inline

Add a pre-constructed child component (chainable).

Registers a component that was constructed externally (typically by the derived class in its createGraph() method). The component's getName() is used as the lookup key.

Components are expected to be created in shared mode (no ExecutionContext). Context will be automatically propagated to all children when this composite receives its context via onExecutionContextSet().

Usage pattern in derived class:

void MLP::createGraph()
{
    auto fc1 = std::make_shared<LinearType>(config, std::nullopt);
    fc1->setName(this->getName() + ".fc1");
    this->addComponent(fc1);
    // ... more components
}

Parameters

component Shared pointer to the constructed component

Returns: Reference to *this for method chaining

Exceptions

std::runtime_error	if called after build()
std::invalid_argument	if component is null
std::invalid_argument	if component name already exists
std::invalid_argument	if component already has its own ExecutionContext

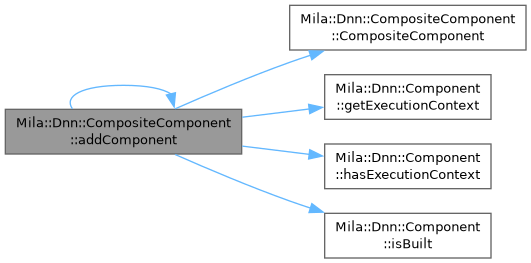

Here is the call graph for this function:

Here is the caller graph for this function:

◆ childCount()

template<DeviceType TDeviceType, TensorDataType TPrecision>

size_t Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::childCount ( ) const

inlinenoexcept

Get the number of direct children.

Returns: Number of child components

Here is the caller graph for this function:

◆ clearComponents()

template<DeviceType TDeviceType, TensorDataType TPrecision>

void Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::clearComponents ( )

inline

Clear all child components.

Exceptions

std::runtime_error if called after build()

Here is the call graph for this function:

◆ findComponent()

template<DeviceType TDeviceType, TensorDataType TPrecision>

ComponentPtr Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::findComponent ( const std::string & path ) const

inline

Resolve a dot-separated component path within this composite.

Supports both relative paths ("lenc.wte") and absolute paths ("gpt2.lenc.wte"). If path starts with this component's name, strips it before searching.

Here is the call graph for this function:

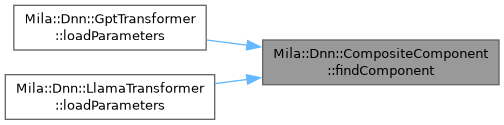

Here is the caller graph for this function:

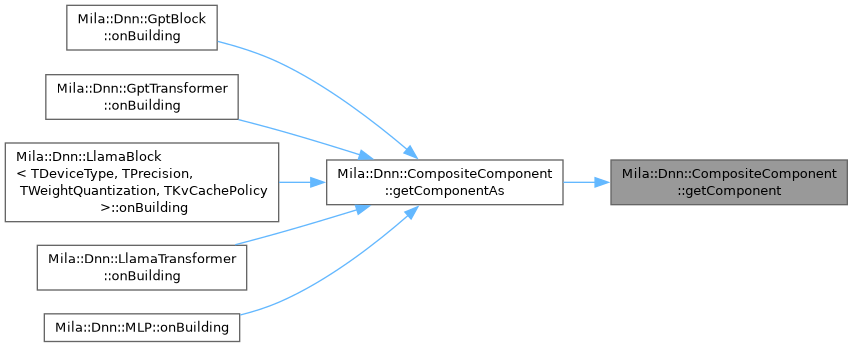

◆ getComponent()

template<DeviceType TDeviceType, TensorDataType TPrecision>

ComponentPtr Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::getComponent ( const std::string & name ) const

inline

Retrieve a direct child component by name.

This performs direct (non-recursive) lookup of immediate children only. Use findComponent() to resolve dot-separated paths across the subgraph.

Parameters

name	Name of the direct child component

Returns: Shared pointer to the component

Exceptions

std::out_of_range if the direct child is not found

Here is the caller graph for this function:

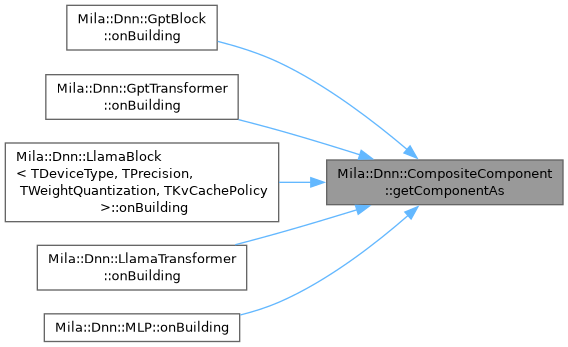

◆ getComponentAs()

template<DeviceType TDeviceType, TensorDataType TPrecision>

template<typename TComponent>

std::shared_ptr< TComponent > Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::getComponentAs ( const std::string & name ) const

inlineprotected

Retrieve a typed child component by name.

Helper method for derived composites (like MLP) that need to cache typed pointers to children in their onBuilding() hook. Performs dynamic_pointer_cast and validates the cast succeeded.

Note: This resolves direct children only. For full-path resolution use findComponent() on the appropriate root composite or Network.

Template Parameters

TComponent Expected component type

Parameters

name	Name of the direct child component

Returns: Shared pointer to component with correct type

Exceptions

std::out_of_range	if component name not found
std::runtime_error	if dynamic cast fails (type mismatch)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getComponents()

template<DeviceType TDeviceType, TensorDataType TPrecision>

const std::vector< ComponentPtr > & Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::getComponents ( ) const

inline

Get all child components in insertion order.

Returns: Vector of child component pointers

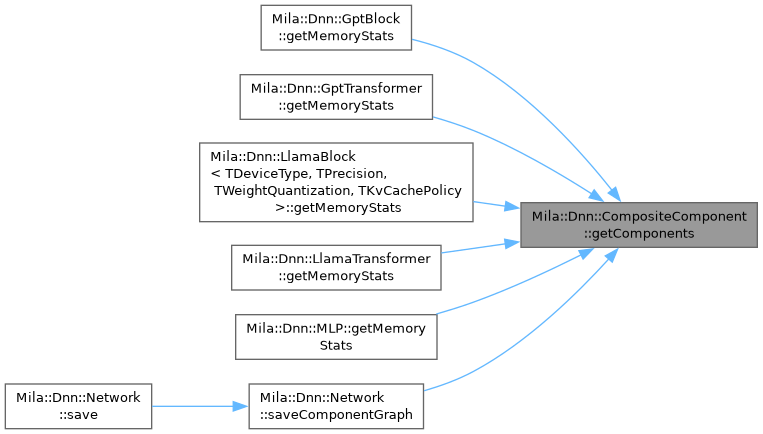

Here is the caller graph for this function:

◆ getDeviceId()

template<DeviceType TDeviceType, TensorDataType TPrecision>

DeviceId Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::getDeviceId ( ) const

inlineoverridevirtual

Get the compute device for this composite.

Returns the device from the shared execution context.

Returns: DeviceId for this composite and its children

Implements Mila::Dnn::Component< TDeviceType, TPrecision >.

Reimplemented in Mila::Dnn::Network< TDeviceType, TPrecision >.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getGradients()

template<DeviceType TDeviceType, TensorDataType TPrecision>

std::vector< ITensor * > Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::getGradients ( ) const

inlineoverridevirtual

Get all parameter gradients from all children.

Returns: Vector of non-owning pointers to gradient tensors

Exceptions

std::runtime_error if called before build() or not in training mode

Implements Mila::Dnn::Component< TDeviceType, TPrecision >.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getParameters()

template<DeviceType TDeviceType, TensorDataType TPrecision>

std::vector< ITensor * > Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::getParameters ( ) const

inlineoverridevirtual

Get all parameters from all children.

Returns: Vector of non-owning pointers to parameter tensors

Exceptions

std::runtime_error if called before build()

Implements Mila::Dnn::Component< TDeviceType, TPrecision >.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ hasChildren()

template<DeviceType TDeviceType, TensorDataType TPrecision>

bool Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::hasChildren ( ) const

inlinenoexcept

Check if this composite has any children.

Returns: true if at least one child component exists

◆ hasComponent()

template<DeviceType TDeviceType, TensorDataType TPrecision>

bool Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::hasComponent ( const std::string & name ) const

inline

Check if a named child component exists.

Parameters

name	Name to query

Returns: true if a child with this name exists

◆ onExecutionContextSet()

template<DeviceType TDeviceType, TensorDataType TPrecision>

void Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::onExecutionContextSet ( )

inlineoverrideprotectedvirtual

Hook invoked after ExecutionContext is set.

Propagates the execution context to all child components that don't already have one. This enables the pattern where composites define their architecture graph in the constructor (context-independent) and context is bound later when available.

Called by Component::setExecutionContext() after the context is registered. Automatically invoked for both standalone mode (component creates own context) and shared mode (parent provides context).

Override this in derived classes if additional context-dependent initialization is required beyond context propagation to children.

Reimplemented from Mila::Dnn::Component< TDeviceType, TPrecision >.

Here is the call graph for this function:

◆ onTrainingModeChanging()

template<DeviceType TDeviceType, TensorDataType TPrecision>

void Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::onTrainingModeChanging ( TrainingMode training_mode )

inlineoverrideprotectedvirtual

Hook invoked when training mode is about to change.

Propagates the new mode to all child components. The hook runs with the Component's training mutex held; it MUST NOT call setTraining().

Parameters

is_training New training mode (true = training, false = eval)

Reimplemented from Mila::Dnn::Component< TDeviceType, TPrecision >.

Reimplemented in Mila::Dnn::GptBlock< TDeviceType, TPrecision >, Mila::Dnn::GptTransformer< TDeviceType, TPrecision >, Mila::Dnn::LlamaBlock< TDeviceType, TPrecision, TWeightQuant, TKvPolicy >, Mila::Dnn::LlamaBlock< TDeviceType, TPrecision, TWeightQuantization, TKvCachePolicy >, Mila::Dnn::LlamaTransformer< TDeviceType, TPrecision, TWeightQuantization, TKvCachePolicy >, and Mila::Dnn::MLP< TDeviceType, TPrecision >.

◆ operator=() [1/2]

template<DeviceType TDeviceType, TensorDataType TPrecision>

CompositeComponent & Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::operator= ( CompositeComponent< TDeviceType, TPrecision > && )

defaultnoexcept

Here is the call graph for this function:

◆ operator=() [2/2]

template<DeviceType TDeviceType, TensorDataType TPrecision>

CompositeComponent & Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::operator= ( const CompositeComponent< TDeviceType, TPrecision > & )

delete

Here is the call graph for this function:

◆ optimize()

template<DeviceType TDeviceType, TensorDataType TPrecision>

virtual void Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::optimize ( )

inlineprotectedvirtual

Virtual hook for graph optimization after construction.

Called automatically after createGraph() completes. Derived classes can override to perform fusion, pruning, or other optimizations.

Default implementation does nothing. Override to perform architecture-specific graph optimizations.

Here is the caller graph for this function:

◆ parameterCount()

template<DeviceType TDeviceType, TensorDataType TPrecision>

size_t Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::parameterCount ( ) const

inlineoverridevirtual

Count parameters across all children.

Returns: Total number of trainable parameters

Exceptions

std::runtime_error if called before build()

Implements Mila::Dnn::Component< TDeviceType, TPrecision >.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ removeComponent()

template<DeviceType TDeviceType, TensorDataType TPrecision>

bool Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::removeComponent ( const std::string & name )

inline

Get the named child components map.

Returns: Map of names to child component pointers

Remove a child component by name.

Parameters

name	Name of the component to remove

Returns: true if removed, false if not found

Exceptions

std::runtime_error if called after build()

Here is the call graph for this function:

◆ save_()

template<DeviceType TDeviceType, TensorDataType TPrecision>

void Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::save_	(	ModelArchive &	archive,
		SerializationMode	mode ) const

inlineoverrideprotectedvirtual

Save all child components recursively.

Follows the component serialization contract:

Writes type, version, and configuration metadata
Recursively saves all children with scoped namespaces
Each child's save_() handles its own state

Parameters

archive	Archive to write to
mode	What to save (Checkpoint, WeightsOnly, Architecture)

Implements Mila::Dnn::Component< TDeviceType, TPrecision >.

Reimplemented in Mila::Dnn::GptBlock< TDeviceType, TPrecision >, Mila::Dnn::GptTransformer< TDeviceType, TPrecision >, Mila::Dnn::LlamaBlock< TDeviceType, TPrecision, TWeightQuant, TKvPolicy >, Mila::Dnn::LlamaBlock< TDeviceType, TPrecision, TWeightQuantization, TKvCachePolicy >, Mila::Dnn::LlamaTransformer< TDeviceType, TPrecision, TWeightQuantization, TKvCachePolicy >, Mila::Dnn::MLP< TDeviceType, TPrecision >, and Mila::Dnn::Network< TDeviceType, TPrecision >.

Here is the call graph for this function:

◆ synchronize()

template<DeviceType TDeviceType, TensorDataType TPrecision>

void Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::synchronize ( )

inlineoverridevirtual

Synchronize all child components.

Waits for outstanding device operations on all children.

Implements Mila::Dnn::Component< TDeviceType, TPrecision >.

Reimplemented in Mila::Dnn::Network< TDeviceType, TPrecision >.

Here is the call graph for this function:

◆ toString()

template<DeviceType TDeviceType, TensorDataType TPrecision>

std::string Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::toString ( ) const

inlineoverridevirtual

Generate a human-readable description.

Returns: String representation showing children

Implements Mila::Dnn::Component< TDeviceType, TPrecision >.

Reimplemented in Mila::Dnn::GptBlock< TDeviceType, TPrecision >, Mila::Dnn::GptTransformer< TDeviceType, TPrecision >, Mila::Dnn::LlamaTransformer< TDeviceType, TPrecision, TWeightQuantization, TKvCachePolicy >, Mila::Dnn::MLP< TDeviceType, TPrecision >, and Mila::Dnn::Network< TDeviceType, TPrecision >.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ tryFindComponent()

template<DeviceType TDeviceType, TensorDataType TPrecision>

ComponentPtr Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::tryFindComponent ( const std::string & path ) const

inline

Try to resolve a dot-separated component path within this composite.

Non-throwing version: returns nullptr if any segment is not found or if a path segment attempts to traverse into a non-composite leaf.

Example: auto ptr = composite->tryFindComponent("encoder.mlp.fc1");

Parameters

path	Dot-separated path (e.g. "layer_0.mlp.fc_1")

Returns: ComponentPtr or nullptr when not found / invalid traversal

◆ ComponentFactory

template<DeviceType TDeviceType, TensorDataType TPrecision>

friend class ComponentFactory

friend

Member Data Documentation

◆ child_component_map_

template<DeviceType TDeviceType, TensorDataType TPrecision>

std::unordered_map<std::string, ComponentPtr, std::hash<std::string_view>, std::equal_to<> > Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::child_component_map_

private

Lookup map from child name to component pointer.

Provides O(1) name-based lookup for children. Keys are component names (obtained via component->getName()) and must be unique within the composite.

Used for:

getComponent()/hasComponent() queries
getComponentAs<T>() typed retrieval in derived classes
Diagnostics and debugging

Note: insertion order is preserved by child_components_; this unordered_map does not guarantee ordering but provides fast lookup.

◆ child_components_

template<DeviceType TDeviceType, TensorDataType TPrecision>

std::vector<ComponentPtr> Mila::Dnn::CompositeComponent< TDeviceType, TPrecision >::child_components_

private

Child components in insertion order.

This vector holds shared ownership of the composite's direct children and preserves the order in which children were added. The insertion order is used for build sequencing, ordered iteration, and serialization ordering.

Lifecycle invariants:

Children are constructed in createGraph() (called from derived constructor)
Children are registered via addComponent() before context is available
Context is propagated to children via onExecutionContextSet() hook
Children are built by parent's onBuilding() via template method pattern

Threading: access is not internally synchronized. Mutations and lifecycle operations must be externally serialized.

The documentation for this class was generated from the following file:

/__w/Mila/Mila/Mila/Src/Dnn/Core/CompositeComponent.ixx

Public Types

Public Member Functions

Protected Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ComponentBase

◆ ComponentPtr

Constructor & Destructor Documentation

◆ CompositeComponent() [1/3]

◆ ~CompositeComponent()

◆ CompositeComponent() [2/3]

◆ CompositeComponent() [3/3]

Member Function Documentation

◆ addComponent()

◆ childCount()

◆ clearComponents()

◆ findComponent()

◆ getComponent()

◆ getComponentAs()

◆ getComponents()

◆ getDeviceId()

◆ getGradients()

◆ getParameters()

◆ hasChildren()

◆ hasComponent()

◆ onExecutionContextSet()

◆ onTrainingModeChanging()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ optimize()

◆ parameterCount()

◆ removeComponent()

◆ save_()

◆ synchronize()

◆ toString()

◆ tryFindComponent()

Friends And Related Symbol Documentation

◆ ComponentFactory

Member Data Documentation

◆ child_component_map_

◆ child_components_
