Mila::Dnn::ResidualConfig Class Reference

Configuration class for Residual connection module. More...

Inheritance diagram for Mila::Dnn::ResidualConfig:

Collaboration diagram for Mila::Dnn::ResidualConfig:

Public Types
enum class	ConnectionType { Addition , ScaledAddition , Gated }

Public Member Functions
	ResidualConfig ()=default
ConnectionType	getConnectionType () const
template<DeviceType TDeviceType, typename TInnerInput , typename TInnerOutput >
std::shared_ptr< Module< TDeviceType, TInnerInput, TInnerOutput > >	getInnerModule () const
float	getScalingFactor () const
	Set the inner module for the residual connection.
bool	hasInnerModule () const
bool	useProjection () const
void	validate () const
	Validates the configuration.
ResidualConfig &	withConnectionType (ConnectionType type)
	Set the connection type for the residual.
ResidualConfig &	withProjection (bool use_projection)
	Configure whether to include a projection for dimension matching.
ResidualConfig &	withScalingFactor (float scale)
	Set the scaling factor for the residual connection.
Public Member Functions inherited from Mila::Dnn::ComponentConfig
virtual	~ComponentConfig ()=default
	Virtual destructor to support proper polymorphic destruction.
const std::string &	getName () const
	Gets the configured component name.
ComputePrecision::Policy	getPrecision () const
	Gets the configured precision policy.
bool	isTraining () const
	Gets the configured training mode.
template<typename Self >
auto &	withName (this Self &&self, std::string name)
	Sets the name of the component with fluent interface.
template<typename Self >
auto &	withPrecision (this Self &&self, ComputePrecision::Policy policy)
	Sets the compute precision policy with fluent interface.
template<typename Self >
auto &	withTraining (this Self &&self, bool is_training)
	Sets the training mode with fluent interface.

Private Attributes
ConnectionType	connection_type_ = ConnectionType::Addition
std::shared_ptr< void >	inner_module_ptr_ = nullptr
float	scaling_factor_ = 1.0f
bool	use_projection_ = true

Additional Inherited Members
Protected Attributes inherited from Mila::Dnn::ComponentConfig
bool	is_training_ = false
	Training mode flag, defaults to false (inference mode)
std::string	name_ = "unnamed"
	Component name, defaults to "unnamed" if not explicitly set.
ComputePrecision::Policy	precision_ = ComputePrecision::Policy::Auto
	Precision policy for computation, defaults to Auto.

Detailed Description

Configuration class for Residual connection module.

Member Enumeration Documentation

ConnectionType

enum class Mila::Dnn::ResidualConfig::ConnectionType

strong

Enumerator
Addition	Simple addition (x + F(x))
ScaledAddition	Scaled addition (x + alpha*F(x))
Gated	Gated connection using learnable parameters.

Constructor & Destructor Documentation

ResidualConfig()

Mila::Dnn::ResidualConfig::ResidualConfig ( )

default

Member Function Documentation

getConnectionType()

ConnectionType Mila::Dnn::ResidualConfig::getConnectionType ( ) const

inline

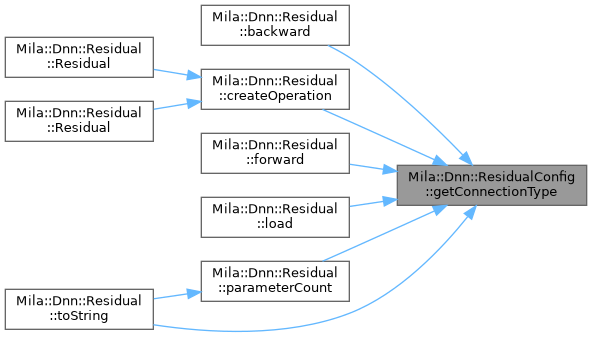

Here is the caller graph for this function:

getInnerModule()

template<DeviceType TDeviceType, typename TInnerInput , typename TInnerOutput >

std::shared_ptr< Module< TDeviceType, TInnerInput, TInnerOutput > > Mila::Dnn::ResidualConfig::getInnerModule ( ) const

inline

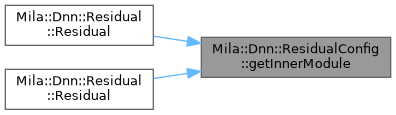

Here is the caller graph for this function:

getScalingFactor()

float Mila::Dnn::ResidualConfig::getScalingFactor ( ) const

inline

Set the inner module for the residual connection.

The inner module defines the transformation F(x) in the residual formula x + F(x).

Parameters

inner_module

Shared pointer to the inner module

Returns

ResidualConfig& Reference to this for method chaining

Here is the caller graph for this function:

hasInnerModule()

bool Mila::Dnn::ResidualConfig::hasInnerModule ( ) const

inline

useProjection()

bool Mila::Dnn::ResidualConfig::useProjection ( ) const

inline

Here is the caller graph for this function:

validate()

void Mila::Dnn::ResidualConfig::validate ( ) const

inlinevirtual

Validates the configuration.

Base implementation validates that the component name is not empty. Derived classes should call this base implementation and add their own validation logic.

Exceptions

std::invalid_argument

If the configuration is invalid

Reimplemented from Mila::Dnn::ComponentConfig.

Here is the call graph for this function:

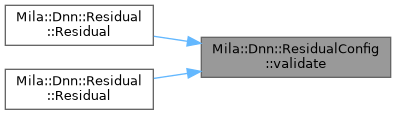

Here is the caller graph for this function:

withConnectionType()

ResidualConfig & Mila::Dnn::ResidualConfig::withConnectionType ( ConnectionType  type )

inline

Set the connection type for the residual.

Parameters

type	Connection type

Returns

ResidualConfig& Reference to this for method chaining

withProjection()

ResidualConfig & Mila::Dnn::ResidualConfig::withProjection ( bool  use_projection )

inline

Configure whether to include a projection for dimension matching.

When input and module output dimensions don't match, a projection linear layer can be automatically added to make dimensions compatible.

Parameters

use_projection

Whether to use projection when needed

Returns

ResidualConfig& Reference to this for method chaining

withScalingFactor()

ResidualConfig & Mila::Dnn::ResidualConfig::withScalingFactor ( float  scale )

inline

Set the scaling factor for the residual connection.

Parameters

scale

Scaling factor (only used for ScaledAddition type)

Returns

ResidualConfig& Reference to this for method chaining

Member Data Documentation

connection_type_

ConnectionType Mila::Dnn::ResidualConfig::connection_type_ = ConnectionType::Addition

private

inner_module_ptr_

std::shared_ptr<void> Mila::Dnn::ResidualConfig::inner_module_ptr_ = nullptr

private

scaling_factor_

float Mila::Dnn::ResidualConfig::scaling_factor_ = 1.0f

private

use_projection_

bool Mila::Dnn::ResidualConfig::use_projection_ = true

private

---

The documentation for this class was generated from the following file:

• /home/runner/work/Mila/Mila/Mila/Src/Dnn/Modules/Layers/ResidualConfig.ixx
