Softmax activation module (device-templated). More...

Inheritance diagram for Mila::Dnn::Softmax< TDeviceType, TPrecision >:

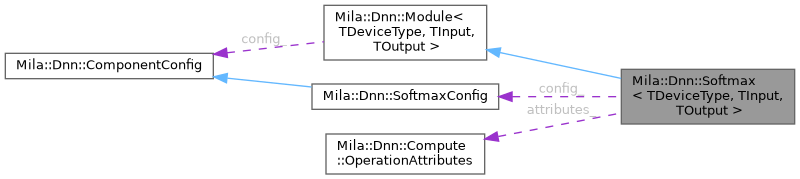

Collaboration diagram for Mila::Dnn::Softmax< TDeviceType, TPrecision >:

[legend]

Public Types
using	ComponentBase = Component<TDeviceType, TPrecision>
using	MR = typename DeviceTypeTraits<TDeviceType>::memory_resource
using	TensorType = Tensor<TPrecision, MR>

Public Member Functions
	Softmax (const std::string &name, const SoftmaxConfig &config, std::optional< DeviceId > device_id=std::nullopt)
	~Softmax () override=default
void	backward (const ITensor &input, const ITensor &output_grad, ITensor &input_grad)
	Backward pass - delegates to backend operation.
void	forward (const ITensor &input, ITensor &output)
	Forward pass - delegates to backend operation.
int64_t	getAxis () const noexcept
	Get the softmax axis.
DeviceId	getDeviceId () const override
	Get the device identifier for this module.
std::vector< ITensor * >	getGradients () const override
	Get parameter gradient tensors.
MemoryStats	getMemoryStats () const override
	Return the current memory allocation breakdown for this component.
std::vector< ITensor * >	getParameters () const override
	Get trainable parameter tensors.
const ComponentType	getType () const override
	Get the component type identifier.
size_t	parameterCount () const override
	Number of trainable parameters.
void	save_ (ModelArchive &archive, SerializationMode mode) const override
	Persist module state to archive.
void	synchronize () override
	Wait for all asynchronous work submitted by this module to complete.
std::string	toString () const override
	Generate human-readable description of the module.
Public Member Functions inherited from Mila::Dnn::Component< TDeviceType, TPrecision >
	Component (const std::string &name)
	Construct component with required name identifier.
virtual	~Component ()=default
virtual void	build (const BuildContext &context) final
	Build the component with the provided BuildContext (canonical overload).
const std::string	getName () const
	Get the component's name identifier.
virtual std::vector< std::string >	getParameterNames () const
	List all available parameter names for this component.
RuntimeMode	getRuntimeMode () const noexcept
	Convenience accessor — true if currently in Eval mode.
TrainingMode	getTrainingMode () const noexcept
	The current runtime behavioral mode of this Component.
virtual bool	isBuilt () const final
	Returns true if build() has completed successfully.
bool	isInferenceMode () const noexcept
bool	isTrainingMode () const noexcept
virtual void	loadParameter (const std::string &name, const Serialization::ITensorBlob &blob)
	Load a parameter from serialized tensor data.
void	setTrainingMode (TrainingMode mode)
	Set the runtime behavioral mode for this Component.
virtual void	zeroGradients ()
	Clear all model-owned gradients for this component.

Protected Member Functions
void	onBuilding (const BuildContext &build_config) override
	Hook invoked during build() to initialize component with input shape.
void	onExecutionContextSet () override
	Get the configuration.
void	onTrainingModeChanging (TrainingMode training_mode) override
	Hook invoked when training mode changes.
Protected Member Functions inherited from Mila::Dnn::Component< TDeviceType, TPrecision >
IExecutionContext *	getExecutionContext () const
	Get the shared execution context.
bool	hasExecutionContext () const noexcept
	Check if execution context has been set.
template<TensorDataType TParameterPrecision, typename TMemoryResource>
void	loadParameterFromBlob (const std::string &param_name, const Serialization::ITensorBlob &blob, Tensor< TParameterPrecision, TMemoryResource > &target, const shape_t &expected_shape)
	Load a tensor blob into a parameter tensor with validation.
void	setExecutionContext (IExecutionContext *context)
	Set the execution context for this component.

Private Types
using	OpType = typename OperationTraits<OperationType::SoftmaxOp, TDeviceType, TPrecision>::type

Private Member Functions
void	createOperation ()
	Create the backend compute operation.
void	validateInputShape (const ITensor &input) const
	Validate input shape for softmax operation.
void	validateInputShape (const shape_t &input_shape) const
	Validate input shape for softmax operation.

Private Attributes
SoftmaxConfig	config_
std::shared_ptr< OpType >	operation_ { nullptr }
std::unique_ptr< IExecutionContext >	owned_exec_context_ { nullptr }

Additional Inherited Members
Static Public Member Functions inherited from Mila::Dnn::Component< TDeviceType, TPrecision >
static constexpr DeviceType	getDeviceType ()
	Compile-time device type for this component instance.
static constexpr TensorDataType	getPrecision () noexcept
	Compile-time tensor precision for this component instance.
Protected Attributes inherited from Mila::Dnn::Component< TDeviceType, TPrecision >
BuildContext	build_context_ { shape_t{ 1 }, RuntimeMode::Training }
	The BuildContext stored at build time.

Detailed Description

template<DeviceType TDeviceType, TensorDataType TPrecision>
requires PrecisionSupportedOnDevice<TPrecision, TDeviceType>
class Mila::Dnn::Softmax< TDeviceType, TPrecision >

Softmax activation module (device-templated).

Delegates computation to a device-specific UnaryOperation implementation registered in the OperationRegistry.

Softmax is a stateless activation function with no trainable parameters. The operation computes: softmax(x) = exp(x - max(x)) / sum(exp(x - max(x))) across a specified axis.

Construction Modes:

Standalone mode: Construct with DeviceId to create and own an ExecutionContext. The component manages the context lifetime and uses it for operation execution.
Shared mode: Construct without DeviceId; parent (Network/CompositeComponent) provides ExecutionContext via setExecutionContext() after construction.

Ownership:

Standalone mode: Component owns its ExecutionContext (stored in owned_exec_context_).
Shared mode: Component borrows ExecutionContext from parent; lifecycle managed externally.

Template Parameters

TDeviceType	Device type (DeviceType::Cpu or DeviceType::Cuda)
TPrecision	Abstract tensor precision (TensorDataType)

Constructor & Destructor Documentation

◆ Softmax()

template<DeviceType TDeviceType, TensorDataType TPrecision>

Mila::Dnn::Softmax< TDeviceType, TPrecision >::Softmax	(	const std::string &	name,
		const SoftmaxConfig &	config,
		std::optional< DeviceId >	device_id = std::nullopt )

inlineexplicitexport

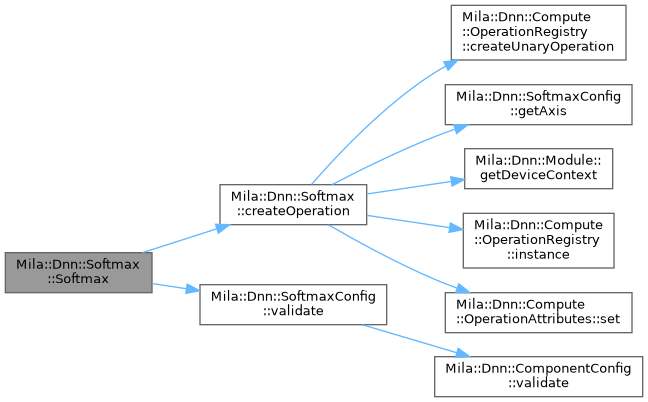

Here is the call graph for this function:

◆ ~Softmax()

template<DeviceType TDeviceType, TensorDataType TPrecision>

Mila::Dnn::Softmax< TDeviceType, TPrecision >::~Softmax ( )

overrideexportdefault

Member Function Documentation

◆ backward()

template<DeviceType TDeviceType, TensorDataType TPrecision>

void Mila::Dnn::Softmax< TDeviceType, TPrecision >::backward	(	const ITensor &	input,
		const ITensor &	output_grad,
		ITensor &	input_grad )

inlineexport

Backward pass - delegates to backend operation.

Computes gradient: dX = Y * (dY - dot(Y, dY)) where Y is the softmax output.

Here is the call graph for this function:

◆ createOperation()

template<DeviceType TDeviceType, TensorDataType TPrecision>

void Mila::Dnn::Softmax< TDeviceType, TPrecision >::createOperation ( )

inlineexportprivate

Create the backend compute operation.

Uses the shared ExecutionContext from the base class to request a device-specific UnaryOperation from the OperationRegistry.

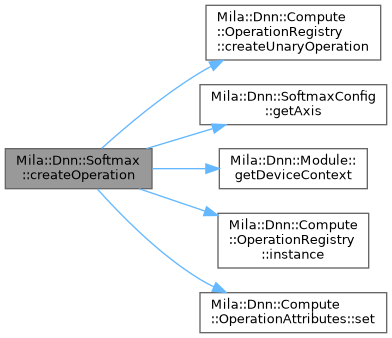

Here is the call graph for this function:

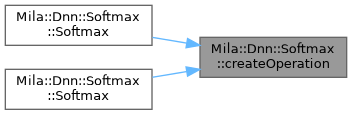

Here is the caller graph for this function:

◆ forward()

template<DeviceType TDeviceType, TensorDataType TPrecision>

void Mila::Dnn::Softmax< TDeviceType, TPrecision >::forward	(	const ITensor &	input,
		ITensor &	output )

inlineexport

Forward pass - delegates to backend operation.

Computes softmax activation across the configured axis.

Here is the call graph for this function:

◆ getAxis()

template<DeviceType TDeviceType, TensorDataType TPrecision>

int64_t Mila::Dnn::Softmax< TDeviceType, TPrecision >::getAxis ( ) const

inlineexportnoexcept

Get the softmax axis.

Returns: The axis along which softmax is computed.

◆ getDeviceId()

template<DeviceType TDeviceType, TensorDataType TPrecision>

DeviceId Mila::Dnn::Softmax< TDeviceType, TPrecision >::getDeviceId ( ) const

inlineoverrideexportvirtual

Get the device identifier for this module.

Returns the DeviceId from the ExecutionContext. In standalone mode, this is the device specified at construction. In shared mode, this is the parent's device.

Returns: DeviceId indicating device type and index.

Implements Mila::Dnn::Component< TDeviceType, TPrecision >.

Here is the call graph for this function:

◆ getGradients()

template<DeviceType TDeviceType, TensorDataType TPrecision>

std::vector< ITensor * > Mila::Dnn::Softmax< TDeviceType, TPrecision >::getGradients ( ) const

inlineoverrideexportvirtual

Get parameter gradient tensors.

Softmax has no trainable parameters, therefore no gradients.

Returns: Empty vector.

Implements Mila::Dnn::Component< TDeviceType, TPrecision >.

◆ getMemoryStats()

template<DeviceType TDeviceType, TensorDataType TPrecision>

MemoryStats Mila::Dnn::Softmax< TDeviceType, TPrecision >::getMemoryStats ( ) const

inlineoverrideexportvirtual

Return the current memory allocation breakdown for this component.

Reflects allocations at the moment of the call. The returned stats naturally track the component lifecycle:

After construction — parameters only After build( Inference ) — parameters + T=1 state buffers After build( Training ) — parameters + T=full state buffers After setEvaluation( false ) — parameters + state + gradients

For CompositeComponent and Network, the returned stats are the recursive aggregate of all child components.

May be called at any time — no lifecycle preconditions.

Returns: MemoryStats reflecting current allocations.

Implements Mila::Dnn::Component< TDeviceType, TPrecision >.

◆ getParameters()

template<DeviceType TDeviceType, TensorDataType TPrecision>

std::vector< ITensor * > Mila::Dnn::Softmax< TDeviceType, TPrecision >::getParameters ( ) const

inlineoverrideexportvirtual

Get trainable parameter tensors.

Softmax has no trainable parameters.

Returns: Empty vector.

Implements Mila::Dnn::Component< TDeviceType, TPrecision >.

◆ getType()

template<DeviceType TDeviceType, TensorDataType TPrecision>

const ComponentType Mila::Dnn::Softmax< TDeviceType, TPrecision >::getType ( ) const

inlineoverrideexportvirtual

Get the component type identifier.

Used for serialization and runtime type identification.

Returns: Component type enum value.

Implements Mila::Dnn::Component< TDeviceType, TPrecision >.

◆ onBuilding()

template<DeviceType TDeviceType, TensorDataType TPrecision>

void Mila::Dnn::Softmax< TDeviceType, TPrecision >::onBuilding ( const BuildContext & build_config )

inlineoverrideexportprotectedvirtual

Hook invoked during build() to initialize component with input shape.

Softmax is stateless and has no parameters to allocate. This method validates the input shape and delegates to the backend operation's build method to cache dimension computations.

Parameters

input_shape Expected shape for input tensors.

Exceptions

std::invalid_argument	if input_shape is invalid or axis out of bounds.
std::runtime_error	if backend build fails.

Reimplemented from Mila::Dnn::Component< TDeviceType, TPrecision >.

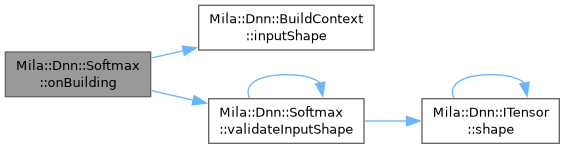

Here is the call graph for this function:

◆ onExecutionContextSet()

template<DeviceType TDeviceType, TensorDataType TPrecision>

void Mila::Dnn::Softmax< TDeviceType, TPrecision >::onExecutionContextSet ( )

inlineoverrideexportprotectedvirtual

Get the configuration.

Returns: Reference to the SoftmaxConfig.

Hook invoked after ExecutionContext is set.

Called by Component::setExecutionContext() after the context is registered. Creates the backend UnaryOperation using the OperationRegistry.

This hook is triggered in two scenarios:

Standalone mode: Immediately in constructor after owned context creation
Shared mode: When parent calls setExecutionContext() after construction

Exceptions

std::runtime_error if operation creation fails.

Reimplemented from Mila::Dnn::Component< TDeviceType, TPrecision >.

Here is the call graph for this function:

◆ onTrainingModeChanging()

template<DeviceType TDeviceType, TensorDataType TPrecision>

void Mila::Dnn::Softmax< TDeviceType, TPrecision >::onTrainingModeChanging ( TrainingMode training_mode )

inlineoverrideexportprotectedvirtual

Hook invoked when training mode changes.

Propagates training mode to the backend operation. Called by Component::setTraining() with the training mutex held.

Parameters

is_training New training mode state.

Note: Do not call setTraining() from this hook (reentrancy prohibited).

Reimplemented from Mila::Dnn::Component< TDeviceType, TPrecision >.

◆ parameterCount()

template<DeviceType TDeviceType, TensorDataType TPrecision>

size_t Mila::Dnn::Softmax< TDeviceType, TPrecision >::parameterCount ( ) const

inlineoverrideexportvirtual

Number of trainable parameters.

Softmax is stateless and exposes no trainable parameters.

Returns: 0

Implements Mila::Dnn::Component< TDeviceType, TPrecision >.

◆ save_()

template<DeviceType TDeviceType, TensorDataType TPrecision>

void Mila::Dnn::Softmax< TDeviceType, TPrecision >::save_	(	ModelArchive &	archive,
		SerializationMode	mode ) const

inlineoverrideexportvirtual

Persist module state to archive.

Softmax is stateless (no trainable tensors) but persists:

Module type and version metadata
Configuration (axis)

Parameters

archive	Archive to write to.
mode	Serialization mode (currently unused for stateless components).

Implements Mila::Dnn::Component< TDeviceType, TPrecision >.

◆ synchronize()

template<DeviceType TDeviceType, TensorDataType TPrecision>

void Mila::Dnn::Softmax< TDeviceType, TPrecision >::synchronize ( )

inlineoverrideexportvirtual

Wait for all asynchronous work submitted by this module to complete.

Synchronizes the underlying ExecutionContext. On CPU implementations this may be a no-op. Use to ensure results are visible on the host or to measure synchronous timings.

Implements Mila::Dnn::Component< TDeviceType, TPrecision >.

Here is the call graph for this function:

◆ toString()

template<DeviceType TDeviceType, TensorDataType TPrecision>

std::string Mila::Dnn::Softmax< TDeviceType, TPrecision >::toString ( ) const

inlineoverrideexportvirtual

Generate human-readable description of the module.

Produces a multi-line string showing:

Module name
Device type
Axis configuration

Returns: Formatted string representation.

Implements Mila::Dnn::Component< TDeviceType, TPrecision >.

Here is the call graph for this function:

◆ validateInputShape() [1/2]

template<DeviceType TDeviceType, TensorDataType TPrecision>

void Mila::Dnn::Softmax< TDeviceType, TPrecision >::validateInputShape ( const ITensor & input ) const

inlineexportprivate

Validate input shape for softmax operation.

Ensures the input has valid rank and the configured axis is within bounds.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ validateInputShape() [2/2]

template<DeviceType TDeviceType, TensorDataType TPrecision>

void Mila::Dnn::Softmax< TDeviceType, TPrecision >::validateInputShape ( const shape_t & input_shape ) const

inlineexportprivate

Validate input shape for softmax operation.

Ensures the input has valid rank and the configured axis is within bounds.

Here is the call graph for this function:

The documentation for this class was generated from the following file:

/__w/Mila/Mila/Mila/Src/Dnn/Components/Normalization/Softmax.ixx

Public Types

Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Softmax()

◆ ~Softmax()

Member Function Documentation

◆ backward()

◆ createOperation()

◆ forward()

◆ getAxis()

◆ getDeviceId()

◆ getGradients()

◆ getMemoryStats()

◆ getParameters()

◆ getType()

◆ onBuilding()

◆ onExecutionContextSet()

◆ onTrainingModeChanging()

◆ parameterCount()

◆ save_()

◆ synchronize()

◆ toString()

◆ validateInputShape() [1/2]

◆ validateInputShape() [2/2]
