KV-cache inference interface for packed-QKV MHA backends. More...

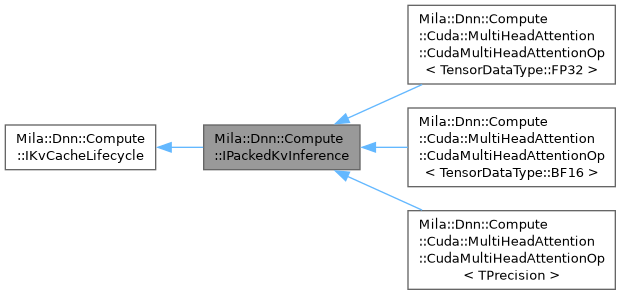

Inheritance diagram for Mila::Dnn::Compute::IPackedKvInference:

[legend]

Collaboration diagram for Mila::Dnn::Compute::IPackedKvInference:

Public Member Functions
	~IPackedKvInference () override=default
virtual void	decode (const ITensor &input, ITensor &output, int position)=0
	Process a single autoregressive token against the KV cache.
virtual void	prefill (const ITensor &qkv, ITensor &output)=0
	Populate the KV cache from a packed QKV sequence and compute output.
Public Member Functions inherited from Mila::Dnn::Compute::IKvCacheLifecycle
virtual	~IKvCacheLifecycle ()=default
virtual void	initializeKvCache (int batch_size, int max_sequence_length)=0
	Allocate the KV cache for a given batch size and maximum sequence length.
virtual void	resetKvCache ()=0
	Reset the KV cache to an empty state, preserving the allocation.

Detailed Description

KV-cache inference interface for packed-QKV MHA backends.

Implemented by GPT-style MHA backends (e.g. CudaMultiHeadAttentionOp). Uses fused QKV input throughout � Q, K, and V are concatenated along the feature axis and split internally by the backend kernel.

Position is implicit: GPT-style MHA always begins prefill at position 0. Absolute positional encoding is handled upstream by Lpe, not inside attention.

Two-phase inference protocol: prefill � populate the KV cache from the full prompt sequence. decode � process one autoregressive token against the accumulated cache.

Constructor & Destructor Documentation

◆ ~IPackedKvInference()

Mila::Dnn::Compute::IPackedKvInference::~IPackedKvInference ( )

overridedefault

Member Function Documentation

◆ decode()

virtual void Mila::Dnn::Compute::IPackedKvInference::decode	(	const ITensor &	input,
		ITensor &	output,
		int	position )

pure virtual

Process a single autoregressive token against the KV cache.

Parameters

input	Packed QKV single-token input [B, 1, 3 * embedding_dim].
output	Pre-allocated output [B, 1, embedding_dim].
position	Zero-based absolute sequence position into the KV cache.

Implemented in Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >, Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TensorDataType::BF16 >, and Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TensorDataType::FP32 >.

◆ prefill()

virtual void Mila::Dnn::Compute::IPackedKvInference::prefill	(	const ITensor &	qkv,
		ITensor &	output )
