Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision > Class Template Reference

CUDA implementation of Multi-Head Attention using column-major cuBLASLt optimization. More...

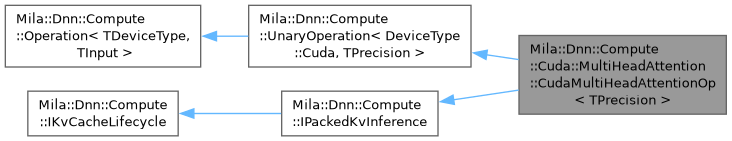

Inheritance diagram for Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >:

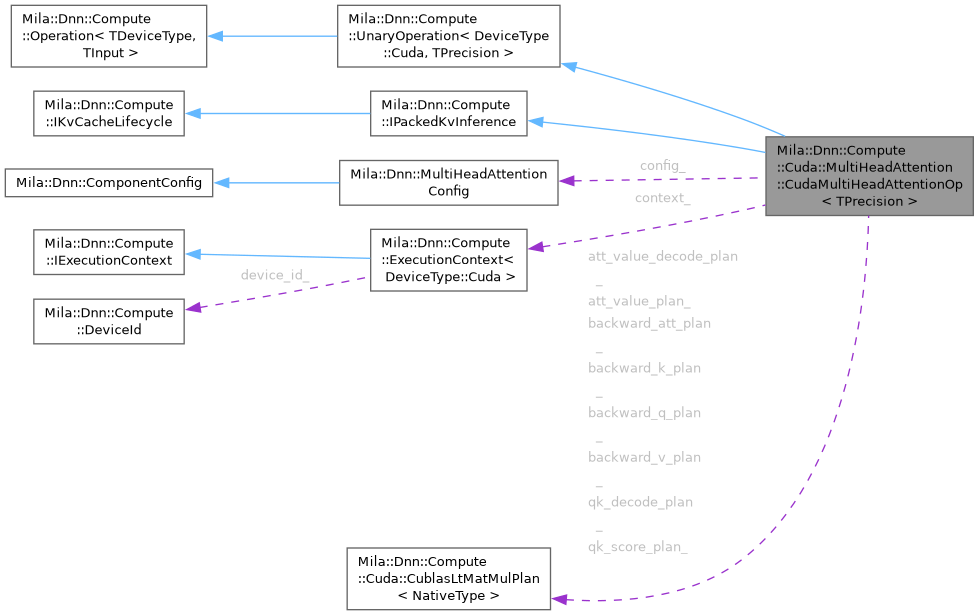

Collaboration diagram for Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >:

Public Types
using	ConfigType = MultiHeadAttentionConfig
using	CudaExecutionContext = ExecutionContext<DeviceType::Cuda>
using	MR = CudaDeviceMemoryResource
using	NativeType = typename Mila::Dnn::Compute::Cuda::TensorDataTypeMap<TPrecision>::device_type
using	TensorType = Tensor<TPrecision, MR>
using	UnaryOperationBase = UnaryOperation<DeviceType::Cuda, TPrecision>
Public Types inherited from Mila::Dnn::Compute::UnaryOperation< DeviceType::Cuda, TPrecision >
using	MR
using	TensorInputType
using	TensorOutputType
Public Types inherited from Mila::Dnn::Compute::Operation< TDeviceType, TInput >
using	DataTypeTraits

Public Member Functions
	CudaMultiHeadAttentionOp (IExecutionContext *context, const MultiHeadAttentionConfig &config)
void	backward (const ITensor &input, const ITensor &output_grad, ITensor &input_grad) const override
	Backward pass: compute gradient wrt input given output gradient.
void	build (const BuildContext &config) override
	Prepare the operation for a concrete input shape.
void	decode (const ITensor &input, ITensor &output, int position) override
	Process a single autoregressive token against the KV cache.
void	forward (const ITensor &input, ITensor &output) const override
	Forward pass: compute output = f(input).
const MultiHeadAttentionConfig &	getConfig () const
std::string	getName () const override
	Human-readable operation name.
OperationType	getOperationType () const override
	Operation type identifier.
void	initializeKvCache (int batch_size, int max_seq_length) override
	Allocate the KV cache for a given batch size and maximum sequence length.
void	prefill (const ITensor &input, ITensor &output) override
	Populate the KV cache from a packed QKV sequence and compute output.
void	resetKvCache () override
	Reset the KV cache to an empty state, preserving the allocation.
void	setGradients (ITensor *, ITensor *) override
	Bind module-owned gradient tensors to the operation.
void	setParameters (ITensor *, ITensor *) override
	Bind module-owned parameter tensors to the operation.
Public Member Functions inherited from Mila::Dnn::Compute::UnaryOperation< DeviceType::Cuda, TPrecision >
virtual	~UnaryOperation ()=default
Public Member Functions inherited from Mila::Dnn::Compute::Operation< TDeviceType, TInput >
virtual	~Operation ()=default
virtual void	clearGradients () noexcept
	Clear any cached gradient pointers held by the operation.
virtual TensorDataType	getDataType () const
	Tensor data type for this operation.
virtual DeviceType	getDeviceType () const
	Device type for this operation.
virtual std::size_t	getStateMemorySize () const
	Returns the number of bytes of state memory allocated by this operation.
virtual bool	isBuilt () const
	Whether build() completed successfully for a concrete input shape.
virtual bool	isEvalMode () const
	Query whether operation is configured for training.
virtual void	setTrainingMode (TrainingMode training_mode)
	Configure operation training-mode behavior.
Public Member Functions inherited from Mila::Dnn::Compute::IPackedKvInference
	~IPackedKvInference () override=default
Public Member Functions inherited from Mila::Dnn::Compute::IKvCacheLifecycle
virtual	~IKvCacheLifecycle ()=default

Private Member Functions
void	allocateStateTensors ()
void	buildCublasLtPlans ()
void	ensureKVCacheEnabled () const
void	getComputeTypes (cublasComputeType_t &compute_type, cudaDataType_t &scale_type) const
cudaDataType_t	getCudaDataType () const
void	validateDecodeInputShape (const shape_t &input_shape) const
void	validateInputShape (const shape_t &input_shape) const
void	validatePrefillInputShape (const shape_t &input_shape) const

Private Attributes
int	active_max_seq_len_ { 0 }
NativeType *	att_ { nullptr }
NativeType *	att_decode_ { nullptr }
std::shared_ptr< TensorType >	att_decode_tensor_
std::shared_ptr< TensorType >	att_tensor_
Detail::CublasLtMatMulPlan< NativeType >	att_value_decode_plan_
Detail::CublasLtMatMulPlan< NativeType >	att_value_plan_
int	B_ { 0 }
Detail::CublasLtMatMulPlan< NativeType >	backward_att_plan_
Detail::CublasLtMatMulPlan< NativeType >	backward_k_plan_
Detail::CublasLtMatMulPlan< NativeType >	backward_q_plan_
Detail::CublasLtMatMulPlan< NativeType >	backward_v_plan_
int	cached_seq_len_ { 0 }
MultiHeadAttentionConfig	config_
CudaExecutionContext *	context_
cublasLtHandle_t	cublaslt_handle_ { nullptr }
NativeType *	datt_ { nullptr }
std::shared_ptr< TensorType >	datt_tensor_
NativeType *	dk_ { nullptr }
std::shared_ptr< TensorType >	dk_tensor_
NativeType *	dpreatt_ { nullptr }
std::shared_ptr< TensorType >	dpreatt_tensor_
NativeType *	dq_ { nullptr }
std::shared_ptr< TensorType >	dq_tensor_
NativeType *	dV_ { nullptr }
std::shared_ptr< TensorType >	dV_tensor_
NativeType *	dVout_ { nullptr }
std::shared_ptr< TensorType >	dVout_tensor_
int	embedding_dim_ { 0 }
int	HS_ { 0 }
NativeType *	k_ { nullptr }
std::shared_ptr< TensorType >	k_tensor_
bool	kv_cache_enabled_ { false }
int	NH_ { 0 }
NativeType *	preatt_ { nullptr }
NativeType *	preatt_decode_ { nullptr }
std::shared_ptr< TensorType >	preatt_decode_tensor_
std::shared_ptr< TensorType >	preatt_tensor_
NativeType *	q_ { nullptr }
std::shared_ptr< TensorType >	q_tensor_
Detail::CublasLtMatMulPlan< NativeType >	qk_decode_plan_
Detail::CublasLtMatMulPlan< NativeType >	qk_score_plan_
int	qkv_dim_ { 0 }
int	T_ { 0 }
NativeType *	v_ { nullptr }
NativeType *	v_out_ { nullptr }
NativeType *	v_out_decode_ { nullptr }
std::shared_ptr< TensorType >	v_out_decode_tensor_
std::shared_ptr< TensorType >	v_out_tensor_
std::shared_ptr< TensorType >	v_tensor_

Additional Inherited Members
Static Public Attributes inherited from Mila::Dnn::Compute::Operation< TDeviceType, TInput >
static constexpr TensorDataType	data_type
static constexpr DeviceType	device_type
Static Protected Member Functions inherited from Mila::Dnn::Compute::UnaryOperation< DeviceType::Cuda, TPrecision >
static const TensorInputType &	asInputTensor (const ITensor &t)
static TensorOutputType &	asOutputTensor (ITensor &t)
Protected Attributes inherited from Mila::Dnn::Compute::Operation< TDeviceType, TInput >
bool	is_built_
TrainingMode	training_mode_

Detailed Description

template<TensorDataType TPrecision>
requires PrecisionSupportedOnDevice<TPrecision, DeviceType::Cuda>
class Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >

CUDA implementation of Multi-Head Attention using column-major cuBLASLt optimization.

Design philosophy:

• Two-phase initialization: build() creates cuBLASLt plans, forward()/backward() execute them
• Column-major layout eliminates most transpose operations in cuBLASLt
• All dimension computation and algorithm selection happens once in build()
• Forward/backward are hot-path methods with zero setup overhead
• Custom CUDA kernels handle permute/unpermute and softmax operations

Forward pass:

1. Permute QKV from [B, T, 3*C] to separate Q, K, V [B, NH, HS, T] (column-major)
2. Compute attention scores: preatt = Q^T @ K (exploiting column-major layout)
3. Apply softmax with causal masking: att = softmax(preatt / sqrt(HS))
4. Compute values: vaccum = Att @ V^T
5. Unpermute output from [B, NH, HS, T] to [B, T, C]

Backward pass:

1. Unpermute output gradient to [B, NH, HS, T]
2. Compute dV = Att^T @ dvaccum^T
3. Compute dAtt = dvaccum^T @ V
4. Softmax backward: dPreatt = softmax_backward(dAtt, Att)
5. Compute dQ = dPreatt @ K^T
6. Compute dK = dPreatt^T @ Q^T
7. Permute gradients back to concatenated QKV format

Member Typedef Documentation

ConfigType

template<TensorDataType TPrecision>

using Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::ConfigType = MultiHeadAttentionConfig

CudaExecutionContext

template<TensorDataType TPrecision>

using Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::CudaExecutionContext = ExecutionContext<DeviceType::Cuda>

MR

template<TensorDataType TPrecision>

using Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::MR = CudaDeviceMemoryResource

NativeType

template<TensorDataType TPrecision>

using Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::NativeType = typename Mila::Dnn::Compute::Cuda::TensorDataTypeMap<TPrecision>::device_type

TensorType

template<TensorDataType TPrecision>

using Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::TensorType = Tensor<TPrecision, MR>

UnaryOperationBase

template<TensorDataType TPrecision>

using Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::UnaryOperationBase = UnaryOperation<DeviceType::Cuda, TPrecision>

Constructor & Destructor Documentation

CudaMultiHeadAttentionOp()

template<TensorDataType TPrecision>

Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::CudaMultiHeadAttentionOp ( IExecutionContext * context, const MultiHeadAttentionConfig & config )

inline

Member Function Documentation

allocateStateTensors()

template<TensorDataType TPrecision>

void Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::allocateStateTensors ( )

inlineprivate

Here is the caller graph for this function:

backward()

template<TensorDataType TPrecision>

void Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::backward ( const ITensor & input, const ITensor & output_grad, ITensor & input_grad ) const

inlineoverridevirtual

Backward pass: compute gradient wrt input given output gradient.

Signature ordered as (input, output_grad, input_grad) to match module and operation implementations across the codebase.

Implements Mila::Dnn::Compute::UnaryOperation< DeviceType::Cuda, TPrecision >.

build()

template<TensorDataType TPrecision>

void Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::build ( const BuildContext & build_context )

inlineoverridevirtual

Prepare the operation for a concrete input shape.

Default implementation is a no-op. Operations requiring shape-dependent setup should override this method.

Reimplemented from Mila::Dnn::Compute::Operation< TDeviceType, TInput >.

buildCublasLtPlans()

template<TensorDataType TPrecision>

void Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::buildCublasLtPlans ( )

inlineprivate

Here is the caller graph for this function:

decode()

template<TensorDataType TPrecision>

void Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::decode ( const ITensor & input, ITensor & output, int position )

inlineoverridevirtual

Process a single autoregressive token against the KV cache.

Parameters

input	Packed QKV single-token input [B, 1, 3 * embedding_dim].
output	Pre-allocated output [B, 1, embedding_dim].
position	Zero-based absolute sequence position into the KV cache.

Implements Mila::Dnn::Compute::IPackedKvInference.

ensureKVCacheEnabled()

template<TensorDataType TPrecision>

void Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::ensureKVCacheEnabled ( ) const

inlineprivate

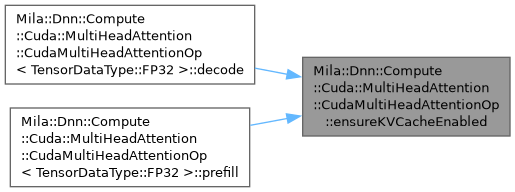

Here is the caller graph for this function:

forward()

template<TensorDataType TPrecision>

void Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::forward ( const ITensor & input, ITensor & output ) const

inlineoverridevirtual

Forward pass: compute output = f(input).

Implementations should accept polymorphic ITensor references and may use the typed aliases / helpers to obtain typed tensor references.

Implements Mila::Dnn::Compute::UnaryOperation< DeviceType::Cuda, TPrecision >.

getComputeTypes()

template<TensorDataType TPrecision>

void Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::getComputeTypes ( cublasComputeType_t & compute_type, cudaDataType_t & scale_type ) const

inlineprivate

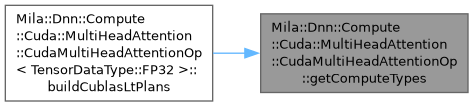

Here is the caller graph for this function:

getConfig()

template<TensorDataType TPrecision>

const MultiHeadAttentionConfig & Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::getConfig ( ) const

inline

getCudaDataType()

template<TensorDataType TPrecision>

cudaDataType_t Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::getCudaDataType ( ) const

inlineprivate

Here is the caller graph for this function:

getName()

template<TensorDataType TPrecision>

std::string Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::getName ( ) const

inlineoverridevirtual

Human-readable operation name.

Implements Mila::Dnn::Compute::Operation< TDeviceType, TInput >.

getOperationType()

template<TensorDataType TPrecision>

OperationType Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::getOperationType ( ) const

inlineoverridevirtual

Operation type identifier.

Implements Mila::Dnn::Compute::Operation< TDeviceType, TInput >.

initializeKvCache()

template<TensorDataType TPrecision>

void Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::initializeKvCache ( int batch_size, int max_sequence_length )

inlineoverridevirtual

Allocate the KV cache for a given batch size and maximum sequence length.

Parameters

batch_size	Number of sequences in the batch.
max_sequence_length	Maximum number of tokens the cache must hold.

Implements Mila::Dnn::Compute::IKvCacheLifecycle.

prefill()

template<TensorDataType TPrecision>

void Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::prefill ( const ITensor & qkv, ITensor & output )

inlineoverridevirtual

Populate the KV cache from a packed QKV sequence and compute output.

Parameters

qkv	Packed QKV input [B, T, 3 * embedding_dim].
output	Pre-allocated attention output [B, T, embedding_dim].

Implements Mila::Dnn::Compute::IPackedKvInference.

resetKvCache()

template<TensorDataType TPrecision>

void Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::resetKvCache ( )

inlineoverridevirtual

Reset the KV cache to an empty state, preserving the allocation.

Implements Mila::Dnn::Compute::IKvCacheLifecycle.

setGradients()

template<TensorDataType TPrecision>

void Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::setGradients ( ITensor * weight_grad, ITensor * bias_grad )

inlineoverridevirtual

Bind module-owned gradient tensors to the operation.

New canonical API for binding gradient buffers. Mirrors semantics of setParameters() but for gradients used during backward().

The operation MUST NOT take ownership of the provided pointers. Implementations may cache rawData() pointers for hot-path writes.

Default: no-op for stateless operations.

Reimplemented from Mila::Dnn::Compute::Operation< TDeviceType, TInput >.

setParameters()

template<TensorDataType TPrecision>

void Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::setParameters ( ITensor * weight, ITensor * bias )

inlineoverridevirtual

Bind module-owned parameter tensors to the operation.

The module retains ownership of the provided ITensor objects. Implementations may cache rawData() pointers for hot-path access but MUST NOT free the provided pointers.

Default: no-op for stateless operations.

Reimplemented from Mila::Dnn::Compute::Operation< TDeviceType, TInput >.

validateDecodeInputShape()

template<TensorDataType TPrecision>

void Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::validateDecodeInputShape ( const shape_t & input_shape ) const

inlineprivate

Here is the caller graph for this function:

validateInputShape()

template<TensorDataType TPrecision>

void Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::validateInputShape ( const shape_t & input_shape ) const

inlineprivate

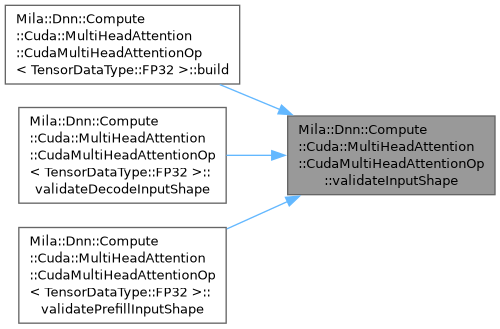

Here is the caller graph for this function:

validatePrefillInputShape()

template<TensorDataType TPrecision>

void Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::validatePrefillInputShape ( const shape_t & input_shape ) const

inlineprivate

Here is the caller graph for this function:

Member Data Documentation

active_max_seq_len_

template<TensorDataType TPrecision>

int Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::active_max_seq_len_ { 0 }

private

att_

template<TensorDataType TPrecision>

NativeType* Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::att_ { nullptr }

private

att_decode_

template<TensorDataType TPrecision>

NativeType* Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::att_decode_ { nullptr }

private

att_decode_tensor_

template<TensorDataType TPrecision>

std::shared_ptr<TensorType> Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::att_decode_tensor_

private

att_tensor_

template<TensorDataType TPrecision>

std::shared_ptr<TensorType> Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::att_tensor_

private

att_value_decode_plan_

template<TensorDataType TPrecision>

Detail::CublasLtMatMulPlan<NativeType> Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::att_value_decode_plan_

private

att_value_plan_

template<TensorDataType TPrecision>

Detail::CublasLtMatMulPlan<NativeType> Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::att_value_plan_

private

B_

template<TensorDataType TPrecision>

int Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::B_ { 0 }

private

backward_att_plan_

template<TensorDataType TPrecision>

Detail::CublasLtMatMulPlan<NativeType> Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::backward_att_plan_

private

backward_k_plan_

template<TensorDataType TPrecision>

Detail::CublasLtMatMulPlan<NativeType> Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::backward_k_plan_

private

backward_q_plan_

template<TensorDataType TPrecision>

Detail::CublasLtMatMulPlan<NativeType> Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::backward_q_plan_

private

backward_v_plan_

template<TensorDataType TPrecision>

Detail::CublasLtMatMulPlan<NativeType> Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::backward_v_plan_

private

cached_seq_len_

template<TensorDataType TPrecision>

int Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::cached_seq_len_ { 0 }

private

config_

template<TensorDataType TPrecision>

MultiHeadAttentionConfig Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::config_

private

context_

template<TensorDataType TPrecision>

CudaExecutionContext* Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::context_

private

cublaslt_handle_

template<TensorDataType TPrecision>

cublasLtHandle_t Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::cublaslt_handle_ { nullptr }

private

datt_

template<TensorDataType TPrecision>

NativeType* Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::datt_ { nullptr }

private

datt_tensor_

template<TensorDataType TPrecision>

std::shared_ptr<TensorType> Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::datt_tensor_

private

dk_

template<TensorDataType TPrecision>

NativeType* Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::dk_ { nullptr }

private

dk_tensor_

template<TensorDataType TPrecision>

std::shared_ptr<TensorType> Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::dk_tensor_

private

dpreatt_

template<TensorDataType TPrecision>

NativeType* Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::dpreatt_ { nullptr }

private

dpreatt_tensor_

template<TensorDataType TPrecision>

std::shared_ptr<TensorType> Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::dpreatt_tensor_

private

dq_

template<TensorDataType TPrecision>

NativeType* Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::dq_ { nullptr }

private

dq_tensor_

template<TensorDataType TPrecision>

std::shared_ptr<TensorType> Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::dq_tensor_

private

dV_

template<TensorDataType TPrecision>

NativeType* Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::dV_ { nullptr }

private

dV_tensor_

template<TensorDataType TPrecision>

std::shared_ptr<TensorType> Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::dV_tensor_

private

dVout_

template<TensorDataType TPrecision>

NativeType* Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::dVout_ { nullptr }

private

dVout_tensor_

template<TensorDataType TPrecision>

std::shared_ptr<TensorType> Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::dVout_tensor_

private

embedding_dim_

template<TensorDataType TPrecision>

int Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::embedding_dim_ { 0 }

private

HS_

template<TensorDataType TPrecision>

int Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::HS_ { 0 }

private

k_

template<TensorDataType TPrecision>

NativeType* Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::k_ { nullptr }

private

k_tensor_

template<TensorDataType TPrecision>

std::shared_ptr<TensorType> Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::k_tensor_

private

kv_cache_enabled_

template<TensorDataType TPrecision>

bool Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::kv_cache_enabled_ { false }

private

NH_

template<TensorDataType TPrecision>

int Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::NH_ { 0 }

private

preatt_

template<TensorDataType TPrecision>

NativeType* Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::preatt_ { nullptr }

private

preatt_decode_

template<TensorDataType TPrecision>

NativeType* Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::preatt_decode_ { nullptr }

private

preatt_decode_tensor_

template<TensorDataType TPrecision>

std::shared_ptr<TensorType> Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::preatt_decode_tensor_

private

preatt_tensor_

template<TensorDataType TPrecision>

std::shared_ptr<TensorType> Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::preatt_tensor_

private

q_

template<TensorDataType TPrecision>

NativeType* Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::q_ { nullptr }

private

q_tensor_

template<TensorDataType TPrecision>

std::shared_ptr<TensorType> Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::q_tensor_

private

qk_decode_plan_

template<TensorDataType TPrecision>

Detail::CublasLtMatMulPlan<NativeType> Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::qk_decode_plan_

private

qk_score_plan_

template<TensorDataType TPrecision>

Detail::CublasLtMatMulPlan<NativeType> Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::qk_score_plan_

private

qkv_dim_

template<TensorDataType TPrecision>

int Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::qkv_dim_ { 0 }

private

T_

template<TensorDataType TPrecision>

int Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::T_ { 0 }

private

v_

template<TensorDataType TPrecision>

NativeType* Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::v_ { nullptr }

private

v_out_

template<TensorDataType TPrecision>

NativeType* Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::v_out_ { nullptr }

private

v_out_decode_

template<TensorDataType TPrecision>

NativeType* Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::v_out_decode_ { nullptr }

private

v_out_decode_tensor_

template<TensorDataType TPrecision>

std::shared_ptr<TensorType> Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::v_out_decode_tensor_

private

v_out_tensor_

template<TensorDataType TPrecision>

std::shared_ptr<TensorType> Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::v_out_tensor_

private

v_tensor_

template<TensorDataType TPrecision>

std::shared_ptr<TensorType> Mila::Dnn::Compute::Cuda::MultiHeadAttention::CudaMultiHeadAttentionOp< TPrecision >::v_tensor_

private

---

The documentation for this class was generated from the following file:

• /__w/Mila/Mila/Mila/Src/Dnn/Compute/Devices/Cuda/Operations/Attention/MHA/CudaMhaOp.ixx
