Multi-Layer Perceptron (MLP) block for neural networks. More...

Inheritance diagram for Mila::Dnn::MLP< TDeviceType, TDataType >:

[legend]

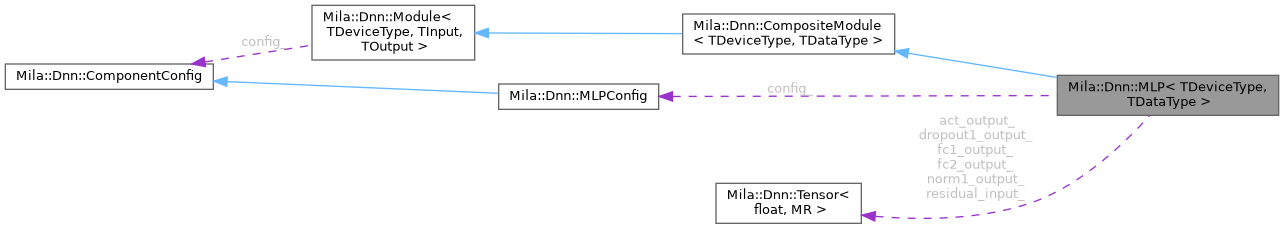

Collaboration diagram for Mila::Dnn::MLP< TDeviceType, TDataType >:

[legend]

Public Types
using	CompositeModuleBase = CompositeModule< TDeviceType, TDataType >
	Alias for base module type.

using	MR = std::conditional_t< TDeviceType==DeviceType::Cuda, CudaMemoryResource, CpuMemoryResource >
	Memory resource type used for tensors, selected based on device type.

Public Types inherited from Mila::Dnn::CompositeModule< TDeviceType, TDataType >
using	ModuleBase = Module< TDeviceType, TDataType, TDataType >
	Base class type for the module.

using	MR = std::conditional_t< TDeviceType==DeviceType::Cuda, CudaMemoryResource, HostMemoryResource >
	Memory resource type based on device type.

Public Types inherited from Mila::Dnn::Module< TDeviceType, TInput, TOutput >
using	MR = std::conditional_t< TDeviceType==DeviceType::Cuda, CudaMemoryResource, CpuMemoryResource >

Public Member Functions
	MLP (const std::string &device_name, const MLPConfig &config)
	Constructs a new MLP module with a device name.

	MLP (std::shared_ptr< DeviceContext > device_context, const MLPConfig &config)
	Constructs a new MLP module with a provided device context.

void	backward (const Tensor< TDataType, MR > &input, const Tensor< TDataType, MR > &output_grad, Tensor< TDataType, MR > &input_grad)
	Performs the backward pass of the MLP block.

void	forward (const Tensor< TDataType, MR > &input, Tensor< TDataType, MR > &output)
	Performs the forward pass of the MLP block.

void	load (ModelArchive &archive) override
	Deserializes the module state from a ZIP archive.

size_t	parameterCount () const override
	Gets the number of trainable parameters in this module.

void	save (ModelArchive &archive) const override
	Serializes the module state to a ZIP archive.

std::string	toString () const override
	Generates a string representation of this module's configuration.

Public Member Functions inherited from Mila::Dnn::CompositeModule< TDeviceType, TDataType >
	CompositeModule ()
	Default constructor.

	CompositeModule (const std::string &device_name, const ComponentConfig &config)
	Constructor with device name.

	CompositeModule (std::shared_ptr< DeviceContext > context, const ComponentConfig &config)
	Constructor with device context.

virtual	~CompositeModule ()=default
	Virtual destructor.

CompositeModule &	addModule (const std::string &name, std::shared_ptr< Module< TDeviceType, TDataType, TDataType > > module)
	Add a named child module to this module.

CompositeModule &	addModule (std::shared_ptr< Module< TDeviceType, TDataType, TDataType > > module)
	Add an unnamed child module to this module.

std::shared_ptr< Module< TDeviceType, TDataType, TDataType > >	getModule (const std::string &name) const
	Get a specific sub-module by name.

const std::vector< std::shared_ptr< Module< TDeviceType, TDataType, TDataType > > > &	getModules () const
	Get all sub-modules contained in this module.

const std::unordered_map< std::string, std::shared_ptr< Module< TDeviceType, TDataType, TDataType > > > &	getNamedModules () const
	Get all named sub-modules contained in this module.

bool	hasModule (const std::string &name) const
	Check if a sub-module with the given name exists.

bool	removeModule (const std::string &name)
	Remove a sub-module by name.

bool	replaceModule (const std::string &name, std::shared_ptr< Module< TDeviceType, TDataType, TDataType > > module)
	Replace an existing sub-module with a new one.

void	setTraining (bool is_training) override
	Set the training mode for this module and all its sub-modules.

Public Member Functions inherited from Mila::Dnn::Module< TDeviceType, TInput, TOutput >
	Module (const std::string &device_name, const ComponentConfig &config)
	Constructor with device name.

	Module (std::shared_ptr< DeviceContext > context, const ComponentConfig &config)
	Constructor with a specific device context.

virtual	~Module ()=default
	Virtual destructor for proper cleanup in derived classes.

std::shared_ptr< Compute::DeviceContext >	getDeviceContext () const
	Get the device context for this module.

Compute::DeviceType	getDeviceType () const
	Get the device type of the current device context.

std::string	getName () const
	Get the name of the module.

const auto &	getParameterTensors () const
	Get the parameter tensors of this module.

const ComputePrecision::Policy &	getPrecision () const

const auto &	getStateTensors () const
	Get the state tensors of this module.

bool	isTraining () const
	Check if the module is in training mode.

Private Member Functions
void	initializeModules ()
	Initializes all submodules for the MLP.

Private Attributes
Tensor< TDataType, MR >	act_output_
	Output tensor from activation function.

std::shared_ptr< Module< TDeviceType, TDataType > >	activation_ { nullptr }
	Activation function module.

MLPConfig	config_
	Configuration for the MLP module.

std::shared_ptr< Dropout< TDeviceType, TDataType > >	dropout1_ { nullptr }
	Optional dropout module.

Tensor< TDataType, MR >	dropout1_output_
	Output tensor from dropout.

std::shared_ptr< Linear< TDeviceType, TDataType > >	fc1_ { nullptr }
	First linear layer (input_features -> hidden_size).

Tensor< TDataType, MR >	fc1_output_
	Output tensor from first linear layer.

std::shared_ptr< Linear< TDeviceType, TDataType > >	fc2_ { nullptr }
	Second linear layer (hidden_size -> input_features).

Tensor< TDataType, MR >	fc2_output_
	Output tensor from second linear layer.

std::shared_ptr< LayerNorm< TDeviceType, TDataType > >	norm1_ { nullptr }
	Optional layer normalization module.

Tensor< TDataType, MR >	norm1_output_
	Output tensor from layer normalization.

Tensor< TDataType, MR >	residual_input_
	Cached input tensor for residual connection.

Additional Inherited Members
Protected Member Functions inherited from Mila::Dnn::Module< TDeviceType, TInput, TOutput >
const std::string	parametersToString () const
	Helper method to convert parameters to string representation.

const std::string	stateToString () const
	Helper method to convert state tensors to string representation.

Protected Attributes inherited from Mila::Dnn::Module< TDeviceType, TInput, TOutput >
std::unordered_map< std::string, std::shared_ptr< Tensor< TOutput, MR > > >	parameter_map_ = {}
	Map of parameter names to parameter tensors.

std::unordered_map< std::string, std::shared_ptr< Tensor< TOutput, MR > > >	state_map_ = {}
	Map of state names to state tensors.

Detailed Description

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>
requires ValidFloatTensorType<TDataType>
class Mila::Dnn::MLP< TDeviceType, TDataType >

Multi-Layer Perceptron (MLP) block for neural networks.

This module implements a two-layer MLP with an activation function in between: input -> Linear -> Activation -> Linear -> output

Optionally includes:

Dropout after each layer
Layer normalization
Residual connection

MLP blocks are fundamental components in many network architectures, including transformers where they typically follow attention layers and process token representations.

Template Parameters

TDeviceType	The device type (CPU or CUDA) on which to perform computations.
TDataType	The data type used for tensor elements throughout the network.

Member Typedef Documentation

◆ CompositeModuleBase

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

using Mila::Dnn::MLP< TDeviceType, TDataType >::CompositeModuleBase = CompositeModule<TDeviceType, TDataType>

export

Alias for base module type.

◆ MR

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

using Mila::Dnn::MLP< TDeviceType, TDataType >::MR = std::conditional_t<TDeviceType == DeviceType::Cuda, CudaMemoryResource, CpuMemoryResource>

export

Memory resource type used for tensors, selected based on device type.

Constructor & Destructor Documentation

◆ MLP() [1/2]

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

Mila::Dnn::MLP< TDeviceType, TDataType >::MLP	(	const std::string &	device_name,
		const MLPConfig &	config
	)

inlineexplicitexport

Constructs a new MLP module with a device name.

Creates a new DeviceContext internally using the provided device name. This constructor is useful for creating standalone modules without pre-existing device contexts.

Parameters

device_name	The name of the device to use (e.g., "CPU", "CUDA:0").
config	Configuration parameters for the MLP module.

Exceptions

std::invalid_argument	If the device name is invalid or the configuration is invalid
std::runtime_error	If device type doesn't match template parameter TDeviceType

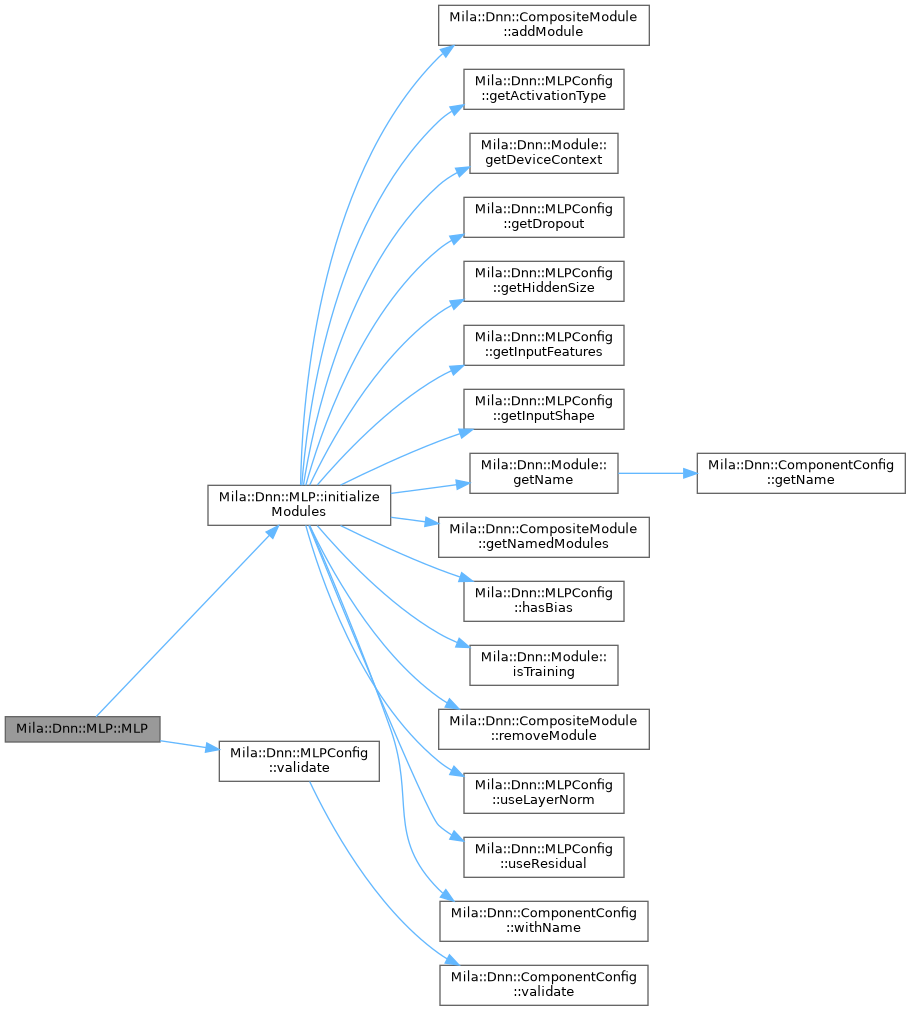

Here is the call graph for this function:

◆ MLP() [2/2]

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

Mila::Dnn::MLP< TDeviceType, TDataType >::MLP	(	std::shared_ptr< DeviceContext >	device_context,
		const MLPConfig &	config
	)

inlineexplicitexport

Constructs a new MLP module with a provided device context.

Uses a pre-existing DeviceContext instance. This constructor is useful when integrating the module into a larger network that shares device contexts across modules.

Parameters

device_context	The device context to use for this module.
config	Configuration parameters for the MLP module.

Exceptions

std::invalid_argument	If device_context is null or configuration is invalid
std::runtime_error	If device context type doesn't match template parameter TDeviceType

Here is the call graph for this function:

Member Function Documentation

◆ backward()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

void Mila::Dnn::MLP< TDeviceType, TDataType >::backward	(	const Tensor< TDataType, MR > &	input,
		const Tensor< TDataType, MR > &	output_grad,
		Tensor< TDataType, MR > &	input_grad
	)

inlineexport

Performs the backward pass of the MLP block.

Computes gradients for all components in the network by working backwards from the output gradient. Handles residual connections, dropout, layer normalization, and activation functions.

Parameters

input	The input tensor from the forward pass.
output_grad	The gradient of loss with respect to the output.
input_grad	The tensor to store gradients with respect to input.

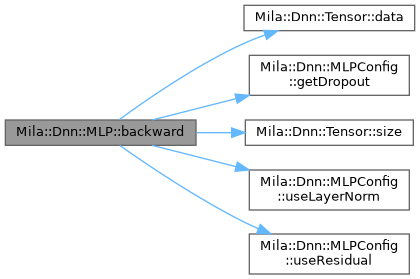

Here is the call graph for this function:

◆ forward()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

void Mila::Dnn::MLP< TDeviceType, TDataType >::forward	(	const Tensor< TDataType, MR > &	input,
		Tensor< TDataType, MR > &	output
	)

inlineexport

Performs the forward pass of the MLP block.

Processes the input through the full network: Linear -> (LayerNorm) -> Activation -> (Dropout) -> Linear -> (Residual)

When in inference mode with fused operations enabled, uses optimized execution.

Parameters

input	The input tensor to be processed.
output	The output tensor where the results will be stored.

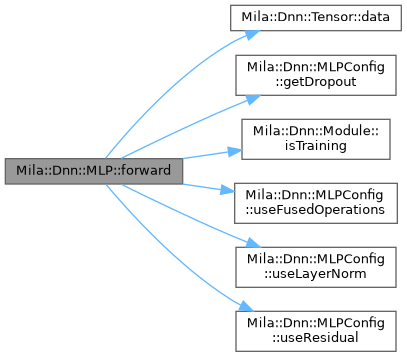

Here is the call graph for this function:

◆ initializeModules()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

void Mila::Dnn::MLP< TDeviceType, TDataType >::initializeModules ( )

inlineexportprivate

Initializes all submodules for the MLP.

Creates and configures:

Two linear layers with configurable hidden size
Activation function (GELU or others in the future)
Optional layer normalization
Optional dropout Also prepares intermediate tensors for computation.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ load()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

void Mila::Dnn::MLP< TDeviceType, TDataType >::load ( ModelArchive & archive )

inlineoverrideexportvirtual

Deserializes the module state from a ZIP archive.

Loads the state of all submodules from the provided ZIP archive.

Parameters

zip	The ZIP archive to load the module state from.

Reimplemented from Mila::Dnn::CompositeModule< TDeviceType, TDataType >.

Here is the call graph for this function:

◆ parameterCount()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

size_t Mila::Dnn::MLP< TDeviceType, TDataType >::parameterCount ( ) const

inlineoverrideexportvirtual

Gets the number of trainable parameters in this module.

Counts the total number of parameters across all submodules.

Returns: size_t The total number of parameters.

Reimplemented from Mila::Dnn::CompositeModule< TDeviceType, TDataType >.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ save()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

void Mila::Dnn::MLP< TDeviceType, TDataType >::save ( ModelArchive & archive ) const

inlineoverrideexportvirtual

Serializes the module state to a ZIP archive.

Saves the state of all submodules to the provided ZIP archive.

Parameters

zip	The ZIP archive to save the module state to.

Reimplemented from Mila::Dnn::CompositeModule< TDeviceType, TDataType >.

Here is the call graph for this function:

◆ toString()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

std::string Mila::Dnn::MLP< TDeviceType, TDataType >::toString ( ) const

inlineoverrideexportvirtual

Generates a string representation of this module's configuration.

Returns: std::string A formatted string with module information

Reimplemented from Mila::Dnn::CompositeModule< TDeviceType, TDataType >.

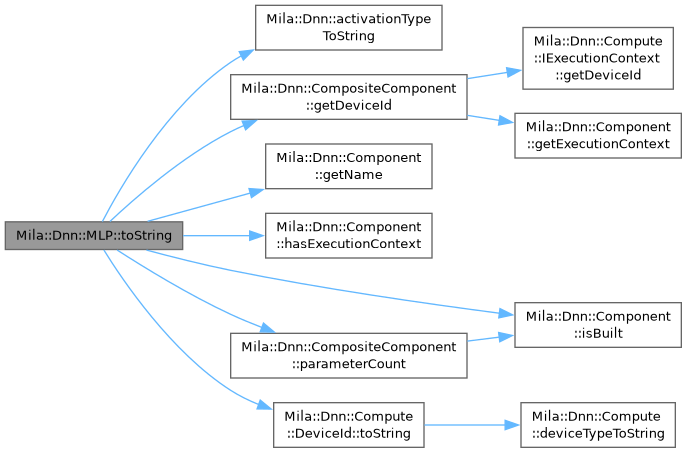

Here is the call graph for this function:

Member Data Documentation

◆ act_output_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

Tensor<TDataType, MR> Mila::Dnn::MLP< TDeviceType, TDataType >::act_output_

exportprivate

Output tensor from activation function.

◆ activation_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

std::shared_ptr<Module<TDeviceType, TDataType> > Mila::Dnn::MLP< TDeviceType, TDataType >::activation_ { nullptr }

exportprivate

Activation function module.

◆ config_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

MLPConfig Mila::Dnn::MLP< TDeviceType, TDataType >::config_

exportprivate

Configuration for the MLP module.

◆ dropout1_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

std::shared_ptr<Dropout<TDeviceType, TDataType> > Mila::Dnn::MLP< TDeviceType, TDataType >::dropout1_ { nullptr }

exportprivate

Optional dropout module.

◆ dropout1_output_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

Tensor<TDataType, MR> Mila::Dnn::MLP< TDeviceType, TDataType >::dropout1_output_

exportprivate

Output tensor from dropout.

◆ fc1_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

std::shared_ptr<Linear<TDeviceType, TDataType> > Mila::Dnn::MLP< TDeviceType, TDataType >::fc1_ { nullptr }

exportprivate

First linear layer (input_features -> hidden_size).

◆ fc1_output_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

Tensor<TDataType, MR> Mila::Dnn::MLP< TDeviceType, TDataType >::fc1_output_

exportprivate

Output tensor from first linear layer.

◆ fc2_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

std::shared_ptr<Linear<TDeviceType, TDataType> > Mila::Dnn::MLP< TDeviceType, TDataType >::fc2_ { nullptr }

exportprivate

Second linear layer (hidden_size -> input_features).

◆ fc2_output_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

Tensor<TDataType, MR> Mila::Dnn::MLP< TDeviceType, TDataType >::fc2_output_

exportprivate

Output tensor from second linear layer.

◆ norm1_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

std::shared_ptr<LayerNorm<TDeviceType, TDataType> > Mila::Dnn::MLP< TDeviceType, TDataType >::norm1_ { nullptr }

exportprivate

Optional layer normalization module.

◆ norm1_output_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

Tensor<TDataType, MR> Mila::Dnn::MLP< TDeviceType, TDataType >::norm1_output_

exportprivate

Output tensor from layer normalization.

◆ residual_input_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

Tensor<TDataType, MR> Mila::Dnn::MLP< TDeviceType, TDataType >::residual_input_

exportprivate

Cached input tensor for residual connection.

The documentation for this class was generated from the following file:

/home/runner/work/Mila/Mila/Mila/Src/Dnn/Modules/Blocks/MLP.ixx

Public Types

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ CompositeModuleBase

◆ MR

Constructor & Destructor Documentation

◆ MLP() [1/2]

◆ MLP() [2/2]

Member Function Documentation

◆ backward()

◆ forward()

◆ initializeModules()

◆ load()

◆ parameterCount()

◆ save()

◆ toString()

Member Data Documentation

◆ act_output_

◆ activation_

◆ config_

◆ dropout1_

◆ dropout1_output_

◆ fc1_

◆ fc1_output_

◆ fc2_

◆ fc2_output_

◆ norm1_

◆ norm1_output_

◆ residual_input_
