A module class that can contain and manage child modules. More...

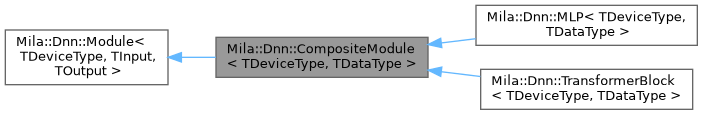

Inheritance diagram for Mila::Dnn::CompositeModule< TDeviceType, TDataType >:

[legend]

Collaboration diagram for Mila::Dnn::CompositeModule< TDeviceType, TDataType >:

[legend]

Public Types
using	ModuleBase = Module< TDeviceType, TDataType, TDataType >
	Base class type for the module.

using	MR = std::conditional_t< TDeviceType==DeviceType::Cuda, CudaMemoryResource, HostMemoryResource >
	Memory resource type based on device type.

Public Types inherited from Mila::Dnn::Module< TDeviceType, TInput, TOutput >
using	MR = std::conditional_t< TDeviceType==DeviceType::Cuda, CudaMemoryResource, CpuMemoryResource >

Public Member Functions
	CompositeModule ()
	Default constructor.

	CompositeModule (const std::string &device_name, const ComponentConfig &config)
	Constructor with device name.

	CompositeModule (std::shared_ptr< DeviceContext > context, const ComponentConfig &config)
	Constructor with device context.

virtual	~CompositeModule ()=default
	Virtual destructor.

CompositeModule &	addModule (const std::string &name, std::shared_ptr< Module< TDeviceType, TDataType, TDataType > > module)
	Add a named child module to this module.

CompositeModule &	addModule (std::shared_ptr< Module< TDeviceType, TDataType, TDataType > > module)
	Add an unnamed child module to this module.

std::shared_ptr< Module< TDeviceType, TDataType, TDataType > >	getModule (const std::string &name) const
	Get a specific sub-module by name.

const std::vector< std::shared_ptr< Module< TDeviceType, TDataType, TDataType > > > &	getModules () const
	Get all sub-modules contained in this module.

const std::unordered_map< std::string, std::shared_ptr< Module< TDeviceType, TDataType, TDataType > > > &	getNamedModules () const
	Get all named sub-modules contained in this module.

bool	hasModule (const std::string &name) const
	Check if a sub-module with the given name exists.

void	load (ModelArchive &archive) override
	Default load implementation for container modules.

size_t	parameterCount () const override
	Count the total number of parameters in this module and all sub-modules.

bool	removeModule (const std::string &name)
	Remove a sub-module by name.

bool	replaceModule (const std::string &name, std::shared_ptr< Module< TDeviceType, TDataType, TDataType > > module)
	Replace an existing sub-module with a new one.

void	save (ModelArchive &archive) const override
	Default save implementation for container modules.

void	setTraining (bool is_training) override
	Set the training mode for this module and all its sub-modules.

std::string	toString () const override
	Default toString implementation for container modules.

Public Member Functions inherited from Mila::Dnn::Module< TDeviceType, TInput, TOutput >
	Module (const std::string &device_name, const ComponentConfig &config)
	Constructor with device name.

	Module (std::shared_ptr< DeviceContext > context, const ComponentConfig &config)
	Constructor with a specific device context.

virtual	~Module ()=default
	Virtual destructor for proper cleanup in derived classes.

std::shared_ptr< Compute::DeviceContext >	getDeviceContext () const
	Get the device context for this module.

Compute::DeviceType	getDeviceType () const
	Get the device type of the current device context.

std::string	getName () const
	Get the name of the module.

const auto &	getParameterTensors () const
	Get the parameter tensors of this module.

const ComputePrecision::Policy &	getPrecision () const

const auto &	getStateTensors () const
	Get the state tensors of this module.

bool	isTraining () const
	Check if the module is in training mode.

Private Attributes
std::unordered_map< std::string, std::shared_ptr< Module< TDeviceType, TDataType, TDataType > > >	child_module_map_
	Named child modules for efficient lookup by name.

std::vector< std::shared_ptr< Module< TDeviceType, TDataType, TDataType > > >	child_modules_
	Child modules in the order they were added (ordered)

Additional Inherited Members
Protected Member Functions inherited from Mila::Dnn::Module< TDeviceType, TInput, TOutput >
const std::string	parametersToString () const
	Helper method to convert parameters to string representation.

const std::string	stateToString () const
	Helper method to convert state tensors to string representation.

Protected Attributes inherited from Mila::Dnn::Module< TDeviceType, TInput, TOutput >
std::unordered_map< std::string, std::shared_ptr< Tensor< TOutput, MR > > >	parameter_map_ = {}
	Map of parameter names to parameter tensors.

std::unordered_map< std::string, std::shared_ptr< Tensor< TOutput, MR > > >	state_map_ = {}
	Map of state names to state tensors.

Detailed Description

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>
requires ValidTensorType<TDataType>
class Mila::Dnn::CompositeModule< TDeviceType, TDataType >

A module class that can contain and manage child modules.

CompositeModule extends the base Module class with functionality to add, remove, and manage child modules. This is used for composite neural network components like MLPs, transformers, etc. that are built by composing simpler modules.

A single type parameter is used for data consistency across the module, as the output of one layer becomes the input of the next in a feed-forward composite architecture.

Template Parameters

TDeviceType	The device type (CPU or CUDA) on which the module will operate.
TDataType	Data type used for both input and output tensor elements.

Member Typedef Documentation

◆ ModuleBase

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

using Mila::Dnn::CompositeModule< TDeviceType, TDataType >::ModuleBase = Module<TDeviceType, TDataType, TDataType>

Base class type for the module.

◆ MR

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

using Mila::Dnn::CompositeModule< TDeviceType, TDataType >::MR = std::conditional_t<TDeviceType == DeviceType::Cuda, CudaMemoryResource, HostMemoryResource>

Memory resource type based on device type.

Constructor & Destructor Documentation

◆ CompositeModule() [1/3]

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

Mila::Dnn::CompositeModule< TDeviceType, TDataType >::CompositeModule ( )

inline

Default constructor.

◆ CompositeModule() [2/3]

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

Mila::Dnn::CompositeModule< TDeviceType, TDataType >::CompositeModule	(	const std::string &	device_name,
		const ComponentConfig &	config
	)

inlineexplicit

Constructor with device name.

Parameters

device_name	The device name to use for this module.
precision	The compute precision policy to use (defaults to Auto).

◆ CompositeModule() [3/3]

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

Mila::Dnn::CompositeModule< TDeviceType, TDataType >::CompositeModule	(	std::shared_ptr< DeviceContext >	context,
		const ComponentConfig &	config
	)

inlineexplicit

Constructor with device context.

Parameters

context	The device context to use for this module.
precision	The compute precision policy to use (defaults to Auto).

◆ ~CompositeModule()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

virtual Mila::Dnn::CompositeModule< TDeviceType, TDataType >::~CompositeModule ( )

virtualdefault

Virtual destructor.

Member Function Documentation

◆ addModule() [1/2]

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

CompositeModule & Mila::Dnn::CompositeModule< TDeviceType, TDataType >::addModule	(	const std::string &	name,
		std::shared_ptr< Module< TDeviceType, TDataType, TDataType > >	module
	)

inline

Add a named child module to this module.

Parameters

name	The name to identify the child module.
module	The child module to register.

Exceptions

std::invalid_argument	If the name is empty or already exists.
std::invalid_argument	If the module pointer is null.

Returns: Reference to this module for method chaining.

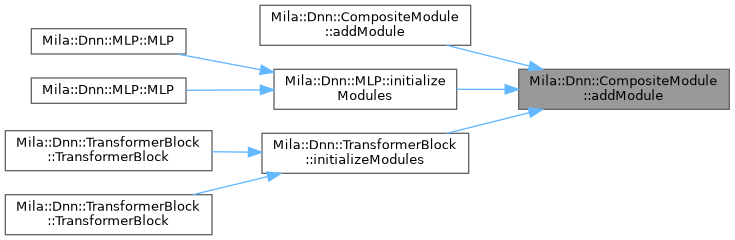

Here is the caller graph for this function:

◆ addModule() [2/2]

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

CompositeModule & Mila::Dnn::CompositeModule< TDeviceType, TDataType >::addModule ( std::shared_ptr< Module< TDeviceType, TDataType, TDataType > > module )

inline

Add an unnamed child module to this module.

Parameters

module The child module to register.

Exceptions

std::invalid_argument If the module pointer is null.

Returns: Reference to this module for method chaining.

Here is the call graph for this function:

◆ getModule()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

std::shared_ptr< Module< TDeviceType, TDataType, TDataType > > Mila::Dnn::CompositeModule< TDeviceType, TDataType >::getModule ( const std::string & name ) const

inline

Get a specific sub-module by name.

Parameters

name	The name of the sub-module to retrieve.

Returns: std::shared_ptr<Module<TDeviceType, TDataType, TDataType>> The requested module.

Exceptions

std::out_of_range If no module with the given name exists.

◆ getModules()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

const std::vector< std::shared_ptr< Module< TDeviceType, TDataType, TDataType > > > & Mila::Dnn::CompositeModule< TDeviceType, TDataType >::getModules ( ) const

inline

Get all sub-modules contained in this module.

Returns: const std::vector<std::shared_ptr<Module<TDeviceType, TDataType, TDataType>>>& Vector of child module pointers.

Here is the caller graph for this function:

◆ getNamedModules()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

const std::unordered_map< std::string, std::shared_ptr< Module< TDeviceType, TDataType, TDataType > > > & Mila::Dnn::CompositeModule< TDeviceType, TDataType >::getNamedModules ( ) const

inline

Get all named sub-modules contained in this module.

Returns: const std::unordered_map<std::string, std::shared_ptr<Module<TDeviceType, TDataType, TDataType>>>& Map of child module names to pointers.

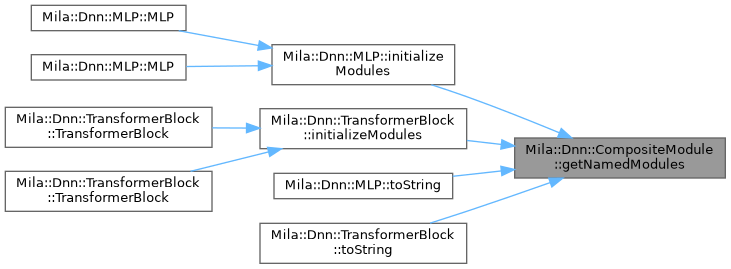

Here is the caller graph for this function:

◆ hasModule()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

bool Mila::Dnn::CompositeModule< TDeviceType, TDataType >::hasModule ( const std::string & name ) const

inline

Check if a sub-module with the given name exists.

Parameters

name	The name to check.

Returns: bool True if a sub-module with the given name exists.

◆ load()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

void Mila::Dnn::CompositeModule< TDeviceType, TDataType >::load ( ModelArchive & archive )

inlineoverridevirtual

Default load implementation for container modules.

Loads all child modules. Override if container has its own parameters.

Parameters

zip	The ZIP archive to load the module state from.

Implements Mila::Dnn::Module< TDeviceType, TInput, TOutput >.

Reimplemented in Mila::Dnn::MLP< TDeviceType, TDataType >, and Mila::Dnn::TransformerBlock< TDeviceType, TDataType >.

◆ parameterCount()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

size_t Mila::Dnn::CompositeModule< TDeviceType, TDataType >::parameterCount ( ) const

inlineoverridevirtual

Count the total number of parameters in this module and all sub-modules.

Returns: size_t Total number of parameters.

Implements Mila::Dnn::Module< TDeviceType, TInput, TOutput >.

Reimplemented in Mila::Dnn::MLP< TDeviceType, TDataType >, and Mila::Dnn::TransformerBlock< TDeviceType, TDataType >.

◆ removeModule()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

bool Mila::Dnn::CompositeModule< TDeviceType, TDataType >::removeModule ( const std::string & name )

inline

Remove a sub-module by name.

Parameters

name	The name of the sub-module to remove.

Returns: bool True if a module was removed, false if no module with that name existed.

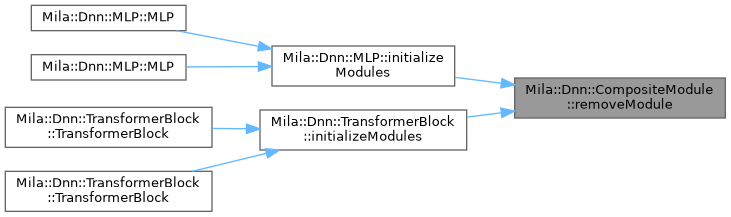

Here is the caller graph for this function:

◆ replaceModule()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

bool Mila::Dnn::CompositeModule< TDeviceType, TDataType >::replaceModule	(	const std::string &	name,
		std::shared_ptr< Module< TDeviceType, TDataType, TDataType > >	module
	)

inline

Replace an existing sub-module with a new one.

Parameters

name	The name of the sub-module to replace.
module	The new module to use as replacement.

Returns: bool True if a module was replaced, false if no module with that name existed.

Exceptions

std::invalid_argument If the replacement module pointer is null.

◆ save()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

void Mila::Dnn::CompositeModule< TDeviceType, TDataType >::save ( ModelArchive & archive ) const

inlineoverridevirtual

Default save implementation for container modules.

Saves all child modules. Override if container has its own parameters.

Parameters

zip	The ZIP archive to save the module state to.

Implements Mila::Dnn::Module< TDeviceType, TInput, TOutput >.

Reimplemented in Mila::Dnn::MLP< TDeviceType, TDataType >, and Mila::Dnn::TransformerBlock< TDeviceType, TDataType >.

◆ setTraining()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

void Mila::Dnn::CompositeModule< TDeviceType, TDataType >::setTraining ( bool is_training )

inlineoverridevirtual

Set the training mode for this module and all its sub-modules.

Parameters

is_training True if the module is in training mode, false for inference mode.

Reimplemented from Mila::Dnn::Module< TDeviceType, TInput, TOutput >.

Here is the call graph for this function:

◆ toString()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

std::string Mila::Dnn::CompositeModule< TDeviceType, TDataType >::toString ( ) const

inlineoverridevirtual

Default toString implementation for container modules.

Lists all child modules. Override for custom string representation.

Returns: std::string A string representation of the module information.

Implements Mila::Dnn::Module< TDeviceType, TInput, TOutput >.

Reimplemented in Mila::Dnn::MLP< TDeviceType, TDataType >, and Mila::Dnn::TransformerBlock< TDeviceType, TDataType >.

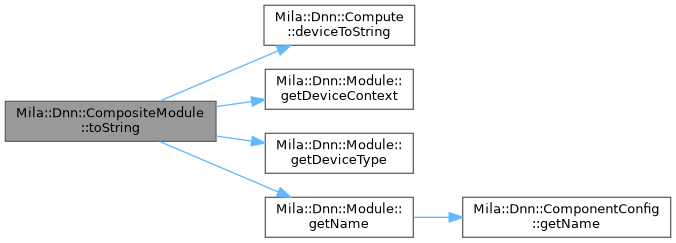

Here is the call graph for this function:

Member Data Documentation

◆ child_module_map_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

std::unordered_map<std::string, std::shared_ptr<Module<TDeviceType, TDataType, TDataType> > > Mila::Dnn::CompositeModule< TDeviceType, TDataType >::child_module_map_

private

Named child modules for efficient lookup by name.

◆ child_modules_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TDataType = float>

std::vector<std::shared_ptr<Module<TDeviceType, TDataType, TDataType> > > Mila::Dnn::CompositeModule< TDeviceType, TDataType >::child_modules_

private

Child modules in the order they were added (ordered)

The documentation for this class was generated from the following file:

/home/runner/work/Mila/Mila/Mila/Src/Dnn/Modules/CompositeModule.ixx

Public Types

Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ModuleBase

◆ MR

Constructor & Destructor Documentation

◆ CompositeModule() [1/3]

◆ CompositeModule() [2/3]

◆ CompositeModule() [3/3]

◆ ~CompositeModule()

Member Function Documentation

◆ addModule() [1/2]

◆ addModule() [2/2]

◆ getModule()

◆ getModules()

◆ getNamedModules()

◆ hasModule()

◆ load()

◆ parameterCount()

◆ removeModule()

◆ replaceModule()

◆ save()

◆ setTraining()

◆ toString()

Member Data Documentation

◆ child_module_map_

◆ child_modules_
