CPU implementation of the Multi-Head Attention operation for neural networks. More...

Inheritance diagram for Mila::Dnn::Compute::CpuMultiHeadAttentionOp:

[legend]

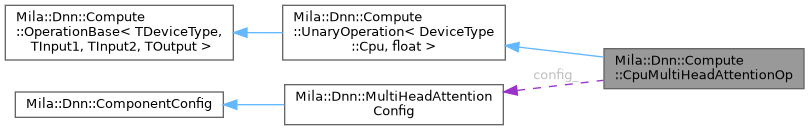

Collaboration diagram for Mila::Dnn::Compute::CpuMultiHeadAttentionOp:

[legend]

Public Types
using	MR = typename CpuDevice::MR

using	OperationBase = UnaryOperation< DeviceType::Cpu, float >

Public Types inherited from Mila::Dnn::Compute::UnaryOperation< DeviceType::Cpu, float >
using	MR = std::conditional_t< TDeviceType==DeviceType::Cuda, CudaMemoryResource, HostMemoryResource >
	Memory resource type based on device type.

Public Member Functions
	CpuMultiHeadAttentionOp (const MultiHeadAttentionConfig &config)
	Constructs a new CPU Attention operation with the default device context.

	CpuMultiHeadAttentionOp (std::shared_ptr< DeviceContext > context, const MultiHeadAttentionConfig &config)
	Constructs a new CPU Attention operation with a specific device context.

void	backward (const Tensor< float, MR > &input, const Tensor< float, MR > &output, const Tensor< float, MR > &output_gradient, const std::vector< std::shared_ptr< Tensor< float, MR > > > &parameters, std::vector< std::shared_ptr< Tensor< float, MR > > > &parameter_gradients, Tensor< float, MR > &input_gradient, const OperationAttributes &properties, const std::vector< std::shared_ptr< Tensor< float, MR > > > &output_state) const
	Performs the backward pass of the Multi-Head Attention operation.

void	backward_impl (float dinp, float dpreatt, float datt, float dout, float inp, float att, int B, int T, int C, int NH) const
	Helper method for backward pass implementation.

void	forward (const Tensor< float, MR > &input, const std::vector< std::shared_ptr< Tensor< float, MR > > > &parameters, const OperationAttributes &properties, Tensor< float, MR > &output, std::vector< std::shared_ptr< Tensor< float, MR > > > &output_state) const override
	Performs the forward pass of the Multi-Head Attention operation.

std::string	getName () const override
	Gets the name of this operation.

Public Member Functions inherited from Mila::Dnn::Compute::UnaryOperation< DeviceType::Cpu, float >
	UnaryOperation (OperationType operation_type)
	Constructs a UnaryOperation with the specified operation type.

	UnaryOperation (OperationType operation_type, std::shared_ptr< DeviceContext > context)
	Constructs a UnaryOperation with the specified operation type and device context.

virtual	~UnaryOperation ()=default
	Virtual destructor for proper cleanup of derived classes.

virtual void	backward (const Tensor< float, MR > &grad, const std::vector< std::shared_ptr< Tensor< float, MR > > > &parameters, std::vector< std::shared_ptr< Tensor< float, MR > > > &output_grads) const
	Executes the backward pass of a unary operation.

virtual void	backward (const Tensor< float, MR > &input, const Tensor< float, MR > &output_grad, const std::vector< std::shared_ptr< Tensor< float, MR > > > &parameters, std::vector< std::shared_ptr< Tensor< float, MR > > > &parameter_grads, Tensor< float, MR > &input_grad, const OperationAttributes &properties, const std::vector< std::shared_ptr< Tensor< float, MR > > > &output_state) const
	Executes the comprehensive backward pass of a unary operation.

virtual void	forward (const Tensor< float, MR > &input, const std::vector< std::shared_ptr< Tensor< float, MR > > > &parameters, const OperationAttributes &properties, Tensor< float, MR > &output, std::vector< std::shared_ptr< Tensor< float, MR > > > &output_state) const=0
	Executes the forward pass of a unary operation.

Public Member Functions inherited from Mila::Dnn::Compute::OperationBase< TDeviceType, TInput1, TInput2, TOutput >
	OperationBase (OperationType operation_type, std::shared_ptr< DeviceContext > context)
	Constructs an OperationBase object with a specific device context and compute precision.

virtual	~OperationBase ()=default
	Virtual destructor for the OperationBase class.

std::shared_ptr< DeviceContext >	getDeviceContext () const
	Gets the device context associated with this operation.

DeviceType	getDeviceType () const
	Gets the device type for this operation.

OperationType	getOperationType () const
	Gets the operation type enumeration value.

Private Attributes
MultiHeadAttentionConfig	config_
	Configuration for the Multi-Head Attention operation.

Detailed Description

CPU implementation of the Multi-Head Attention operation for neural networks.

This class provides a CPU-based implementation of the Multi-Head Attention operation, which is a key component of transformer architectures. The operation performs scaled dot-product attention with multiple attention heads operating in parallel, allowing the model to jointly attend to information from different representation subspaces at different positions.

The implementation handles the full attention process:

Query-Key dot products
Scaling
Softmax computation
Attention weighting of values

Template Parameters

float	The data type of the input tensor elements.
TDataType	The data type used for computation and output (defaults to the input type).

Member Typedef Documentation

◆ MR

using Mila::Dnn::Compute::CpuMultiHeadAttentionOp::MR = typename CpuDevice::MR

◆ OperationBase

using Mila::Dnn::Compute::CpuMultiHeadAttentionOp::OperationBase = UnaryOperation<DeviceType::Cpu, float>

Constructor & Destructor Documentation

◆ CpuMultiHeadAttentionOp() [1/2]

Mila::Dnn::Compute::CpuMultiHeadAttentionOp::CpuMultiHeadAttentionOp ( const MultiHeadAttentionConfig & config )

inline

Constructs a new CPU Attention operation with the default device context.

Initializes the operation with a CPU device context.

◆ CpuMultiHeadAttentionOp() [2/2]

Mila::Dnn::Compute::CpuMultiHeadAttentionOp::CpuMultiHeadAttentionOp	(	std::shared_ptr< DeviceContext >	context,
		const MultiHeadAttentionConfig &	config
	)

inline

Constructs a new CPU Attention operation with a specific device context.

Parameters

context The device context to use for this operation.

Exceptions

std::runtime_error If the context is not for a CPU device.

Member Function Documentation

◆ backward()

void Mila::Dnn::Compute::CpuMultiHeadAttentionOp::backward	(	const Tensor< float, MR > &	input,
		const Tensor< float, MR > &	output,
		const Tensor< float, MR > &	output_gradient,
		const std::vector< std::shared_ptr< Tensor< float, MR > > > &	parameters,
		std::vector< std::shared_ptr< Tensor< float, MR > > > &	parameter_gradients,
		Tensor< float, MR > &	input_gradient,
		const OperationAttributes &	properties,
		const std::vector< std::shared_ptr< Tensor< float, MR > > > &	output_state
	)		const

inline

Performs the backward pass of the Multi-Head Attention operation.

Computes gradients with respect to inputs (query, key, value vectors), pre-softmax attention scores, and attention weights based on the output gradient.

Parameters

input	Input tensor from the forward pass.
output	Output tensor from the forward pass.
output_gradient	Gradient of the loss with respect to the output.
parameters	Parameters used in forward pass (not used in this operation).
parameter_gradients	Gradients for parameters (not used in this operation).
input_gradient	Gradient of the loss with respect to the input.
properties	Additional attributes for the operation.
output_state	Cache tensors [preatt, att] from forward pass.

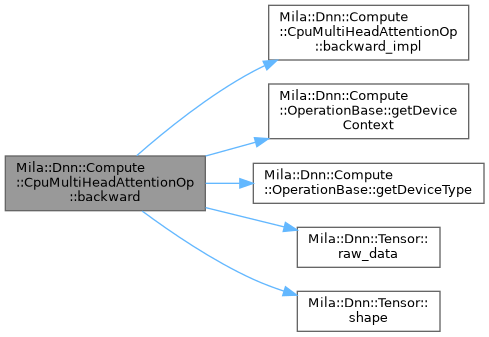

Here is the call graph for this function:

◆ backward_impl()

void Mila::Dnn::Compute::CpuMultiHeadAttentionOp::backward_impl	(	float *	dinp,
		float *	dpreatt,
		float *	datt,
		float *	dout,
		float *	inp,
		float *	att,
		int	B,
		int	T,
		int	C,
		int	NH
	)		const

inline

Helper method for backward pass implementation.

Parameters

dinp	Pointer to the gradient buffer for the input (query, key, value).
dpreatt	Pointer to the gradient buffer for pre-softmax attention scores.
datt	Pointer to the gradient buffer for attention weights.
dout	Pointer to the gradient buffer from the output.
inp	Pointer to the original input values (query, key, value).
att	Pointer to the attention weights computed during forward pass.
B	Batch size.
TDataType	Sequence length.
C	Feature dimension (divided by 3 for query, key, value).
NH	Number of attention heads.

Here is the caller graph for this function:

◆ forward()

void Mila::Dnn::Compute::CpuMultiHeadAttentionOp::forward	(	const Tensor< float, MR > &	input,
		const std::vector< std::shared_ptr< Tensor< float, MR > > > &	parameters,
		const OperationAttributes &	properties,
		Tensor< float, MR > &	output,
		std::vector< std::shared_ptr< Tensor< float, MR > > > &	output_state
	)		const

inlineoverride

Performs the forward pass of the Multi-Head Attention operation.

Computes attention scores between queries and keys, applies softmax to get attention weights, and uses these weights to compute a weighted sum of value vectors.

Parameters

input	Input tensor of shape [B, TDataType, 3*C] containing concatenated query, key, and value vectors.
parameters	Additional parameters (not used in this operation).
properties	Additional attributes for the operation.
output	Output tensor of shape [B, TDataType, C] containing the attention output.
output_state	Cache for intermediate results [preatt, att] that are used in the backward pass.

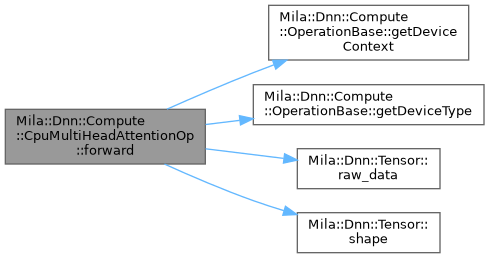

Here is the call graph for this function:

◆ getName()

std::string Mila::Dnn::Compute::CpuMultiHeadAttentionOp::getName ( ) const

inlineoverridevirtual

Gets the name of this operation.

Returns: std::string The name of the operation ("Cpu::AttentionOp").

Implements Mila::Dnn::Compute::OperationBase< TDeviceType, TInput1, TInput2, TOutput >.

Member Data Documentation

◆ config_

MultiHeadAttentionConfig Mila::Dnn::Compute::CpuMultiHeadAttentionOp::config_

private

Configuration for the Multi-Head Attention operation.

The documentation for this class was generated from the following file:

/home/runner/work/Mila/Mila/Mila/Src/Dnn/Compute/Operations/Cpu/CpuMultiHeadAttentionOp.ixx
