CUDA implementation of the Multi-Head Attention operation for transformer models. More...

Inheritance diagram for Mila::Dnn::Compute::CudaMultiHeadAttentionOp< TInput, TOutput >:

[legend]

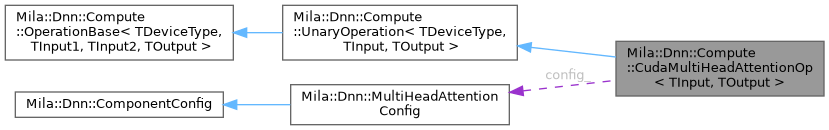

Collaboration diagram for Mila::Dnn::Compute::CudaMultiHeadAttentionOp< TInput, TOutput >:

[legend]

Public Types
using	MR = typename CudaDevice::MR

using	UnaryOperationBase = UnaryOperation< DeviceType::Cuda, TInput, TOutput >

Public Types inherited from Mila::Dnn::Compute::UnaryOperation< TDeviceType, TInput, TOutput >
using	MR = std::conditional_t< TDeviceType==DeviceType::Cuda, CudaMemoryResource, HostMemoryResource >
	Memory resource type based on device type.

Public Member Functions
	CudaMultiHeadAttentionOp (const MultiHeadAttentionConfig &config)
	Constructs a new CUDA Multi-Head Attention operation with the default device context.

	CudaMultiHeadAttentionOp (std::shared_ptr< DeviceContext > context, const MultiHeadAttentionConfig &config)
	Constructs a new CUDA Multi-Head Attention operation with a specific device context.

void	backward (const Tensor< TInput, MR > &input, const Tensor< TInput, MR > &output, const Tensor< TInput, MR > &output_gradient, const std::vector< std::shared_ptr< Tensor< TInput, MR > > > &parameters, std::vector< std::shared_ptr< Tensor< TInput, MR > > > &parameter_gradients, Tensor< TInput, MR > &input_gradient, const OperationAttributes &properties, const std::vector< std::shared_ptr< Tensor< TInput, MR > > > &output_state) const
	Performs the backward pass of the Multi-Head Attention operation.

void	forward (const Tensor< TInput, MR > &input, const std::vector< std::shared_ptr< Tensor< TOutput, MR > > > &parameters, const OperationAttributes &properties, Tensor< TOutput, MR > &output, std::vector< std::shared_ptr< Tensor< TOutput, MR > > > &output_state) const override
	Performs the forward pass of the Multi-Head Attention operation on CUDA.

std::string	getName () const override
	Gets the name of this operation.

Public Member Functions inherited from Mila::Dnn::Compute::UnaryOperation< TDeviceType, TInput, TOutput >
	UnaryOperation (OperationType operation_type)
	Constructs a UnaryOperation with the specified operation type.

	UnaryOperation (OperationType operation_type, std::shared_ptr< DeviceContext > context)
	Constructs a UnaryOperation with the specified operation type and device context.

virtual	~UnaryOperation ()=default
	Virtual destructor for proper cleanup of derived classes.

virtual void	backward (const Tensor< TInput, MR > &grad, const std::vector< std::shared_ptr< Tensor< TOutput, MR > > > &parameters, std::vector< std::shared_ptr< Tensor< TOutput, MR > > > &output_grads) const
	Executes the backward pass of a unary operation.

virtual void	backward (const Tensor< TInput, MR > &input, const Tensor< TOutput, MR > &output_grad, const std::vector< std::shared_ptr< Tensor< TOutput, MR > > > &parameters, std::vector< std::shared_ptr< Tensor< TOutput, MR > > > &parameter_grads, Tensor< TInput, MR > &input_grad, const OperationAttributes &properties, const std::vector< std::shared_ptr< Tensor< TOutput, MR > > > &output_state) const
	Executes the comprehensive backward pass of a unary operation.

virtual void	forward (const Tensor< TInput, MR > &input, const std::vector< std::shared_ptr< Tensor< TOutput, MR > > > &parameters, const OperationAttributes &properties, Tensor< TOutput, MR > &output, std::vector< std::shared_ptr< Tensor< TOutput, MR > > > &output_state) const =0
	Executes the forward pass of a unary operation.

Public Member Functions inherited from Mila::Dnn::Compute::OperationBase< TDeviceType, TInput1, TInput2, TOutput >
	OperationBase (OperationType operation_type, std::shared_ptr< DeviceContext > context)
	Constructs an OperationBase object with a specific device context and compute precision.

virtual	~OperationBase ()=default
	Virtual destructor for the OperationBase class.

std::shared_ptr< DeviceContext >	getDeviceContext () const
	Gets the device context associated with this operation.

DeviceType	getDeviceType () const
	Gets the device type for this operation.

OperationType	getOperationType () const
	Gets the operation type enumeration value.

Private Attributes
MultiHeadAttentionConfig	config_
	Configuration for the MHA operation.

Detailed Description

template<typename TInput = float, typename TOutput = TInput>
requires ValidFloatTensorTypes<TInput, TOutput>
class Mila::Dnn::Compute::CudaMultiHeadAttentionOp< TInput, TOutput >

CUDA implementation of the Multi-Head Attention operation for transformer models.

This class provides a CUDA-based implementation of the Multi-Head Attention operation, which is a key component of transformer architectures. The operation allows the model to jointly attend to information from different representation subspaces at different positions.

Multi-Head Attention consists of several attention mechanisms operating in parallel:

Linear projections of the input into query, key, and value vectors
Scaled dot-product attention computation between queries and keys
Applying attention weights to values
Concatenation of attention outputs from different heads

The implementation is optimized for NVIDIA GPUs using CUDA for high-performance computation.

Template Parameters

TInput	The data type of the input tensor elements.
TDataType	The data type of the output tensor elements (defaults to the input type).

Member Typedef Documentation

◆ MR

template<typename TInput = float, typename TOutput = TInput>

using Mila::Dnn::Compute::CudaMultiHeadAttentionOp< TInput, TOutput >::MR = typename CudaDevice::MR

◆ UnaryOperationBase

template<typename TInput = float, typename TOutput = TInput>

using Mila::Dnn::Compute::CudaMultiHeadAttentionOp< TInput, TOutput >::UnaryOperationBase = UnaryOperation<DeviceType::Cuda, TInput, TOutput>

Constructor & Destructor Documentation

◆ CudaMultiHeadAttentionOp() [1/2]

template<typename TInput = float, typename TOutput = TInput>

Mila::Dnn::Compute::CudaMultiHeadAttentionOp< TInput, TOutput >::CudaMultiHeadAttentionOp ( const MultiHeadAttentionConfig & config )

inline

Constructs a new CUDA Multi-Head Attention operation with the default device context.

Initializes the operation with a CUDA device context (defaults to CUDA:0).

◆ CudaMultiHeadAttentionOp() [2/2]

template<typename TInput = float, typename TOutput = TInput>

Mila::Dnn::Compute::CudaMultiHeadAttentionOp< TInput, TOutput >::CudaMultiHeadAttentionOp	(	std::shared_ptr< DeviceContext >	context,
		const MultiHeadAttentionConfig &	config
	)

inline

Constructs a new CUDA Multi-Head Attention operation with a specific device context.

Parameters

context The device context to use for this operation.

Exceptions

std::runtime_error If the context is not for a CUDA device.

Member Function Documentation

◆ backward()

template<typename TInput = float, typename TOutput = TInput>

void Mila::Dnn::Compute::CudaMultiHeadAttentionOp< TInput, TOutput >::backward	(	const Tensor< TInput, MR > &	input,
		const Tensor< TInput, MR > &	output,
		const Tensor< TInput, MR > &	output_gradient,
		const std::vector< std::shared_ptr< Tensor< TInput, MR > > > &	parameters,
		std::vector< std::shared_ptr< Tensor< TInput, MR > > > &	parameter_gradients,
		Tensor< TInput, MR > &	input_gradient,
		const OperationAttributes &	properties,
		const std::vector< std::shared_ptr< Tensor< TInput, MR > > > &	output_state
	)		const

inline

Performs the backward pass of the Multi-Head Attention operation.

Computes gradients with respect to inputs, weights, and biases.

Parameters

input	Input tensor from the forward pass.
output	Output tensor from the forward pass.
output_gradient	Gradient of the loss with respect to the output.
parameters	Parameters tensor from forward pass [weight, bias].
parameter_gradients	Gradients for parameters [d_weight, d_bias].
input_gradient	Gradient of the loss with respect to the input.
properties	Additional attributes for the operation.
output_state	Cache tensors from forward pass (attention scores and weights).

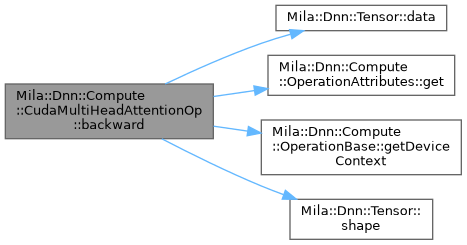

Here is the call graph for this function:

◆ forward()

template<typename TInput = float, typename TOutput = TInput>

void Mila::Dnn::Compute::CudaMultiHeadAttentionOp< TInput, TOutput >::forward	(	const Tensor< TInput, MR > &	input,
		const std::vector< std::shared_ptr< Tensor< TOutput, MR > > > &	parameters,
		const OperationAttributes &	properties,
		Tensor< TOutput, MR > &	output,
		std::vector< std::shared_ptr< Tensor< TOutput, MR > > > &	output_state
	)		const

inlineoverride

Performs the forward pass of the Multi-Head Attention operation on CUDA.

Computes attention scores, applies softmax to get attention weights, and uses these weights to compute a weighted sum of value vectors. This process is performed in parallel for multiple attention heads, then outputs are concatenated and projected.

The computation is performed on the GPU using CUDA kernels for optimal performance.

Parameters

input	Input tensor of shape [B, TDataType, C] containing the input sequence, where B is batch size, TDataType is sequence length, and C is the input feature dimension.
parameters	Vector of parameter tensors [weight, bias], where weight contains the query, key, value projections and output projection, and bias contains the corresponding biases.
properties	Additional attributes for the operation, such as number of attention heads.
output	Output tensor of shape [B, TDataType, OC] containing the attention output, where OC is the output feature dimension.
output_state	Intermediate results like attention scores and weights for potential use in backward pass or visualization.

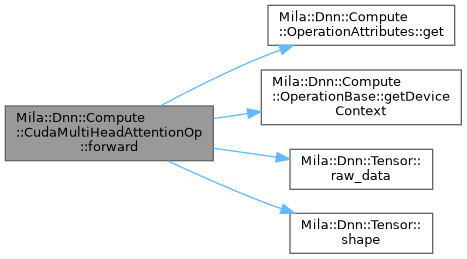

Here is the call graph for this function:

◆ getName()

template<typename TInput = float, typename TOutput = TInput>

std::string Mila::Dnn::Compute::CudaMultiHeadAttentionOp< TInput, TOutput >::getName ( ) const

inlineoverridevirtual

Gets the name of this operation.

Returns: std::string The name of the operation ("Cuda::MultiHeadAttentionOp").

Implements Mila::Dnn::Compute::OperationBase< TDeviceType, TInput1, TInput2, TOutput >.

Member Data Documentation

◆ config_

template<typename TInput = float, typename TOutput = TInput>

MultiHeadAttentionConfig Mila::Dnn::Compute::CudaMultiHeadAttentionOp< TInput, TOutput >::config_

private

Configuration for the MHA operation.

The documentation for this class was generated from the following file:

/home/runner/work/Mila/Mila/Mila/Src/Dnn/Compute/Operations/Cuda/CudaMultiHeadAttentionOp.ixx
