A class representing a neural network model. More...

Inheritance diagram for Mila::Dnn::Model< TDeviceType, TInput, TOutput >:

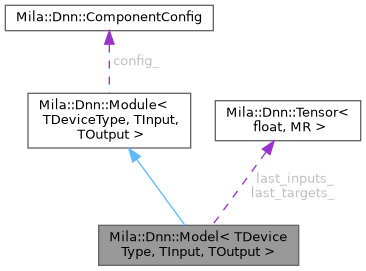

Collaboration diagram for Mila::Dnn::Model< TDeviceType, TInput, TOutput >:

[legend]

Public Types
using	ModuleBase = Module< TDeviceType, TInput, TOutput >
	Base class type for the module.

using	MR = std::conditional_t< TDeviceType==DeviceType::Cuda, CudaMemoryResource, CpuMemoryResource >
	Memory resource type.

Public Types inherited from Mila::Dnn::Module< TDeviceType, TInput, TOutput >
using	MR = std::conditional_t< TDeviceType==DeviceType::Cuda, CudaMemoryResource, CpuMemoryResource >

Public Member Functions
	Model ()
	Constructs a new Model object with the default device context.

	Model (const std::string &device_name)
	Constructs a new Model object with a specific device name.

	Model (std::shared_ptr< DeviceContext > context)
	Constructs a new Model object with a specific device context.

	~Model ()
	Destroys the Model object.

virtual void	backward ()
	Performs a backward pass through the model.

void	build ()
	Builds the model.

template<typename TMR >
float	calculateLoss (const Tensor< TOutput, TMR > &targets)
	Calculate the loss for the given targets and current model outputs.

void	captureGraphBegin ()
	Start capturing operations for a CUDA graph.

void	captureGraphEnd ()
	End capturing operations for a CUDA graph.

template<typename TDataLoader >
float	evaluate (TDataLoader &data_loader, bool verbose=false)
	Evaluate the model on a dataset.

void	executeGraph ()
	Execute the captured CUDA graph.

float	forward (const Tensor< TInput, MR > &inputs, const Tensor< TOutput, MR > &targets)
	Performs a forward pass through the model.

Compute::ComputeDevice &	getDevice () const
	Gets the compute device for this model.

cudaStream_t	getStream () const
	Gets the current CUDA stream.

void	loadCheckpoint (const std::string &filename)
	Loads the model's state from a checkpoint file.

size_t	parameters () const
	Calculates the total number of parameters in the model.

template<typename TMR >

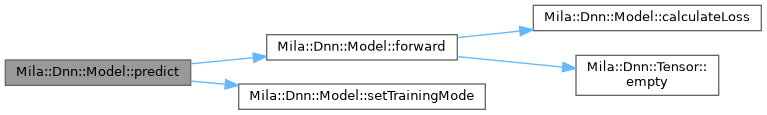

Tensor< TOutput, TMR >	predict (const Tensor< TInput, TMR > &inputs)
	Predict outputs for the given inputs.

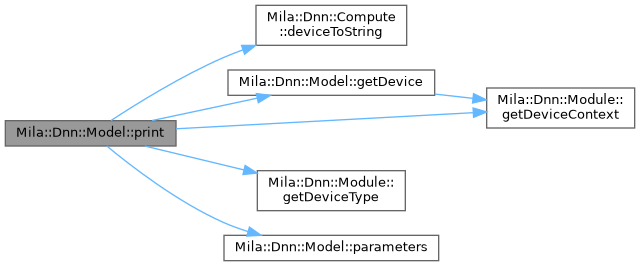

void	print () const
	Prints the model's structure and total number of parameters.

void	saveCheckpoint (const std::string &filename) const
	Saves the model's state to a checkpoint file.

void	setDevice (const std::string &device_name)
	Sets the device to use for this model by name.

void	setDevice (int device_id)
	Sets the device to use for this model by CUDA device ID.

void	setTrainingMode (bool training)
	Sets the training mode for the model.

template<typename TDataLoader >
std::unordered_map< std::string, float >	train (TDataLoader &train_loader, TDataLoader val_loader=nullptr, const TrainingConfig &config={}, const std::vector< ModelCallback< TInput, TOutput > > &callbacks={})
	Train the model using the provided data loader and configuration.

virtual void	updateParameters (float learning_rate, float beta1=0.9f, float beta2=0.999f, float epsilon=1e-8f, float weight_decay=0.0f, size_t step=1)
	Updates the model parameters using the computed gradients.

virtual void	zeroGrads ()
	Zeros out all gradients in the model.

Public Member Functions inherited from Mila::Dnn::Module< TDeviceType, TInput, TOutput >
	Module (const std::string &device_name, const ComponentConfig &config)
	Constructor with device name.

	Module (std::shared_ptr< DeviceContext > context, const ComponentConfig &config)
	Constructor with a specific device context.

virtual	~Module ()=default
	Virtual destructor for proper cleanup in derived classes.

std::shared_ptr< Compute::DeviceContext >	getDeviceContext () const
	Get the device context for this module.

Compute::DeviceType	getDeviceType () const
	Get the device type of the current device context.

std::string	getName () const
	Get the name of the module.

const auto &	getParameterTensors () const
	Get the parameter tensors of this module.

const ComputePrecision::Policy &	getPrecision () const

const auto &	getStateTensors () const
	Get the state tensors of this module.

bool	isTraining () const
	Check if the module is in training mode.

virtual void	load (ModelArchive &archive)=0
	Load the module state from a zip archive.

virtual size_t	parameterCount () const =0
	Get the number of trainable parameters in the module.

virtual void	save (ModelArchive &archive) const =0
	Save the module state to a zip archive.

virtual void	setTraining (bool is_training)
	Set the training mode of this module.

virtual std::string	toString () const =0
	Convert the module to a string representation.

Protected Attributes
Tensor< TInput, MR >	last_inputs_
	The most recent input tensor provided to forward().

Tensor< TOutput, MR >	last_targets_
	The most recent target tensor provided to forward().

Protected Attributes inherited from Mila::Dnn::Module< TDeviceType, TInput, TOutput >
std::unordered_map< std::string, std::shared_ptr< Tensor< TOutput, MR > > >	parameter_map_ = {}
	Map of parameter names to parameter tensors.

std::unordered_map< std::string, std::shared_ptr< Tensor< TOutput, MR > > >	state_map_ = {}
	Map of state names to state tensors.

Private Member Functions

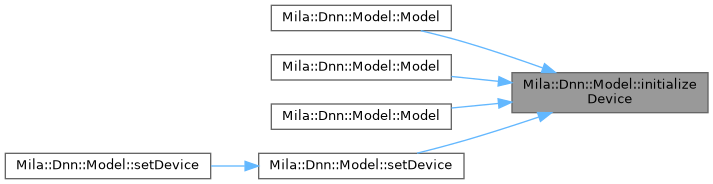

void	initializeDevice ()
	Initializes device-specific resources.

Private Attributes
cudaGraph_t	cuda_graph_ { nullptr }
	CUDA graph for optimized execution.

cudaGraphExec_t	cuda_graph_exec_ { nullptr }
	Executable instance of the CUDA graph.

bool	graph_capture_active_ { false }
	Flag indicating whether CUDA graph capture is active.

bool	graph_initialized_ { false }
	Flag indicating whether CUDA graph has been initialized.

bool	is_built_ { false }
	Indicates whether the model has been built.

bool	is_training_ { false }
	Indicates whether the model is in training mode.

Compute::DeviceType	old_device_type_ { Compute::DeviceType::Cpu }
	Previous device type for cleanup.

cudaStream_t	stream_ { nullptr }
	The CUDA stream for device memory resource.

bool	stream_created_ { false }
	Flag indicating whether we created the stream.

Additional Inherited Members
Protected Member Functions inherited from Mila::Dnn::Module< TDeviceType, TInput, TOutput >
const std::string	parametersToString () const
	Helper method to convert parameters to string representation.

const std::string	stateToString () const
	Helper method to convert state tensors to string representation.

Detailed Description

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>
requires ValidTensorTypes<TInput, TOutput>
class Mila::Dnn::Model< TDeviceType, TInput, TOutput >

A class representing a neural network model.

Template Parameters

TDeviceType	The device type (CPU or CUDA) on which to perform computations.
TInput	The input data type for the model.
TOutput	The output data type for the model, defaults to TInput.

Member Typedef Documentation

◆ ModuleBase

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

using Mila::Dnn::Model< TDeviceType, TInput, TOutput >::ModuleBase = Module<TDeviceType, TInput, TOutput>

Base class type for the module.

◆ MR

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

using Mila::Dnn::Model< TDeviceType, TInput, TOutput >::MR = std::conditional_t<TDeviceType == DeviceType::Cuda, CudaMemoryResource, CpuMemoryResource>

Memory resource type.

Constructor & Destructor Documentation

◆ Model() [1/3]

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

Mila::Dnn::Model< TDeviceType, TInput, TOutput >::Model ( )

inline

Constructs a new Model object with the default device context.

Here is the call graph for this function:

◆ Model() [2/3]

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

Mila::Dnn::Model< TDeviceType, TInput, TOutput >::Model ( std::shared_ptr< DeviceContext > context )

inline

Constructs a new Model object with a specific device context.

Parameters

context The device context to use for this model.

Here is the call graph for this function:

◆ Model() [3/3]

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

Mila::Dnn::Model< TDeviceType, TInput, TOutput >::Model ( const std::string & device_name )

inline

Constructs a new Model object with a specific device name.

Parameters

device_name The name of the device to use (e.g., "CUDA:0", "CPU").

Here is the call graph for this function:

◆ ~Model()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

Mila::Dnn::Model< TDeviceType, TInput, TOutput >::~Model ( )

inline

Destroys the Model object.

Cleans up resources such as CUDA streams.

Here is the call graph for this function:

Member Function Documentation

◆ backward()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

virtual void Mila::Dnn::Model< TDeviceType, TInput, TOutput >::backward ( )

inlinevirtual

Performs a backward pass through the model.

Exceptions

std::runtime_error if the model has not been built or if forward was not called with targets.

Here is the call graph for this function:

◆ build()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

void Mila::Dnn::Model< TDeviceType, TInput, TOutput >::build ( )

inline

Builds the model.

Sets the training mode for all modules and performs any necessary graph validation or optimizations.

Exceptions

std::runtime_error if the model has already been built.

◆ calculateLoss()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

template<typename TMR >

float Mila::Dnn::Model< TDeviceType, TInput, TOutput >::calculateLoss ( const Tensor< TOutput, TMR > & targets )

inline

Calculate the loss for the given targets and current model outputs.

Parameters

targets The target tensor.

Returns: The loss value.

Here is the caller graph for this function:

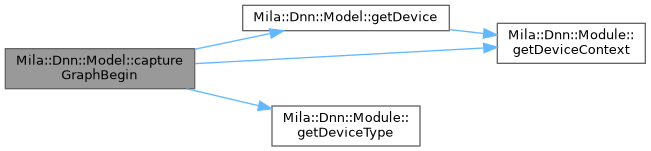

◆ captureGraphBegin()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

void Mila::Dnn::Model< TDeviceType, TInput, TOutput >::captureGraphBegin ( )

inline

Start capturing operations for a CUDA graph.

This begins recording operations to a CUDA graph for later replay. Only applicable for CUDA devices.

Here is the call graph for this function:

◆ captureGraphEnd()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

void Mila::Dnn::Model< TDeviceType, TInput, TOutput >::captureGraphEnd ( )

inline

End capturing operations for a CUDA graph.

This finalizes the CUDA graph and prepares it for execution. Only applicable for CUDA devices.

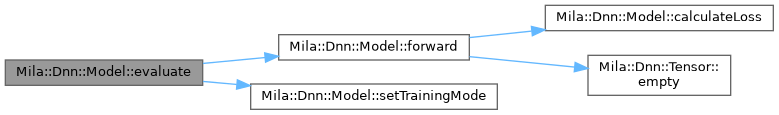

◆ evaluate()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

template<typename TDataLoader >

float Mila::Dnn::Model< TDeviceType, TInput, TOutput >::evaluate	(	TDataLoader &	data_loader,
		bool	verbose = `false`
	)

inline

Evaluate the model on a dataset.

Parameters

data_loader	The data loader for evaluation data.
verbose	Whether to print evaluation progress.

Returns: The average loss on the evaluation dataset.

Here is the call graph for this function:

◆ executeGraph()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

void Mila::Dnn::Model< TDeviceType, TInput, TOutput >::executeGraph ( )

inline

Execute the captured CUDA graph.

Replays the previously captured operations for fast execution. Only applicable for CUDA devices with a previously captured graph.

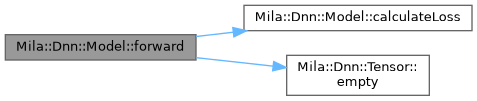

◆ forward()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

float Mila::Dnn::Model< TDeviceType, TInput, TOutput >::forward	(	const Tensor< TInput, MR > &	inputs,
		const Tensor< TOutput, MR > &	targets
	)

inline

Performs a forward pass through the model.

Parameters

inputs	The input tensor.
targets	Optional target tensor for loss calculation.

Exceptions

std::runtime_error if the model has not been built.

Returns: The loss value if targets are provided, otherwise -1.0.

Here is the call graph for this function:

Here is the caller graph for this function:

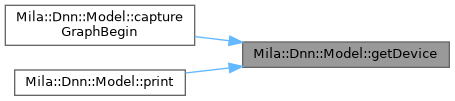

◆ getDevice()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

Compute::ComputeDevice & Mila::Dnn::Model< TDeviceType, TInput, TOutput >::getDevice ( ) const

inline

Gets the compute device for this model.

Returns: Reference to the model's compute device.

Here is the call graph for this function:

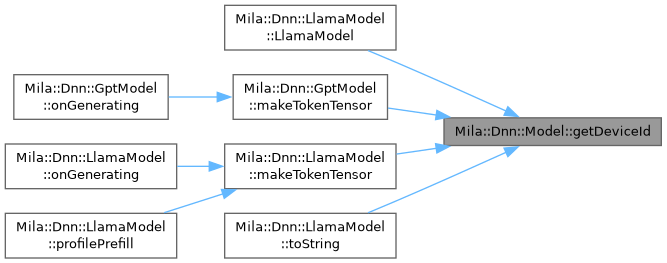

Here is the caller graph for this function:

◆ getStream()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

cudaStream_t Mila::Dnn::Model< TDeviceType, TInput, TOutput >::getStream ( ) const

inline

Gets the current CUDA stream.

Returns: The CUDA stream used by this model.

◆ initializeDevice()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

void Mila::Dnn::Model< TDeviceType, TInput, TOutput >::initializeDevice ( )

inlineprivate

Initializes device-specific resources.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ loadCheckpoint()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

void Mila::Dnn::Model< TDeviceType, TInput, TOutput >::loadCheckpoint ( const std::string & filename )

inline

Loads the model's state from a checkpoint file.

Parameters

filename The path to the checkpoint file to load.

◆ parameters()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

size_t Mila::Dnn::Model< TDeviceType, TInput, TOutput >::parameters ( ) const

inline

Calculates the total number of parameters in the model.

Returns: size_t The total number of parameters.

Here is the caller graph for this function:

◆ predict()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

template<typename TMR >

Tensor< TOutput, TMR > Mila::Dnn::Model< TDeviceType, TInput, TOutput >::predict ( const Tensor< TInput, TMR > & inputs )

inline

Predict outputs for the given inputs.

Parameters

inputs The input tensor.

Returns: The output tensor.

Here is the call graph for this function:

◆ print()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

void Mila::Dnn::Model< TDeviceType, TInput, TOutput >::print ( ) const

inline

Prints the model's structure and total number of parameters.

Here is the call graph for this function:

◆ saveCheckpoint()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

void Mila::Dnn::Model< TDeviceType, TInput, TOutput >::saveCheckpoint ( const std::string & filename ) const

inline

Saves the model's state to a checkpoint file.

Parameters

filename The path where the checkpoint will be saved.

◆ setDevice() [1/2]

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

void Mila::Dnn::Model< TDeviceType, TInput, TOutput >::setDevice ( const std::string & device_name )

inline

Sets the device to use for this model by name.

Parameters

device_name The name of the device to use (e.g., "CUDA:0", "CPU").

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setDevice() [2/2]

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

void Mila::Dnn::Model< TDeviceType, TInput, TOutput >::setDevice ( int device_id )

inline

Sets the device to use for this model by CUDA device ID.

Parameters

device_id The ID of the CUDA device to use.

Here is the call graph for this function:

◆ setTrainingMode()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

void Mila::Dnn::Model< TDeviceType, TInput, TOutput >::setTrainingMode ( bool training )

inline

Sets the training mode for the model.

Parameters

training The training mode to set.

Here is the caller graph for this function:

◆ train()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

template<typename TDataLoader >

std::unordered_map< std::string, float > Mila::Dnn::Model< TDeviceType, TInput, TOutput >::train	(	TDataLoader &	train_loader,
		TDataLoader *	val_loader = `nullptr`,
		const TrainingConfig &	config = `{}`,
		const std::vector< ModelCallback< TInput, TOutput > * > &	callbacks = `{}`
	)

inline

Train the model using the provided data loader and configuration.

Parameters

train_loader	The data loader for training data.
val_loader	Optional data loader for validation data.
config	Training configuration parameters.
callbacks	Optional list of callbacks to be invoked during training.

Returns: A map of final training metrics.

◆ updateParameters()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

virtual void Mila::Dnn::Model< TDeviceType, TInput, TOutput >::updateParameters	(	float	learning_rate,
		float	beta1 = `0.9f`,
		float	beta2 = `0.999f`,
		float	epsilon = `1e-8f`,
		float	weight_decay = `0.0f`,
		size_t	step = `1`
	)

inlinevirtual

Updates the model parameters using the computed gradients.

Parameters

learning_rate	The learning rate for the update.
beta1	Beta1 parameter for Adam optimizer.
beta2	Beta2 parameter for Adam optimizer.
epsilon	Epsilon parameter for Adam optimizer.
weight_decay	Weight decay parameter for regularization.
step	Current optimization step for Adam.

◆ zeroGrads()

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

virtual void Mila::Dnn::Model< TDeviceType, TInput, TOutput >::zeroGrads ( )

inlinevirtual

Zeros out all gradients in the model.

Member Data Documentation

◆ cuda_graph_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

cudaGraph_t Mila::Dnn::Model< TDeviceType, TInput, TOutput >::cuda_graph_ { nullptr }

private

CUDA graph for optimized execution.

◆ cuda_graph_exec_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

cudaGraphExec_t Mila::Dnn::Model< TDeviceType, TInput, TOutput >::cuda_graph_exec_ { nullptr }

private

Executable instance of the CUDA graph.

◆ graph_capture_active_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

bool Mila::Dnn::Model< TDeviceType, TInput, TOutput >::graph_capture_active_ { false }

private

Flag indicating whether CUDA graph capture is active.

◆ graph_initialized_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

bool Mila::Dnn::Model< TDeviceType, TInput, TOutput >::graph_initialized_ { false }

private

Flag indicating whether CUDA graph has been initialized.

◆ is_built_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

bool Mila::Dnn::Model< TDeviceType, TInput, TOutput >::is_built_ { false }

private

Indicates whether the model has been built.

◆ is_training_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

bool Mila::Dnn::Model< TDeviceType, TInput, TOutput >::is_training_ { false }

private

Indicates whether the model is in training mode.

◆ last_inputs_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

Tensor<TInput, MR> Mila::Dnn::Model< TDeviceType, TInput, TOutput >::last_inputs_

protected

The most recent input tensor provided to forward().

◆ last_targets_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

Tensor<TOutput, MR> Mila::Dnn::Model< TDeviceType, TInput, TOutput >::last_targets_

protected

The most recent target tensor provided to forward().

◆ old_device_type_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

Compute::DeviceType Mila::Dnn::Model< TDeviceType, TInput, TOutput >::old_device_type_ { Compute::DeviceType::Cpu }

private

Previous device type for cleanup.

◆ stream_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

cudaStream_t Mila::Dnn::Model< TDeviceType, TInput, TOutput >::stream_ { nullptr }

private

The CUDA stream for device memory resource.

◆ stream_created_

template<DeviceType TDeviceType = DeviceType::Cuda, typename TInput = float, typename TOutput = TInput>

bool Mila::Dnn::Model< TDeviceType, TInput, TOutput >::stream_created_ { false }

private

Flag indicating whether we created the stream.

The documentation for this class was generated from the following file:

/home/runner/work/Mila/Mila/Mila/Src/Dnn/Models/Model.ixx

Public Types

Public Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ModuleBase

◆ MR

Constructor & Destructor Documentation

◆ Model() [1/3]

◆ Model() [2/3]

◆ Model() [3/3]

◆ ~Model()

Member Function Documentation

◆ backward()

◆ build()

◆ calculateLoss()

◆ captureGraphBegin()

◆ captureGraphEnd()

◆ evaluate()

◆ executeGraph()

◆ forward()

◆ getDevice()

◆ getStream()

◆ initializeDevice()

◆ loadCheckpoint()

◆ parameters()

◆ predict()

◆ print()

◆ saveCheckpoint()

◆ setDevice() [1/2]

◆ setDevice() [2/2]

◆ setTrainingMode()

◆ train()

◆ updateParameters()

◆ zeroGrads()

Member Data Documentation

◆ cuda_graph_

◆ cuda_graph_exec_

◆ graph_capture_active_

◆ graph_initialized_

◆ is_built_

◆ is_training_

◆ last_inputs_

◆ last_targets_

◆ old_device_type_

◆ stream_

◆ stream_created_
